10 Set up the output Format For BIP Reports
The following section details the steps to set up the output format for BIP reports.
10.1 Setting up the output Format For BIP Reports
- Go to catalog and select the desired report (XDO). Press
Edit.

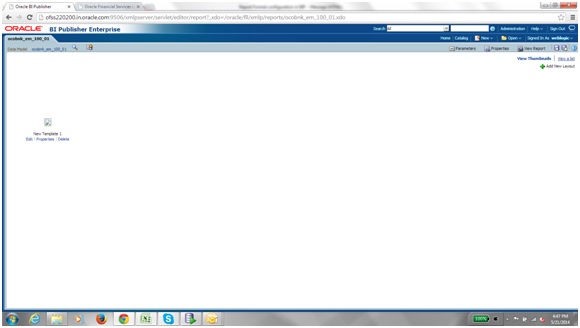

Figure 10-1 Setting up the output Format 1
- On Edit it will open the following page. On right corner
there is View a List link , click on it.
Figure 10-2 Setting up the output Format 2
- It will open the Layout format, click on the Output
Formats dropdown. Select the following formats HTML, PDF, RTF,
EXCEL (.xlsx).
Figure 10-3 Setting up the output Format 3
- And in the end of drop down select DATA(XML) and DATA(CSV).
Figure 10-4 Setting up the output Format 4
- Also please select the Default Format as PDF
Figure 10-5 Setting up the output Format 5
- Once Output Format is done, I would recommend to make the Caching
False for online reports as follows. On Right side,
Click on the Properties Button.
Figure 10-6 Setting up the output Format 6
- Select the TAB Caching, check if any of the caching is selected.
Figure 10-7 Setting up the output Format 7
- Unchecked all the caching if any of them are checked, By Default Document
Caching is always true, make it false.
Figure 10-8 Setting up the output Format 8
- Save the changes.
Figure 10-9 Setting up the output Format 9
