8.5 Create Credentials and System Policies

In order Configure MDB flow, you need to create credentials and system policies. The credentials are accessed through CSF framework which is managed by Oracle Weblogic Server. The keys are managed by Maps and Maps need to be given with Permissions.

Parent topic: Configure JMS Queue

8.5.1 Create Credentials and System Policies

Follow the below steps to create credentials and system policies.
  1. Login to Oracle Enterprise Manager (http://hostname:port/em).
  2. On the left panel, right click on OFSLLREL_domain and select Security > System Policies > Credentials.
    The following window is displayed.

    Figure 8-69 Credentials page


    Description of Figure 8-69 follows
    Description of "Figure 8-69 Credentials page"

  3. Click Create Map.
    The following window is displayed.

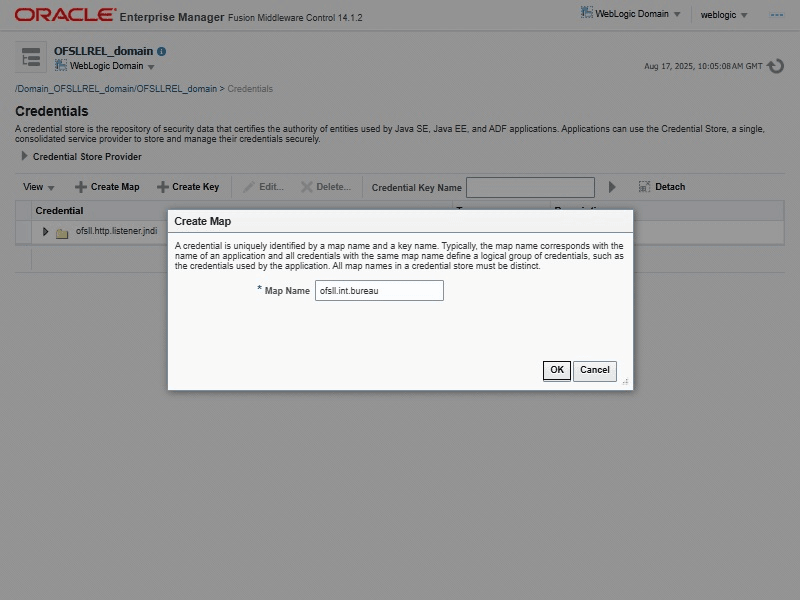

    Figure 8-70 Create Map


    Description of Figure 8-70 follows
    Description of "Figure 8-70 Create Map"

  4. Enter Map Name as ofsll.int.bureau and click OK.
  5. Click Create Key.
    The following window is displayed.

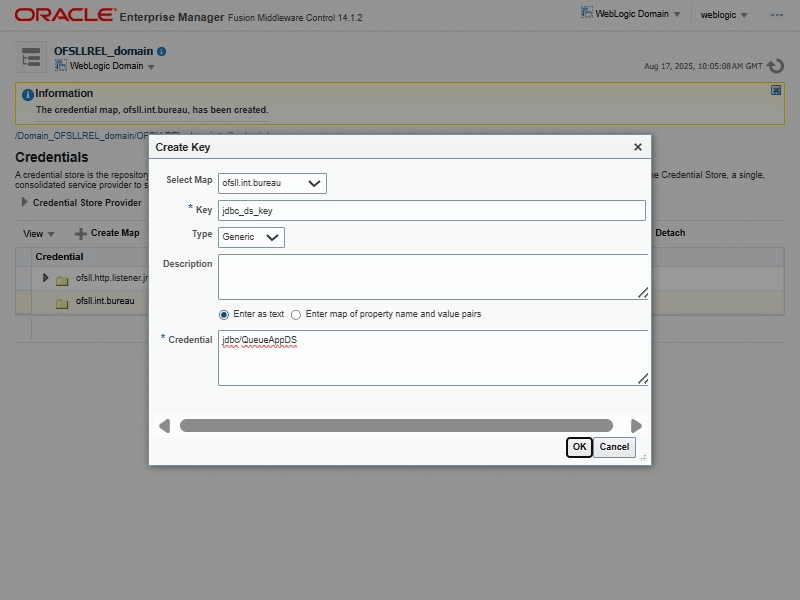

    Figure 8-71 Create Key


    Description of Figure 8-71 follows
    Description of "Figure 8-71 Create Key"

  6. Specify the following details:
    • Select Map as ofsll.int.bureau from the drop down list.
    • Specify Key as jdbc_ds_key
    • Select Type as Generic from the drop down list.
    • Specify the Credential as jdbc/QueueAppDS
  7. Click OK.
  8. Similarly you need to create the following Maps and corresponding keys as indicated in following table.

    Table 8-1 Maps and corresponding keys

    Maps Keys Description
    ofsll.int.bureau - This map is used to setup keys for all credit bureau interfaces
    ofsll.int.bureau ProxyServer Name of the proxyServer to be configured
    ofsll.int.bureau ProxyPort Port to which ProxyServer is running.
    ofsll.int.bureau ExpEcalsURL The Experian Connection URL to be configured.
    ofsll.int.bureau ExpDirectExperianEnabled If you set value as true, then you would be setting ecals response URL. Else, the Ecals request URL
    ofsll.int.bureau ExpCertPath The location of .jks file which contains the valid certificate for Experian Credit Bureau.
    ofsll.int.bureau ExpBusUserNamePassword Login Credentials to be configured for Experian Business reports.
    ofsll.int.bureau ExpConUserNamePassword Login Credentials to be configured for Experian Consumer reports.
    ofsll.int.bureau EfxURL The Equifax Connection URL to be configured.
    ofsll.int.bureau EfxCertPath The location of .jks file which contains the valid certificate for Equifax Credit Bureau.
    ofsll.int.bureau EfxUserNamePassword Login credentials to be configured for accessing Equifax Reports.
    ofsll.int.bureau TucCertPath The location of .jks file which contains valid certificate for Transunion Bureau .
    ofsll.int.bureau TucCertPassword The password that requires to read the valid .jkscertificate for the Transunion Bureau.
    ofsll.int.bureau TucUserNamePassword Login credentials to be configured for accessing Transunion reports
    ofsll.int.bureau TucConnectionURL The Transunion URL to be configured.
    ofsll.int.bureau jdbc_ds_key Datasource configured to retrieve data for bureau.
    ofsll.int.bureau source Configured as EXTERNAL for actual call.
    ofsll.int.outbound - This map is used to setup keys for the RouteOne and Dealer track call back from OFSLL.
    ofsll.int.outbound roUserNamePassword Login Credentials used at the time of call back from OFSLL to RouteOne Interface.
    ofsll.int.outbound dtUsernamePassword Login Credentials used at the time of Call back from OFSLL to Dealer Track Interface.
    ofsll.int.outbound jdbc_ds_key Datasource configured to retrieve data for outbound Resources.
    ofsll.int.outbound roPostDealerUsernamePasswd Credentials required to upload the dealer details to Route One Portal
    ofsll.int.outbound roPostDealerWbsURL Route One Post Dealer Web Service url
    ofsll.int.outbound roDealerUploadURL Route One URL to upload the Dealer details
    ofsll.int.outbound dtPostDealerUsernamePasswd Credentials required to upload the dealer details to Dealer Track Portal
    ofsll.int.outbound dtPostDealerWbsURL Dealer Track Post Dealer Web Service url
    ofsll.int.outbound dtDealerUploadURL Dealer Track URL to upload the Dealer details
    ofsll.int.outbound VertexUserNamePd Credentials required to connect to VERTEX web service
    ofsll.int.outbound VertexTrustedId ID required to connect to VERTEX web service
    ofsll.int.outbound TorqueItsUserNamePassword Credentials required to connect to TorqueIts web service
    ofsll.int.outbound TorqueItsURL TorqueIts Decision service URL
    ofsll.int.outbound ProxyHost Name of the proxyServer to be configured.
    ofsll.int.outbound ProxyPort Port to which ProxyServer is running.
    ofsll.int.bip - This Map is used to setup all the Keys required to setup interface with BIP to generate reports.
    ofsll.int.bip local_top_dir Define the path of the local BIP server where you would like place the generated BIP reports.
    ofsll.int.bip email_from_addr Define the From Email address to be used while sending email for the generated BIP reports.
    ofsll.int.bip emailBodyContentPath

    The path for file.propertiesfile that contains the content of the subject and body required while sending letter, report or correspondence as mail to the applicant or producer.

    For example; /tmp/file.properties

    *Refer to note below for details on file.propertiesfile creation for email configuration.

    ofsll.int.bip fax_server Configure the name of Fax server to be used to fax the generated BIP reports.
    ofsll.int.bip jdbc_ds_key Datasource configured to retrieve data for BIP.
    ofsll.int.filetransfer - This map is used to setup keys for all credit bureau interfaces
    ofsll.int.filetransfer sftp_key Credentials to login to SFTP server(Username/Password)
    ofsll.int.filetransfer sftp_top_dir Top root directory for SFFTP server
    ofsll.int.filetransfer sftp_servers SFTP server names
    ofsll.int.security bip_key This is BIP login credentials
    ofsll.int.gri GriURL GRI web service URL to be configured.
    ofsll.int.gri GriAPIKey GRI API key to be configured
    ofsll.int.gri ProxySet

    System Level Proxy Enabled/Disabled. Value can be either true or false.

    True= proxy required

    False = proxy not required
    ofsll.int.gri ProxyHost

    Name of the proxyServer to be configured.

    Set only if ProxySet =true.
    ofsll.int.gri ProxyPort

    Port on which ProxyServer is running.

    Set only if ProxySet =true.
    ofsll.int.gri jdbc_ds_key Datasource configured to retrieve the request XML for GRI.
    ofsll.int.gri GriCertPath

    The location of .jks file which contains the valid certificate for GRI.

    Configure only when a valid certificate is available.
    ofsll.int.common - This map is used to setup keys for common JMS Queue
    ofsll.int.common OfsllJMSQueueJNDI The JMS queue JNDI name to be configured
    ofsll.int.common OfsllJMSQueueCF The JMS queue connection factory to be configured
    ofsll.int.common OfsllJMSServerURL

    The JMS server url to be configured.

    Ex: t3://<JMS server host>:<JMS server port>
    ofsll.int.common outbound_jms_queue_con_factory

    The JMS connection factory to be configured.

    jms/OfsllOutboundCF
    ofsll.int.common outbound_jms_queue

    The JMS queue to be configured.

    jms/OfsllOutboundQueue
    ofsll.int.common weblogic_cluster_ind This is to be configured based on the environment i.e. for weblogic cluster environment set it as Y. Else, set it to N.
    ofsll.int.common outbound_jms_queue_provider_url

    The JMS server url to be configured.

    Ex: For non clustered environment - t3://<JMS server host>:<JMS server port>

    Ex: For clustered environment - t3://<JMS server host>:<JMS server port>,<JMS server host>:<JMS server port>
    ofsll.int.webhook jdbc_ds_key Datasource configured to retrieve data for Webhook.

    * A new file(file.properties) needs to be created and copied to the application server in the same path as mentioned in the value corresponding to the key emailBodyContentPath under the map ofsll.int.bip. The file should have the following contents:

    • letter_subject='Text that is configurable and would be the subject of the mail'
    • letter_body='Text that is configurable and would be the body of the mail'
    • correspondence_subject='Text that is configurable and would be the subject of the mail'
    • correspondence_body='Text that is configurable and would be the body of the mail'
    • report_subject='Text that is configurable and would be the subject of the mail'
    • report_body='Text that is configurable and would be the body of the mail'
  9. On the left panel, right click on OFSLLREL_domain and select Security > System Policies.
    The following window is displayed.

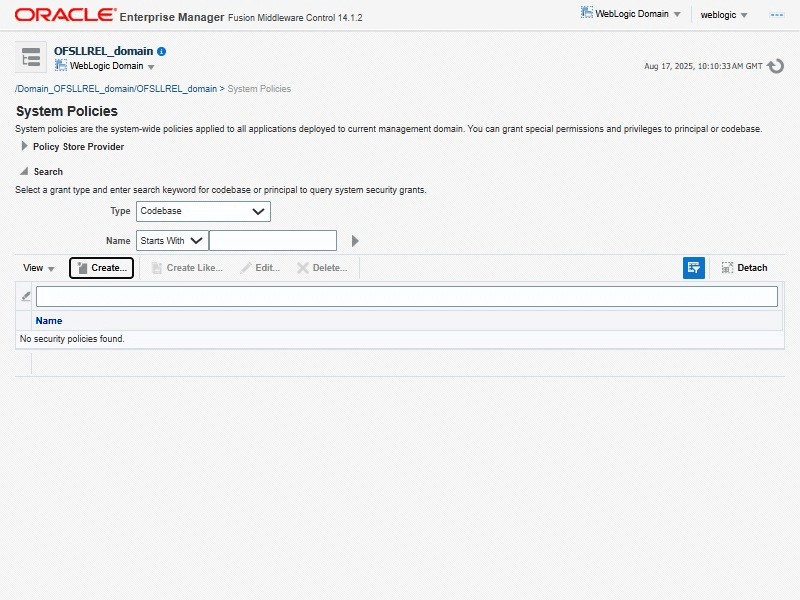

    Figure 8-72 System Policies


    Description of Figure 8-72 follows
    Description of "Figure 8-72 System Policies"

  10. Click Create.
    The following window is displayed.

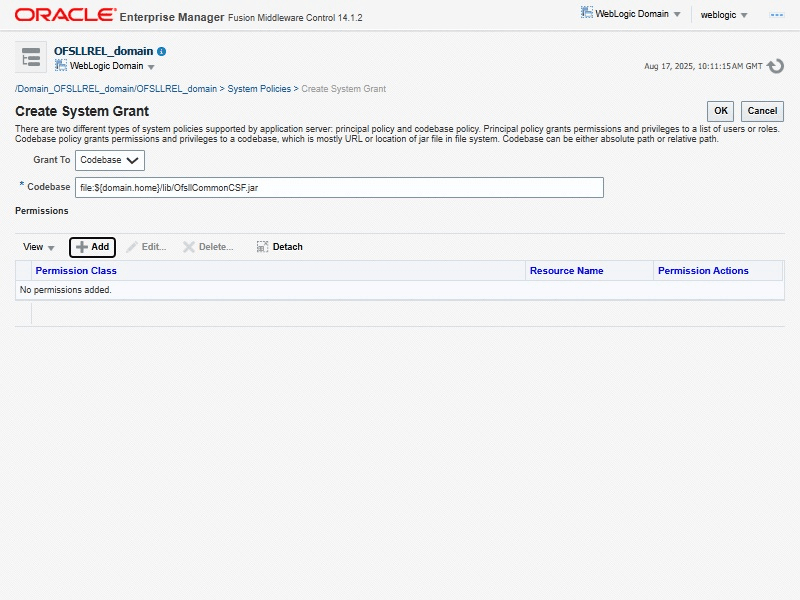

    Figure 8-73 Create System Grant


    Description of Figure 8-73 follows
    Description of "Figure 8-73 Create System Grant"

  11. Enter the codebase as file:${domain.home}/lib/OfsllCommonCSF.jar.
  12. Click Add.
    The following window is displayed.

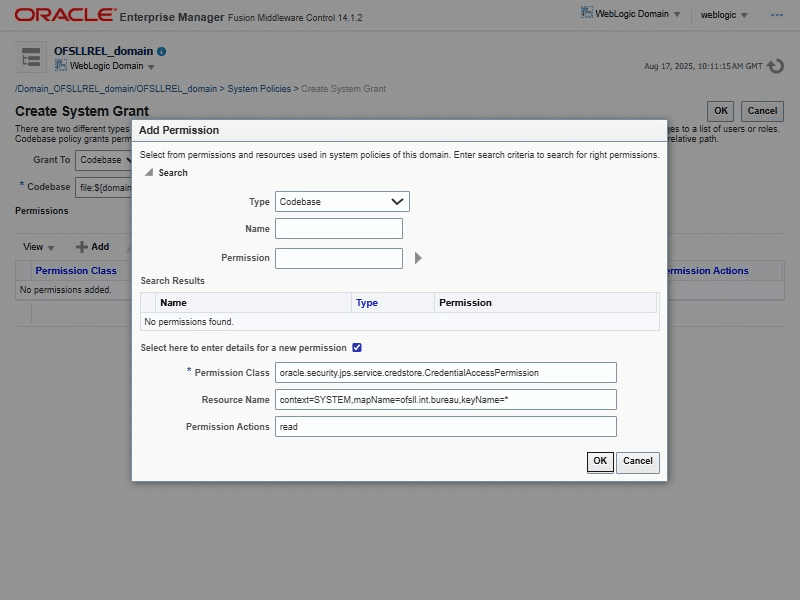

    Figure 8-74 Add permission


    Description of Figure 8-74 follows
    Description of "Figure 8-74 Add permission"

  13. Select the check box Select here to enter details for a new permission.
  14. Specify the following details as the first permission class.

    Table 8-2 Permission Class

    Permission Class Resource Name Permission Actions
    oracle.security.jps.service.credstore.CredentialAccessPermission context=SYSTEM,mapName=ofsll.int.bureau,keyName=* read
    oracle.security.jps.service.credstore.CredentialAccessPermission context=SYSTEM,mapName=ofsll.int.filetransfer,keyName=* read
    oracle.security.jps.service.credstore.CredentialAccessPermission context=SYSTEM,mapName=ofsll.int.outbound,keyName=* read
    oracle.security.jps.service.credstore.CredentialAccessPermission context=SYSTEM,mapName=ofsll.int.bip,keyName=* read
    oracle.security.jps.service.credstore.CredentialAccessPermission context=SYSTEM,mapName=ofsll.int.gri,keyName=* read
    oracle.security.jps.service.credstore.CredentialAccessPermission context=SYSTEM,mapName=ofsll.int.common,keyName=* read
    oracle.security.jps.service.credstore.CredentialAccessPermission context=SYSTEM,mapName=ofsll.http.listener.jndi,keyName=* read
    oracle.security.jps.service.credstore.CredentialAccessPermission context=SYSTEM,mapName=ofsll.int.webhook,keyName=* read, write, update
    oracle.security.jps.service.keystore.KeyStoreAccessPermission stripeName=OFSLL_STRIPE,keystoreName=OFSLL_KSS,alias=* read
  15. Click OK.

Parent topic: Create Credentials and System Policies
