8.3.6 Create JMS Queue for Outbound Queue

Follow the below steps to create JMS Queue for outbound queue.
  1. Click Create.
    The following window is displayed.

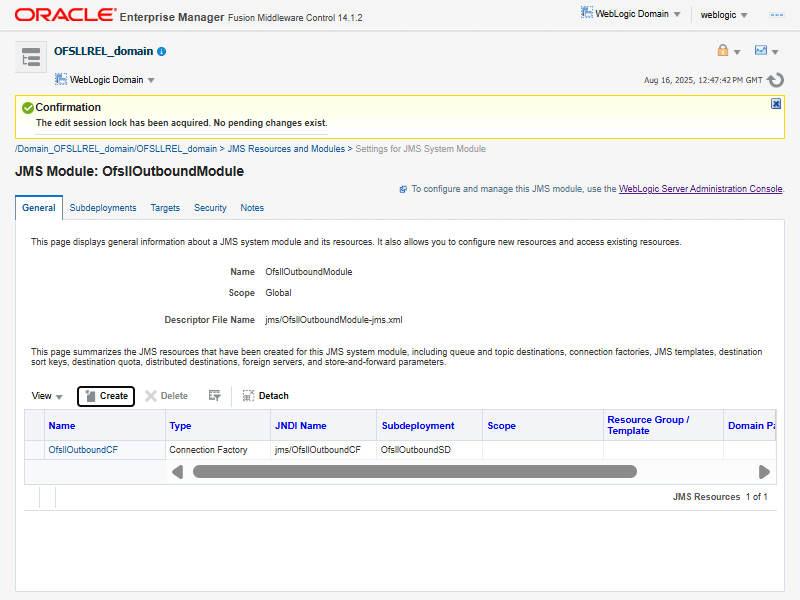

    Figure 8-54 General


    Description of Figure 8-54 follows
    Description of "Figure 8-54 General"

  2. Select the Uniform Distributed Queue option and click Next.
    The following window is displayed.

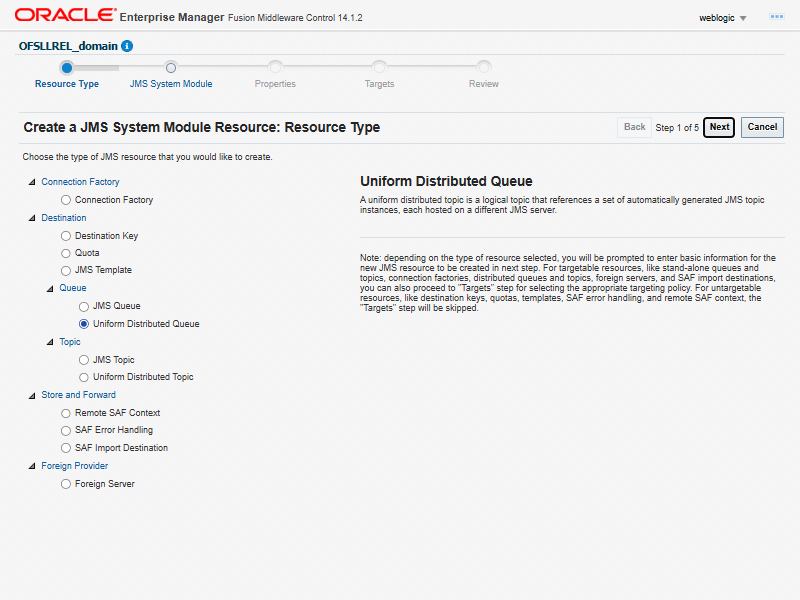

    Figure 8-55 Resource Type


    Description of Figure 8-55 follows
    Description of "Figure 8-55 Resource Type"

  3. Click Next.
    The following window is displayed.

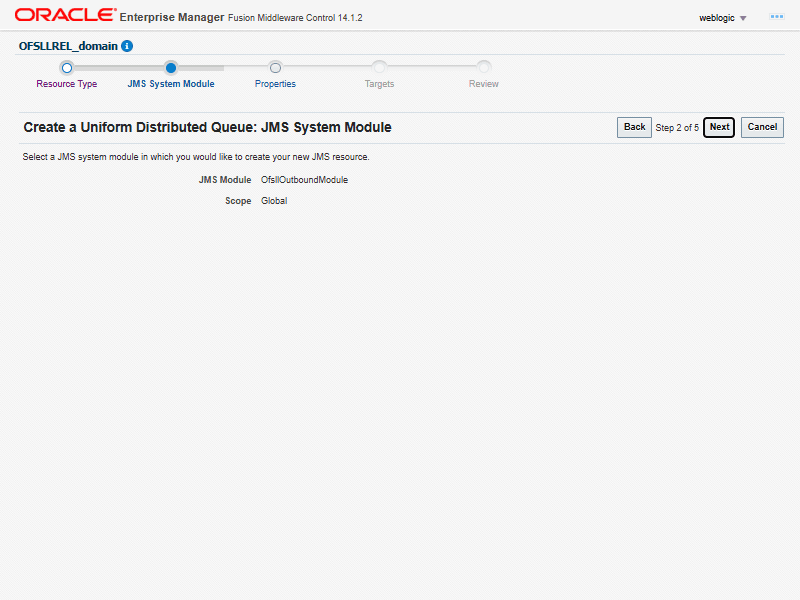

    Figure 8-56 JMS System Module


    Description of Figure 8-56 follows
    Description of "Figure 8-56 JMS System Module"

  4. Specify the following details while creating new JMS System Module Resources:
    • Enter the Name of the Queue as OfsllOutboundQueue.
    • Enter the JNDI Name as jms/OfsllOutboundQueue.
    • Select the Template as None.
    • Click Next.

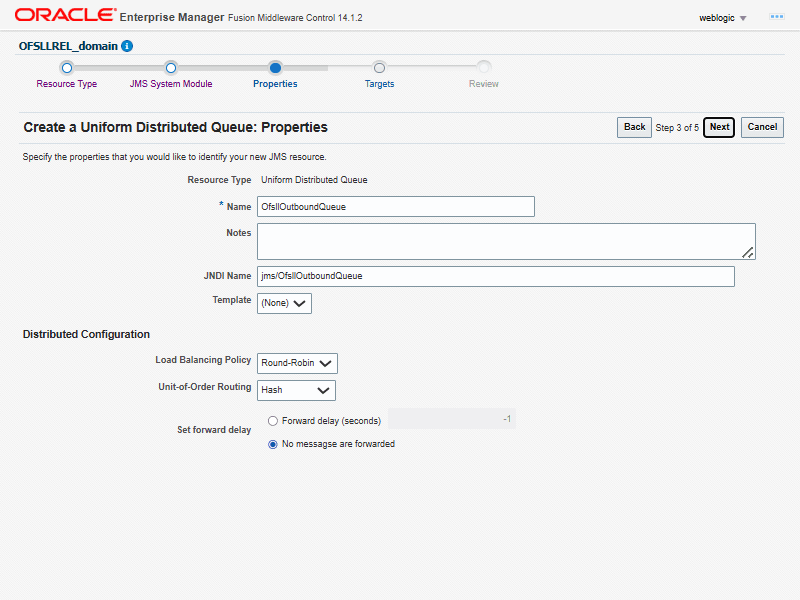

    Figure 8-57 Properties


    Description of Figure 8-57 follows
    Description of "Figure 8-57 Properties"

  5. Select Subdeployment Targeting.
    • Select the Subdeployments as OfsllOutboundSD from the drop-down list.
    • Click Next.

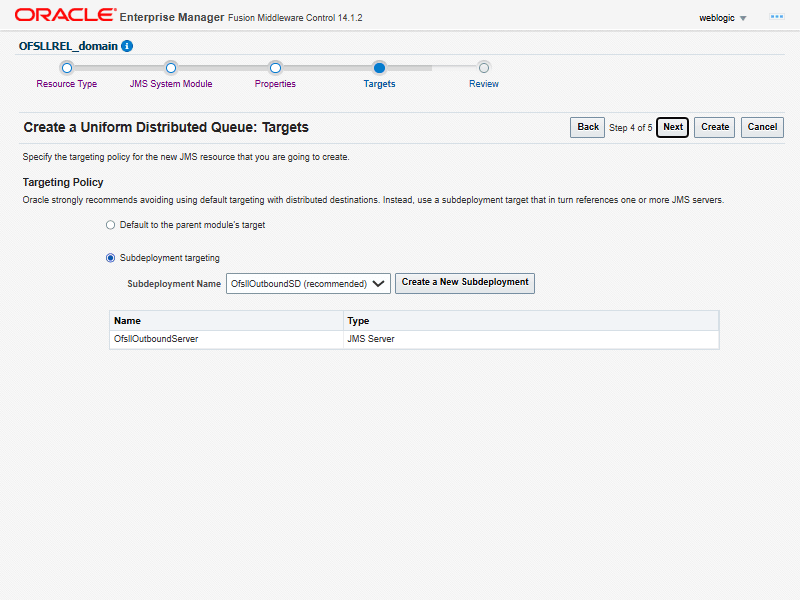

    Figure 8-58


    Description of Figure 8-58 follows
    Description of "Figure 8-58 "

  6. Click Create.
    The following window is displayed.

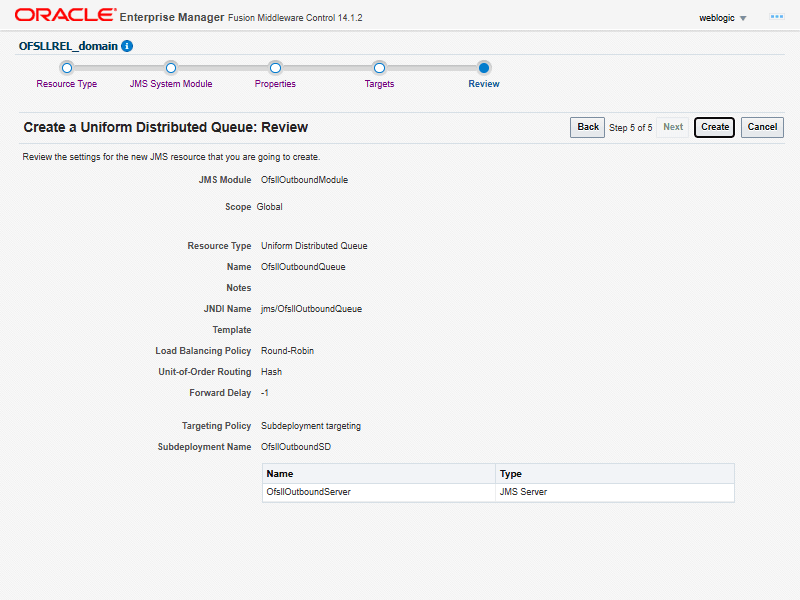

    Figure 8-59 Review


    Description of Figure 8-59 follows
    Description of "Figure 8-59 Review"

  7. Navigate to Activate Changes.
    The following window is displayed.

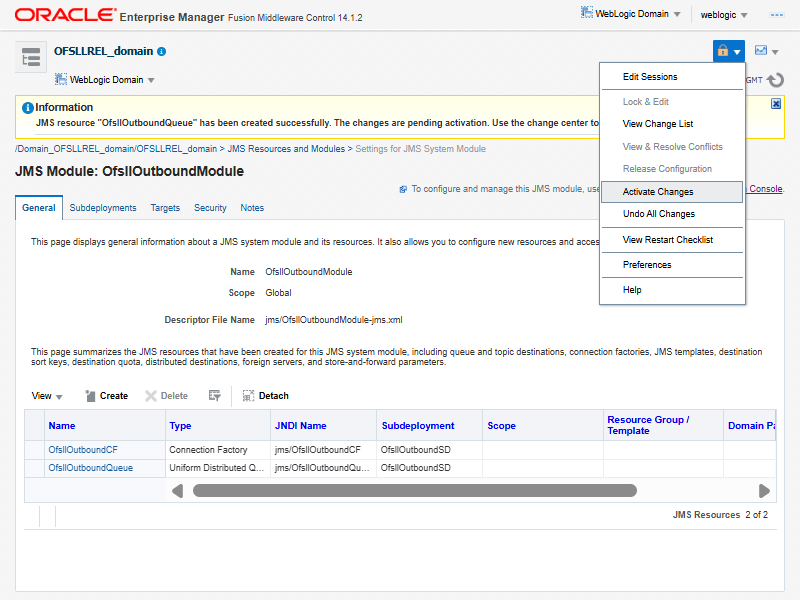

    Figure 8-60 Activate Changes


    Description of Figure 8-60 follows
    Description of "Figure 8-60 Activate Changes"
