8.3.5 Create JMS Connection Factory for Outbound Queue

Follow the below steps to create JMS connection factory for outbound queue.
  1. Navigate to General and click Create.
    The following window is displayed.

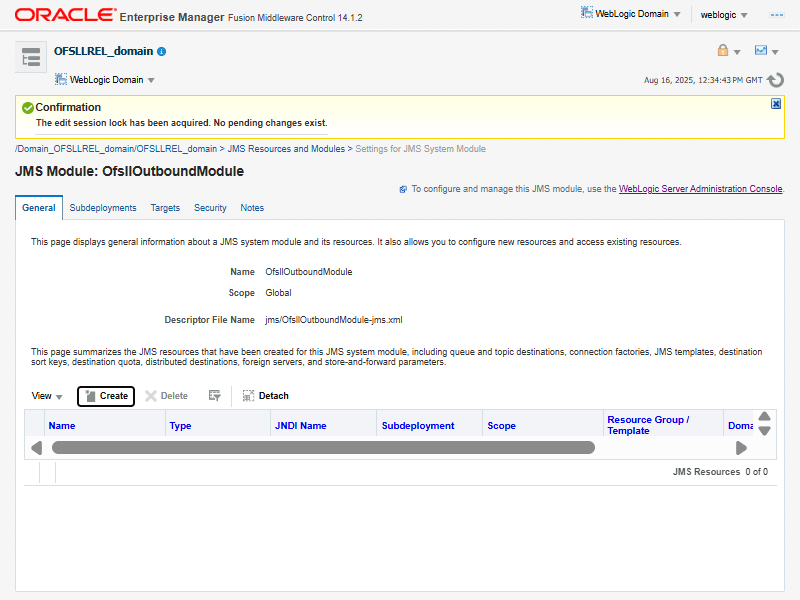

    Figure 8-47 General


    Description of Figure 8-47 follows
    Description of "Figure 8-47 General"

  2. Select Connection Factory option and click Next.
    The following window is displayed.

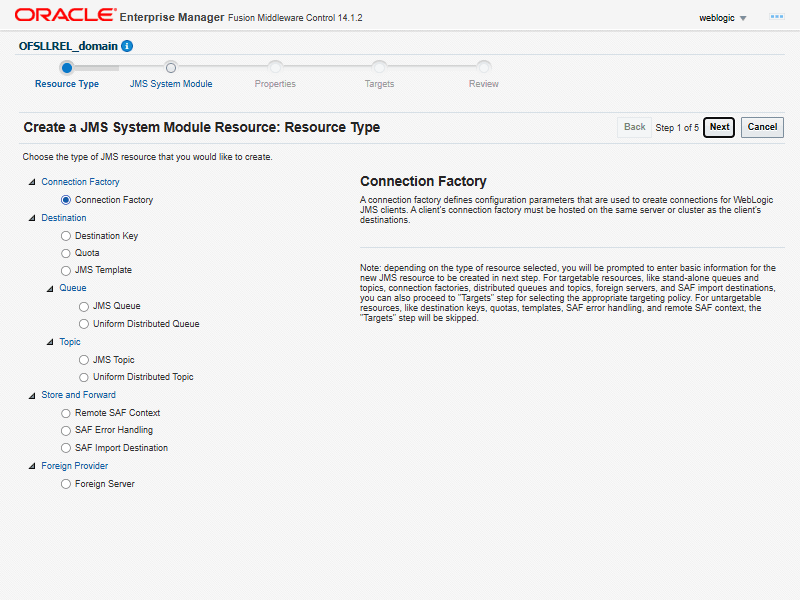

    Figure 8-48 Resource Type


    Description of Figure 8-48 follows
    Description of "Figure 8-48 Resource Type"

  3. Click Next.
    The following window is displayed.

    Figure 8-49 JMS System Module


    Description of Figure 8-49 follows
    Description of "Figure 8-49 JMS System Module"

  4. Specify the following details:
    • Enter the Name of the Connection Factory as OfsllOutboundCF.
    • Enter the JNDI Name as jms/OfsllOutboundCF.
    • Select the check box XA Connection Factory Enabled
    • In Case you are Creating a cluster setup for HA. Uncheck Server Affinity Enabled.
    • Click Next.
    The following window is displayed.

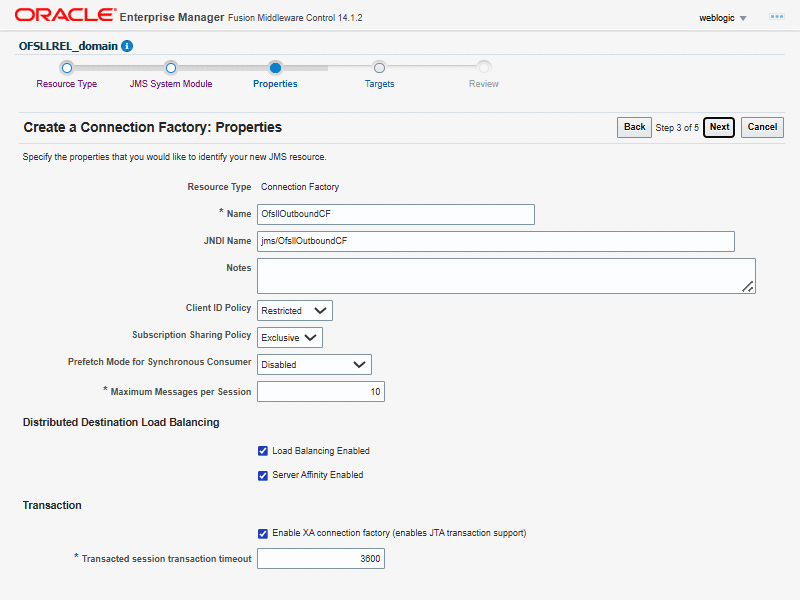

    Figure 8-50 Properties


    Description of Figure 8-50 follows
    Description of "Figure 8-50 Properties"

  5. Select Subdeployment Targeting.
    • Select OfsllOutboundSD from the dropdown.
    • Click Next.
    The following window is displayed.

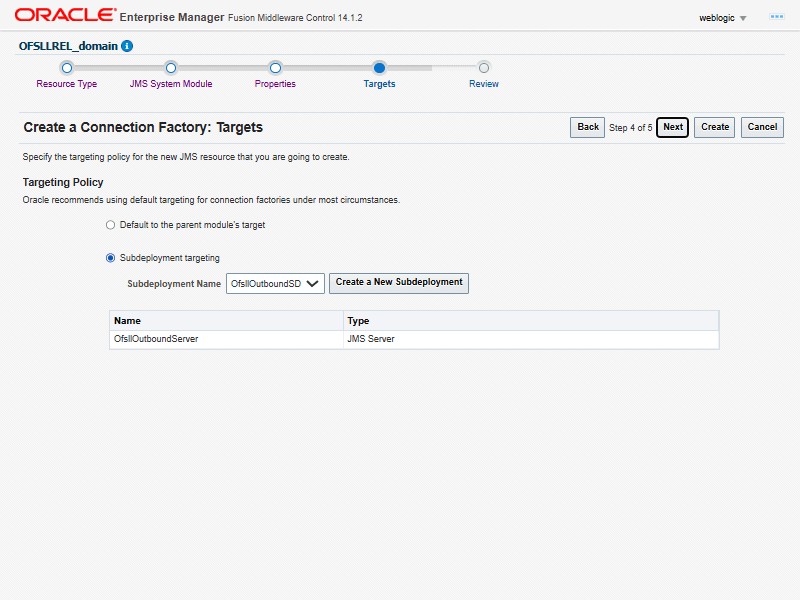

    Figure 8-51 Targets


    Description of Figure 8-51 follows
    Description of "Figure 8-51 Targets"

  6. Click Create.
    The following window is displayed.

    Figure 8-52 Review


    Description of Figure 8-52 follows
    Description of "Figure 8-52 Review"

  7. Navigate to Activate Changes.
    The following window is displayed.

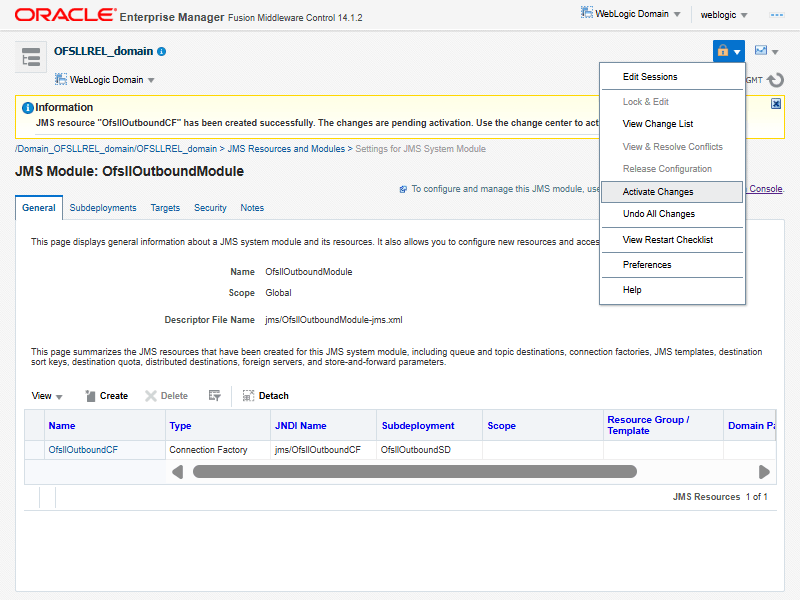

    Figure 8-53 Activate Changes


    Description of Figure 8-53 follows
    Description of "Figure 8-53 Activate Changes"

Parent topic: Outbound Queue Configuration
