8.3.4 SubDeployment for Outbound Queue

Follow the below steps to do subdeployment for outbound queue.

1. Click JMS Modules. The main window displays the list of JMS modules available.
2. Select the created JMS module OfsllOutboundModule.
   The following window is displayed.

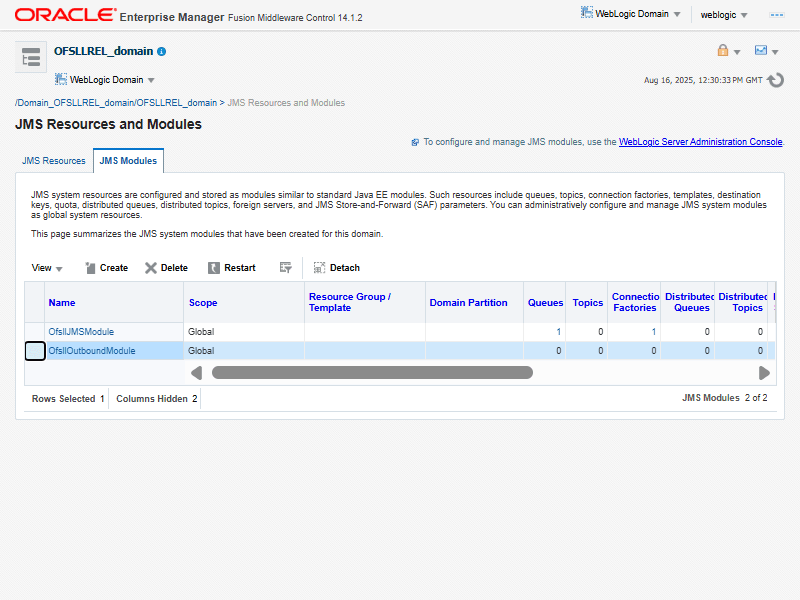

   Figure 8-43 JMS Modules





   Description of "Figure 8-43 JMS Modules"



3. Click Subdeployments and Click Create.
   The following window is displayed.

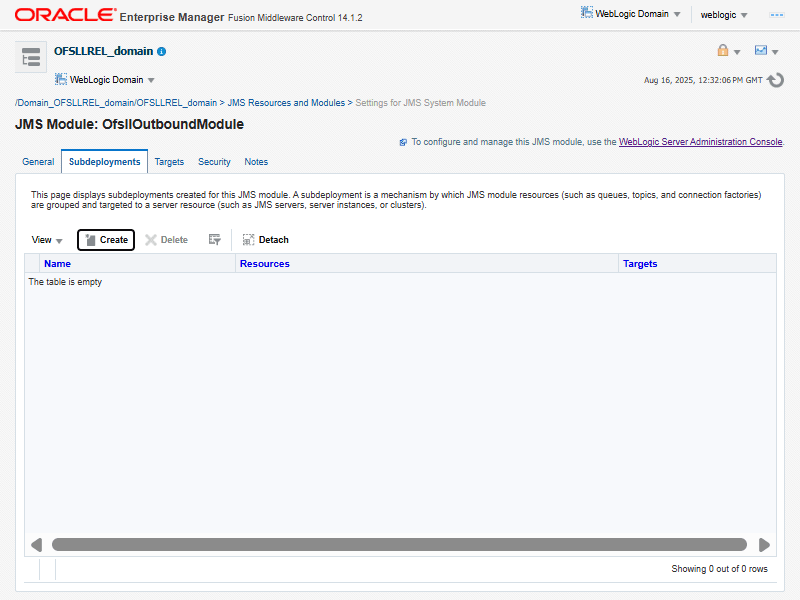

   Figure 8-44 Subdeployments





   Description of "Figure 8-44 Subdeployments"



4. Specify the Subdeployment Name as OfsllOutboundSD.
   The following window is displayed.

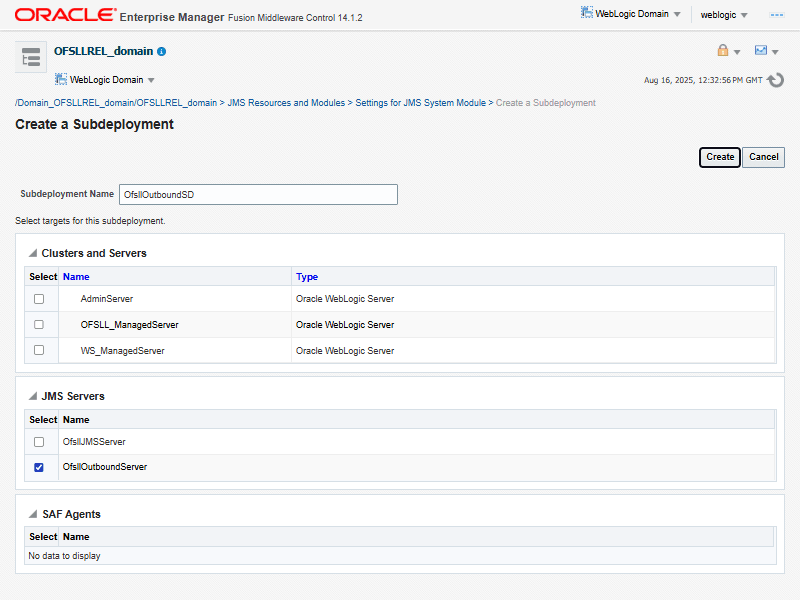

   Figure 8-45 Create a Subdeployment





   Description of "Figure 8-45 Create a Subdeployment"



5. Select the check box against the newly created OfsllOutboundServer and click Create.
6. Navigate to Activate Changes.
   The following window is displayed.

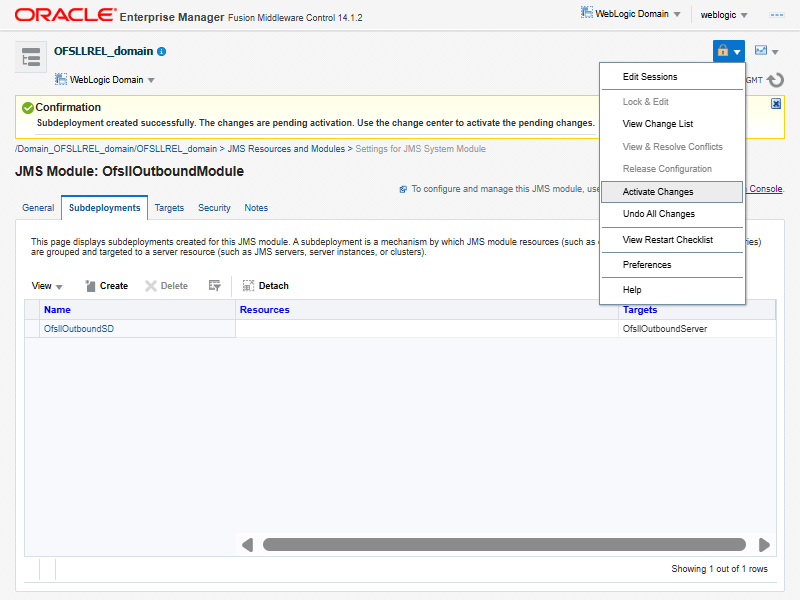

   Figure 8-46 Activate Changes





   Description of "Figure 8-46 Activate Changes"
