8.3.3 Create JMS Module for Outbound Queue

Follow the below steps to create JMS module for outbound queue.

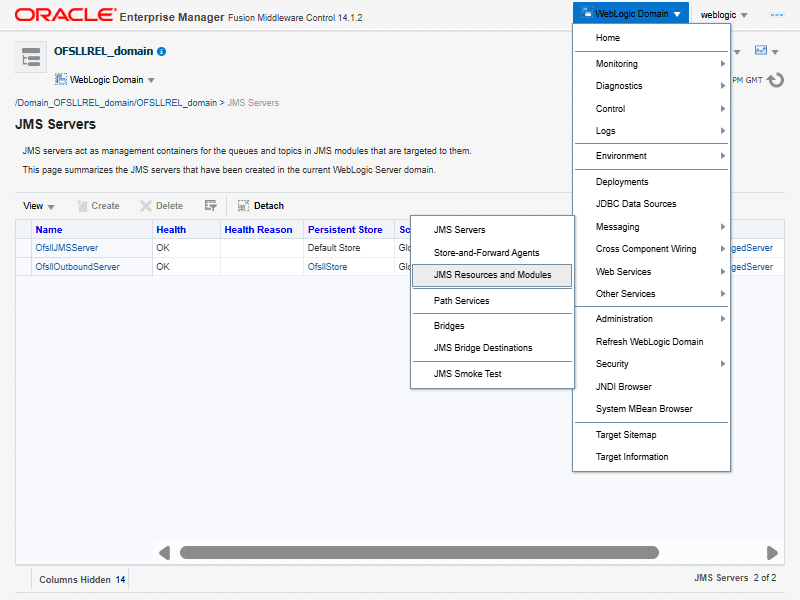

  1. Navigate to WebLogic Domain > Messaging > JMS Resources.
    The following window is displayed.

    Figure 8-37 JMS Resources and Modules


    Description of Figure 8-37 follows
    Description of "Figure 8-37 JMS Resources and Modules"

  2. Click JMS Modules.
    • Click Create.
    The following screen is displayed.

    Figure 8-38 Create


    Description of Figure 8-38 follows
    Description of "Figure 8-38 Create"

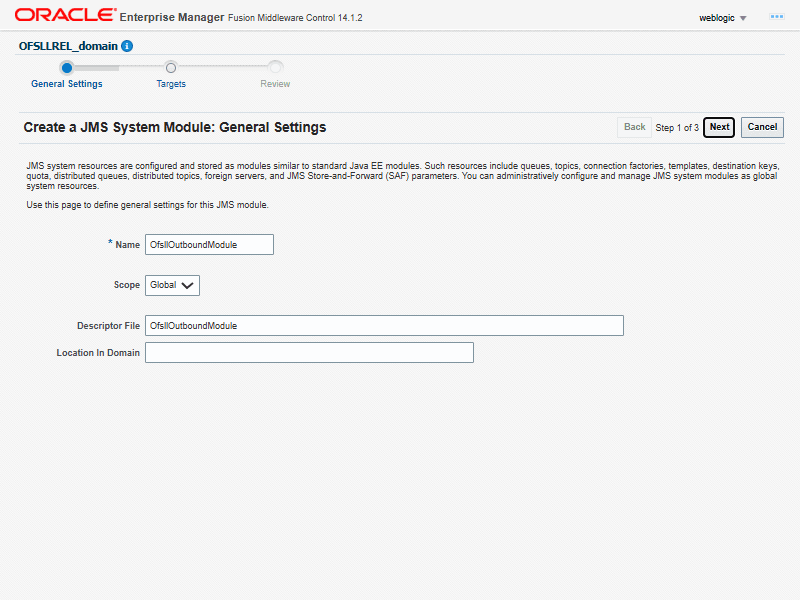

  3. Specify the following details:
    • Enter the System Module Name as OfsllOutboundModule.
    • Enter the Description File Name as OfsllOutboundModule.
    • Click Next.

    Figure 8-39 General Settings


    Description of Figure 8-39 follows
    Description of "Figure 8-39 General Settings"

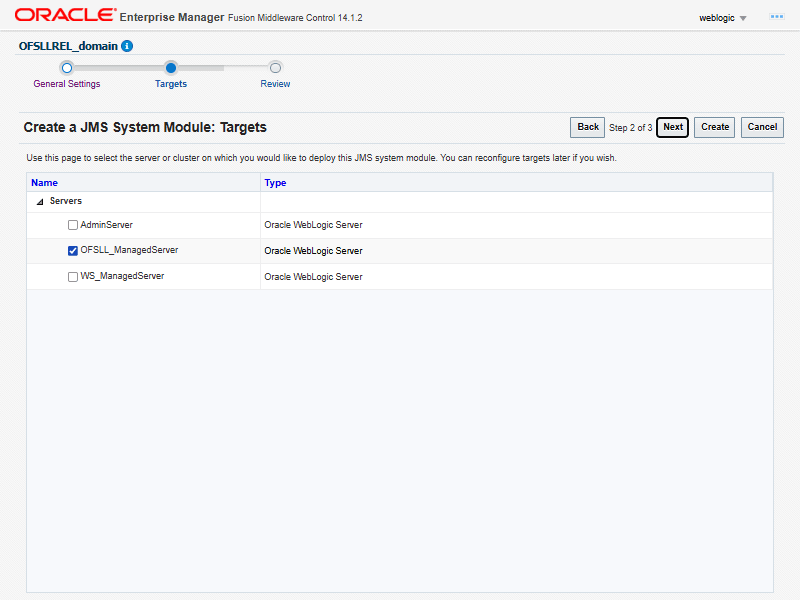

  4. Select the target server and click Next.

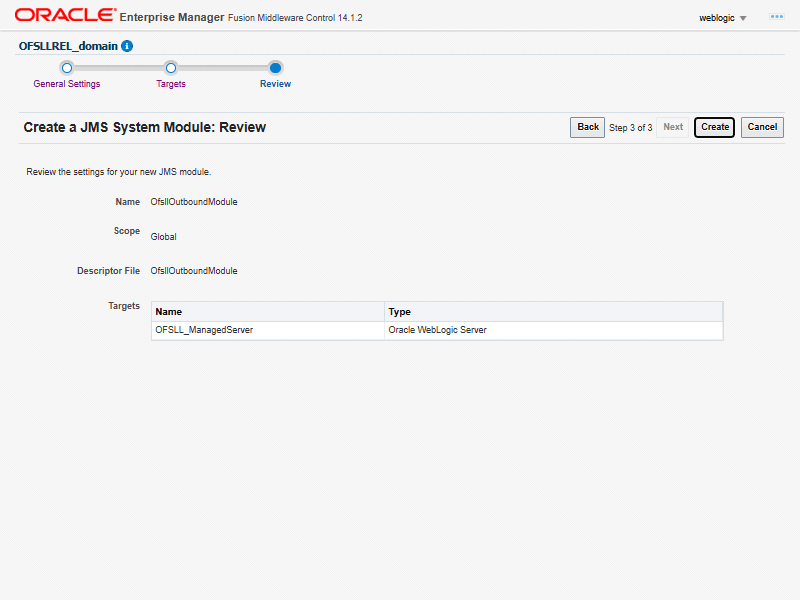

  5. Click Create to save and activate the changes. Once done, the following window is displayed.
  6. Navigate to Activate Changes.

    Figure 8-42 Activate Changes


    Description of Figure 8-42 follows
    Description of "Figure 8-42 Activate Changes"

Parent topic: Outbound Queue Configuration
