8.3.2 Create JMS Server for Outbound Queue

Follow the below steps to create JMS server for outbound queue.
  1. Click WebLogic Domain > Messaging > JMS Servers.
    • Click Create.

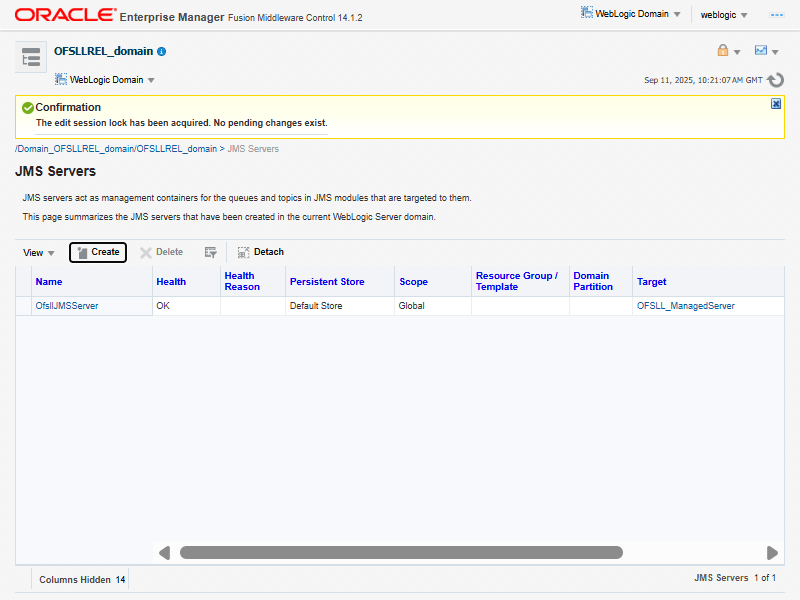

    Figure 8-33 JMS Servers


    Description of Figure 8-33 follows
    Description of "Figure 8-33 JMS Servers"

  2. Specify the JMS Server name as OfsllOutboundServer.
    • Select OfsllStore as the Persistent Store.
    • Click Next.

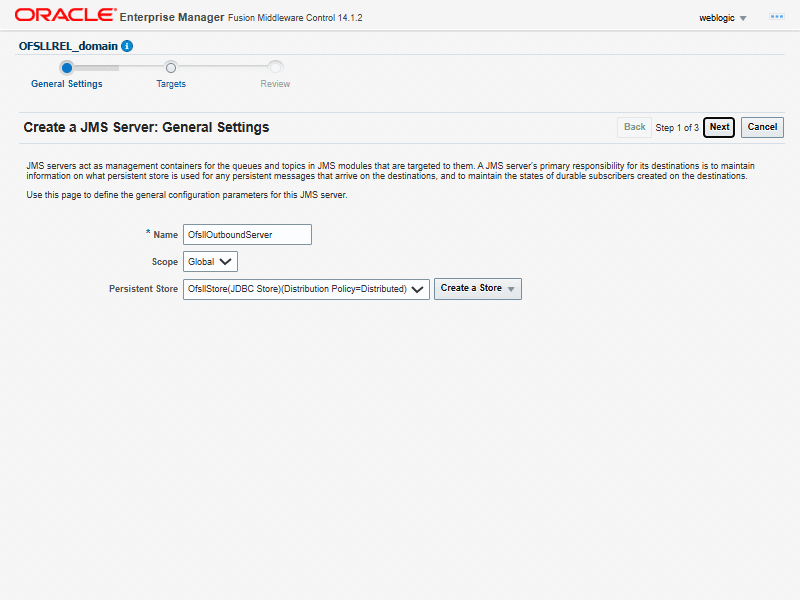

    Figure 8-34 General Settings


    Description of Figure 8-34 follows
    Description of "Figure 8-34 General Settings"

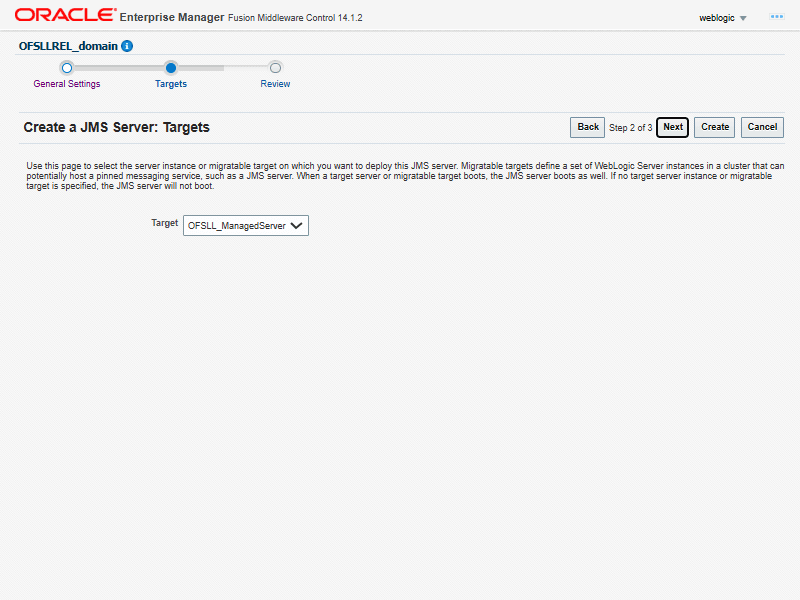

  3. Select the target managed server and click Next.
  4. Click Create.

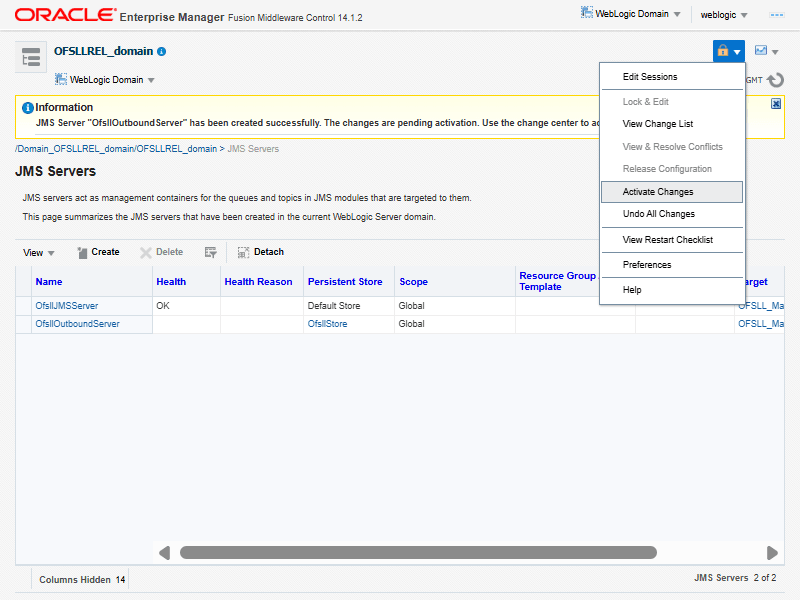

  5. Once done the following window is displayed.
  6. Click Activate Changes.

Parent topic: Outbound Queue Configuration
