8.3.1 Create Persistent Stores

Follow the below steps to create persistent stores.

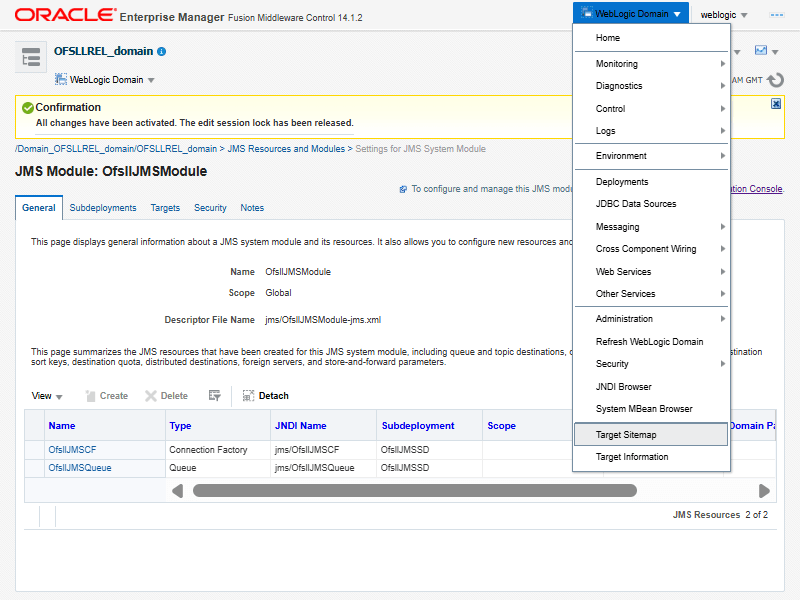

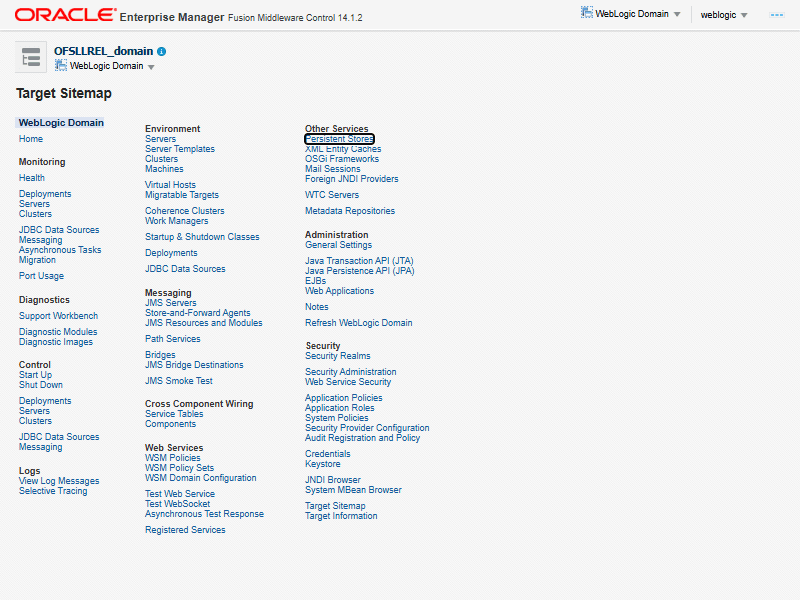

  1. Navigate to WebLogic Domain > Target Sitemap.
  2. Click Persistent Stores.

    Figure 8-23 Persistent Stores


    Description of Figure 8-23 follows
    Description of "Figure 8-23 Persistent Stores"

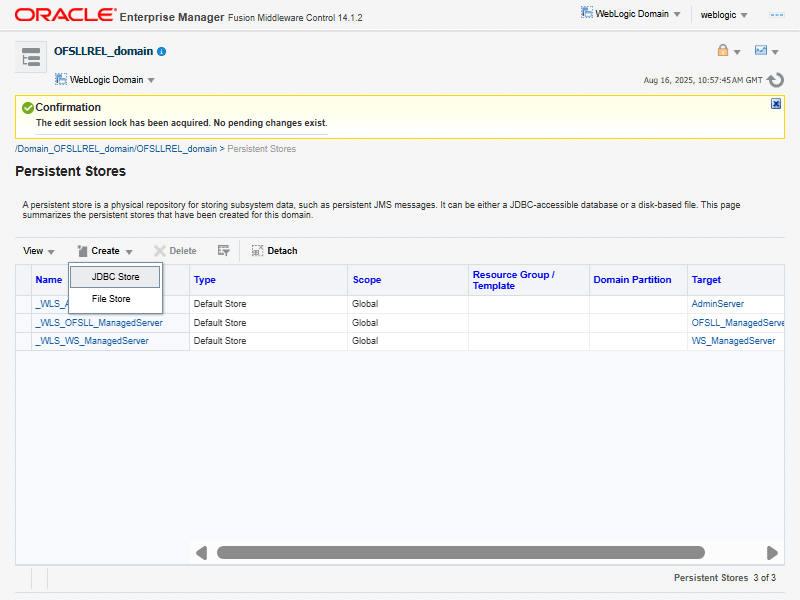

  3. Select Create.
    • Click JDBC Store.

    Figure 8-24 JDBC Store


    Description of Figure 8-24 follows
    Description of "Figure 8-24 JDBC Store"

  4. Specify the following details:
    • Name: OfsllStore.
    • Select OFSLL Data source from the drop down list.
    • Prefix Name: Ofsll .
    • Click Next.

    Figure 8-25 General Settings


    Description of Figure 8-25 follows
    Description of "Figure 8-25 General Settings"

  5. Select the Target as OFSLL_ManagedServer from the drop-down list.
    The following window is displayed.

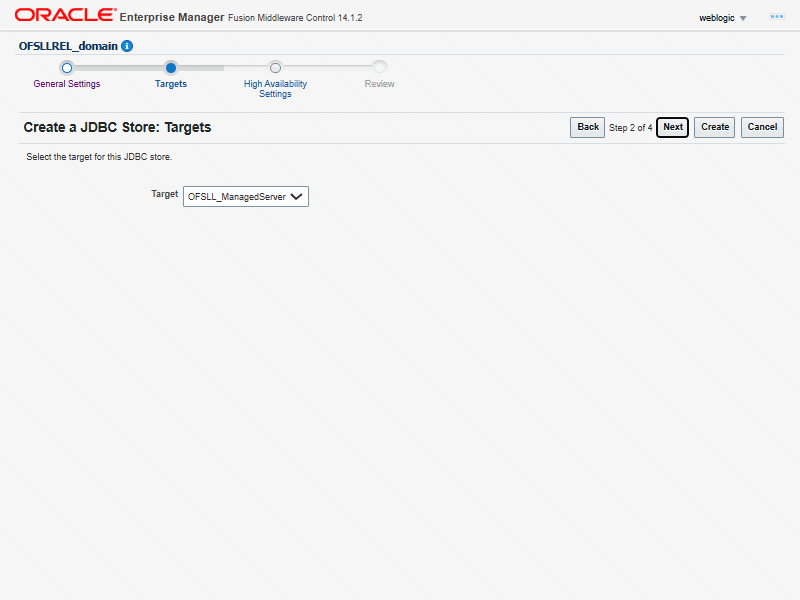

    Figure 8-26 Targets


    Description of Figure 8-26 follows
    Description of "Figure 8-26 Targets"

  6. Click Next.
    The following window is displayed.

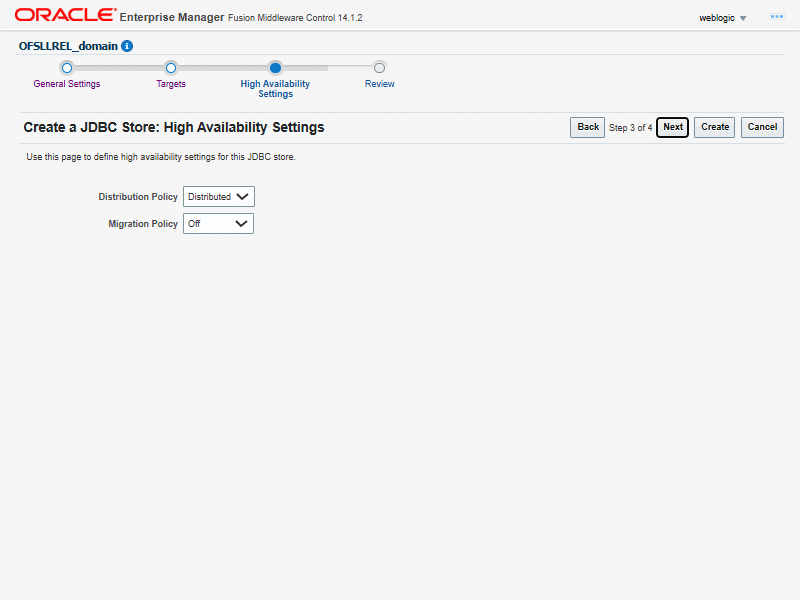

    Figure 8-27 High Availability settings


    Description of Figure 8-27 follows
    Description of "Figure 8-27 High Availability settings"

  7. Click Create.
    The following window is displayed.

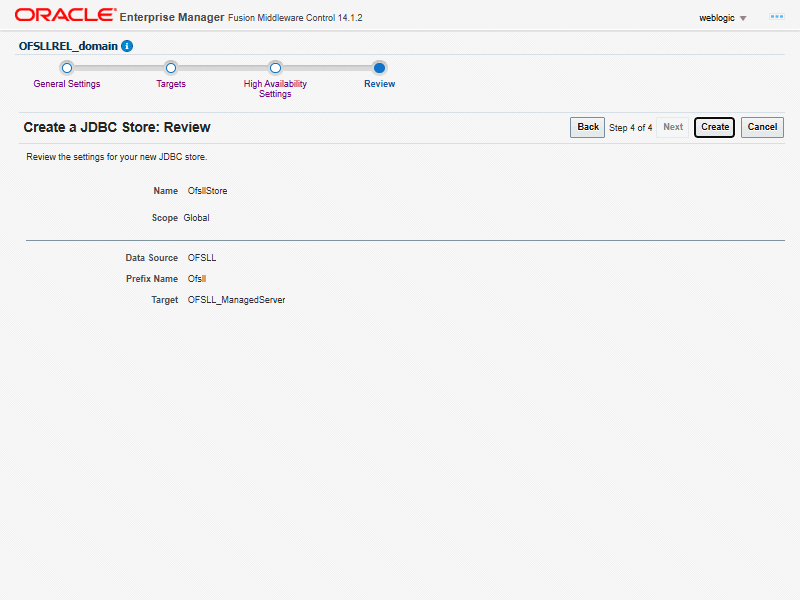

    Figure 8-28 Review


    Description of Figure 8-28 follows
    Description of "Figure 8-28 Review"

  8. Click Activate Changes.

    Figure 8-29 Activate Changes


    Description of Figure 8-29 follows
    Description of "Figure 8-29 Activate Changes"

  9. Navigate to WebLogic Domain > Environment > Clusters.
    The following window is displayed.

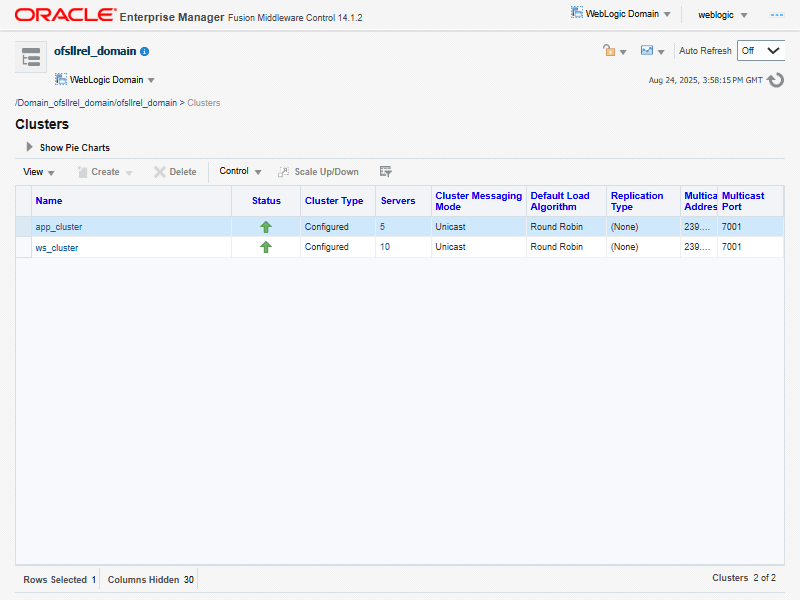

    Figure 8-30 Clusters


    Description of Figure 8-30 follows
    Description of "Figure 8-30 Clusters"

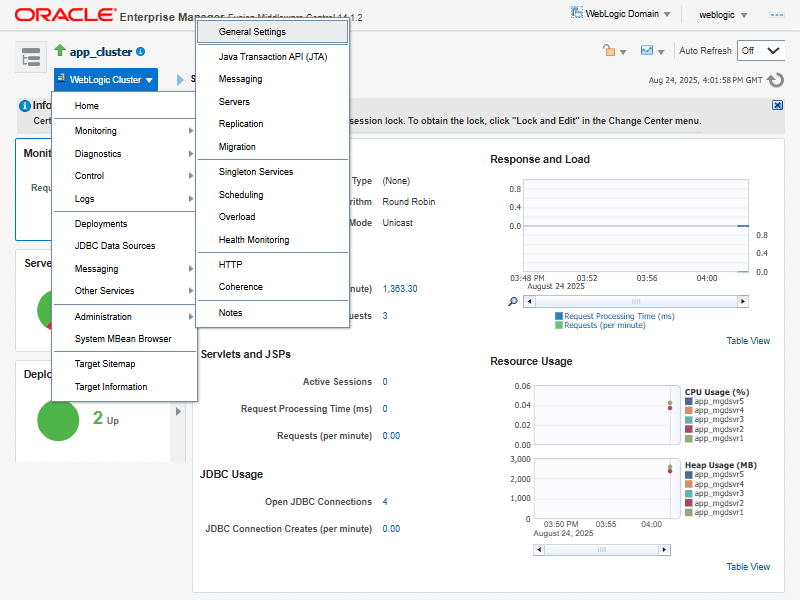

  10. Navigate to app_cluster > WebLogic Cluster > Administration > General Settings.
    The following window is displayed.

    Figure 8-31 General Settings


    Description of Figure 8-31 follows
    Description of "Figure 8-31 General Settings"

  11. Navigate Configuration > Migration.
    The following window is displayed.

    Figure 8-32 Migration


    Description of Figure 8-32 follows
    Description of "Figure 8-32 Migration"

  12. Click Migration and choose Migration Basis as Consensus from the drop-down list.
  13. Click Save to activate the changes.

Parent topic: Outbound Queue Configuration
