8.2.5 Create JMS Queue

Follow the below steps to create JMS queue.
  1. Click Create.
    The following window is displayed.

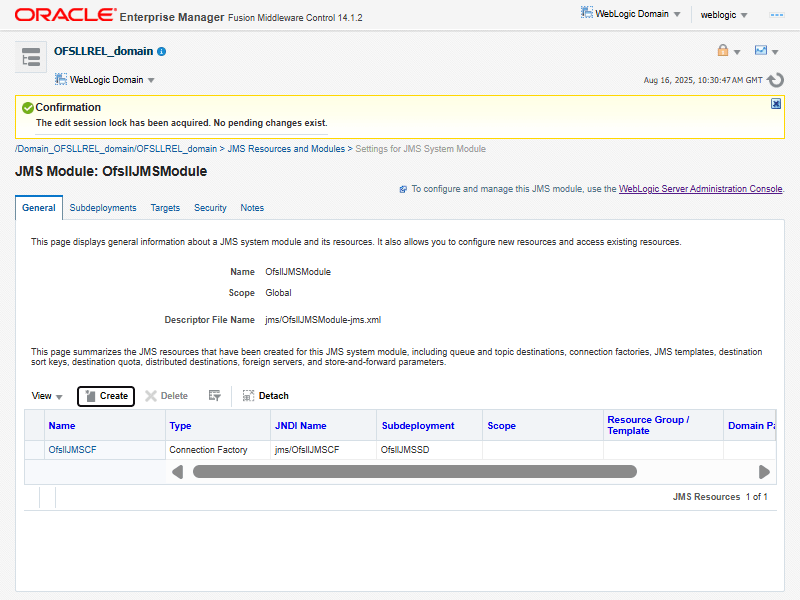

    Figure 8-15 General


    Description of Figure 8-15 follows
    Description of "Figure 8-15 General"

  2. Select the JMS Queue option and click Next.
    The following window is displayed.

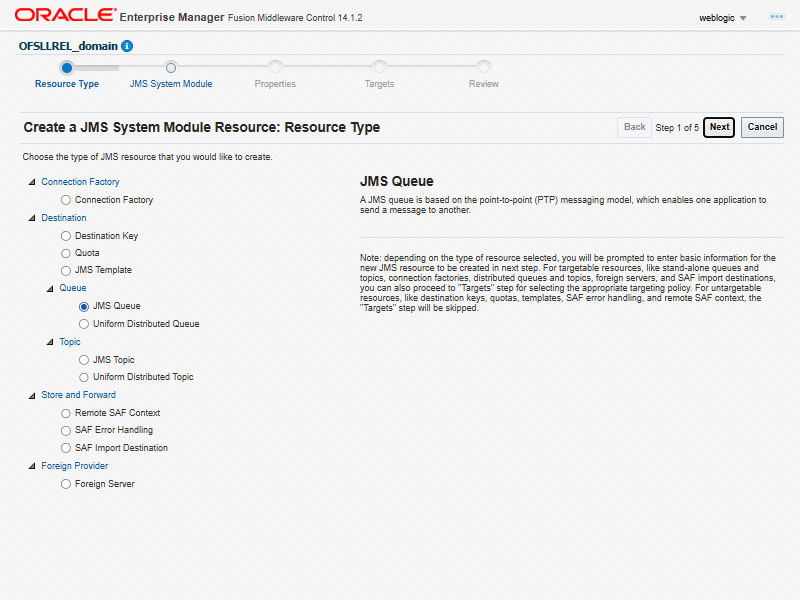

    Figure 8-16 Resource Type


    Description of Figure 8-16 follows
    Description of "Figure 8-16 Resource Type"

  3. Click Next.
    The following window is displayed.

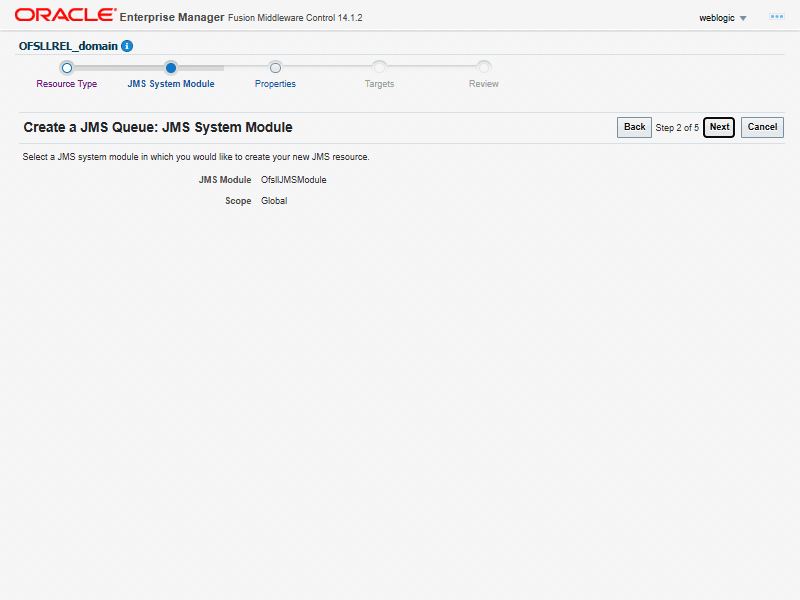

    Figure 8-17 JMS System Module


    Description of Figure 8-17 follows
    Description of "Figure 8-17 JMS System Module"

  4. Specify the following details while creating new JMS System Module Resources:
    • Enter the Name of the Queue as OfsllJMSQueue.
    • Enter the JNDI Name as jms/OfsllJMSQueue.
    • Select the Template as None.
    • Click Next.
    The following window is displayed.

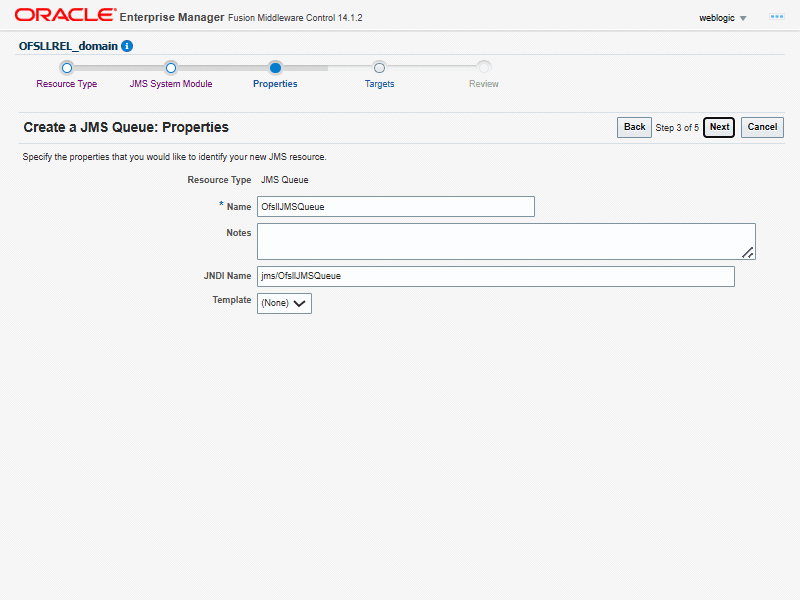

    Figure 8-18 Properties


    Description of Figure 8-18 follows
    Description of "Figure 8-18 Properties"

  5. Select the Subdeployments as OfsllJMSSD from the drop-down list.
  6. Click Next.
    The following window is displayed.

    Figure 8-19 Targets


    Description of Figure 8-19 follows
    Description of "Figure 8-19 Targets"

  7. Click Create.
    The following window is displayed.

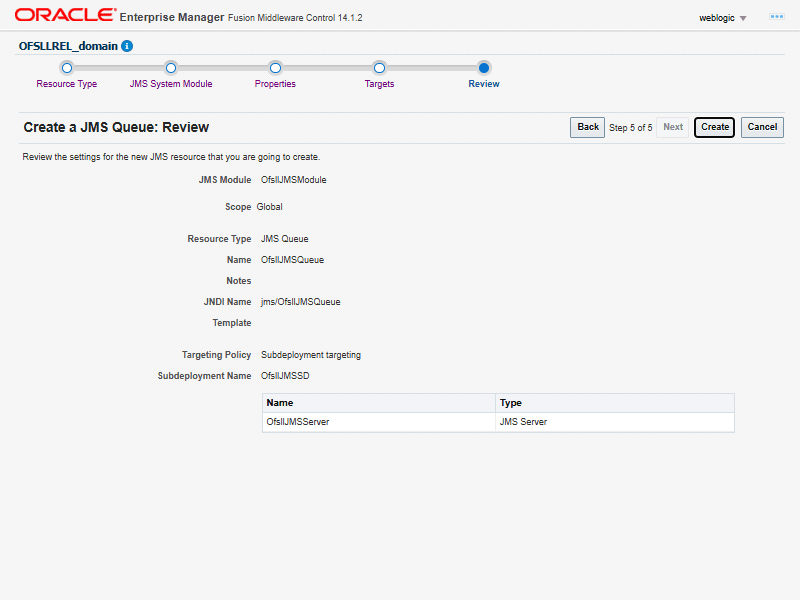

    Figure 8-20 Review


    Description of Figure 8-20 follows
    Description of "Figure 8-20 Review"

  8. Navigate to Activate Changes.
    The following window is displayed.

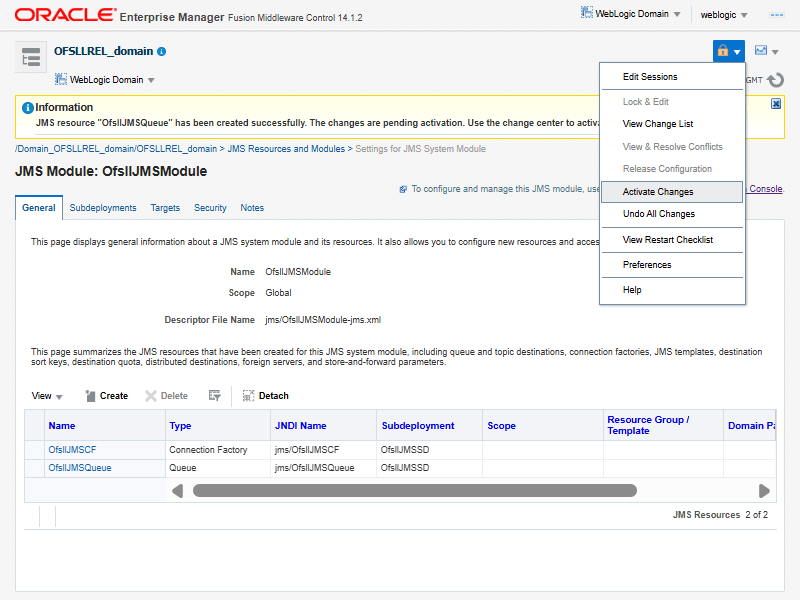

    Figure 8-21 Activate Changes


    Description of Figure 8-21 follows
    Description of "Figure 8-21 Activate Changes"

Parent topic: AQ-JMS Queue Configuration
