8.2.4 Create JMS Connection Factory

Follow the below steps to create JMS connection factory.

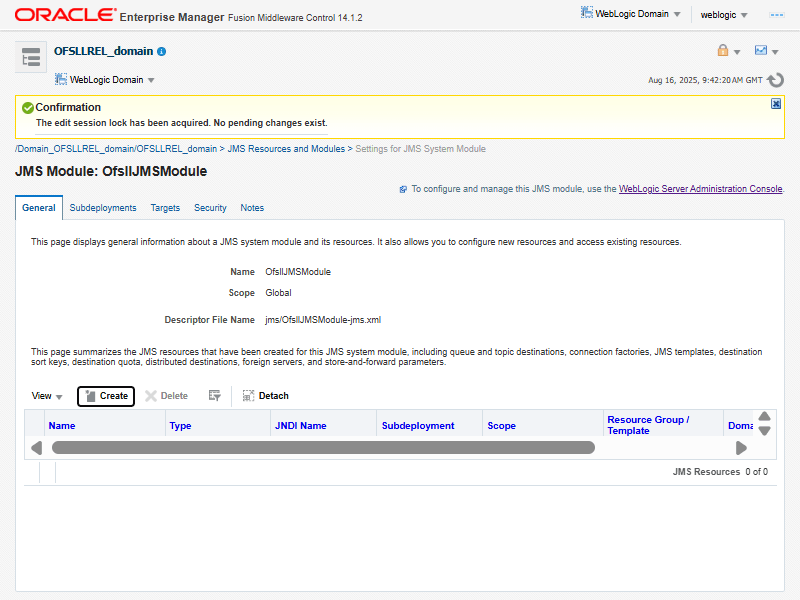

  1. Click General.
    The following window is displayed.

    Figure 8-8 General


    Description of Figure 8-8 follows
    Description of "Figure 8-8 General"

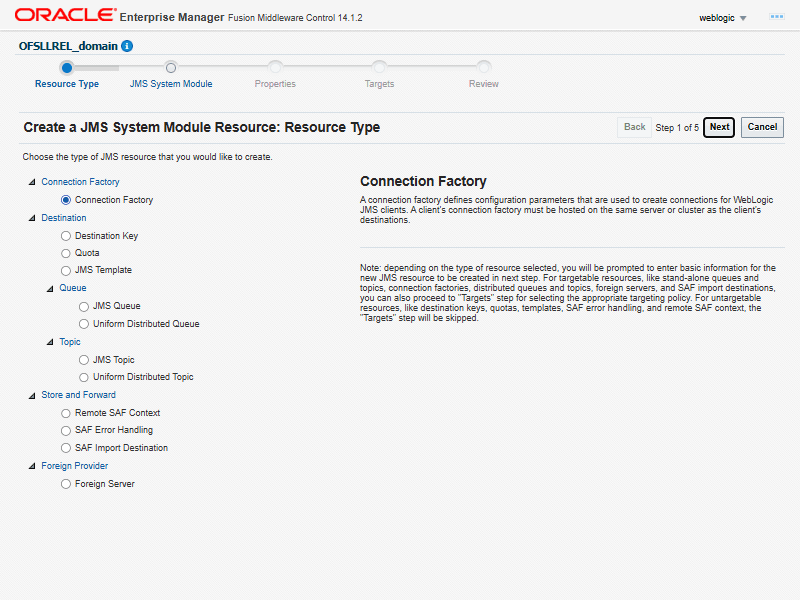

  2. Click Create.
    The following window is displayed.

    Figure 8-9 Resource Type


    Description of Figure 8-9 follows
    Description of "Figure 8-9 Resource Type"

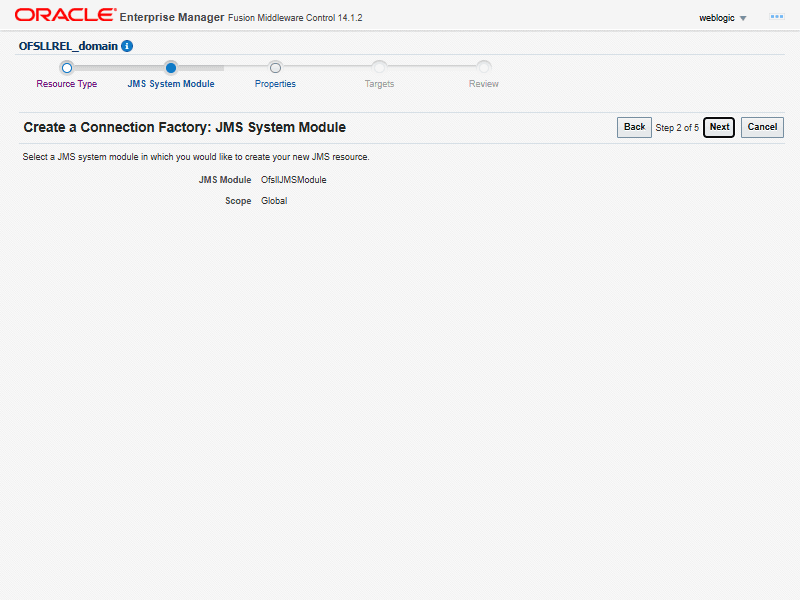

  3. Select the Connection Factory.
    • Click Next.
    The following window is displayed.

    Figure 8-10 JMS System Module


    Description of Figure 8-10 follows
    Description of "Figure 8-10 JMS System Module"

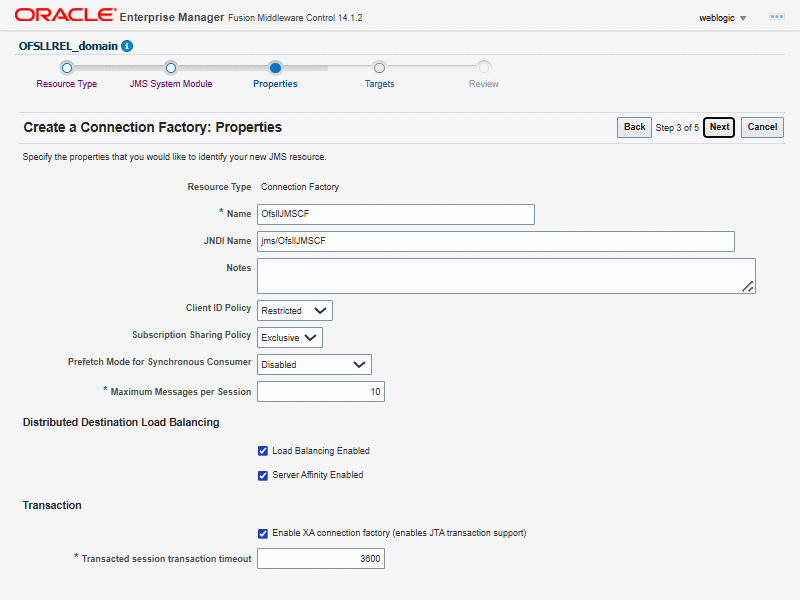

  4. Specify the following details:
    • Enter the Name of the Connection Factory as OfsllJMSCF
    • Enter the JNDI Name as jms/OfsllJMSCF
    • Select the check box XA Connection Factory Enabled.
    • Click Next.
    The following window is displayed.

    Figure 8-11 Properties


    Description of Figure 8-11 follows
    Description of "Figure 8-11 Properties"

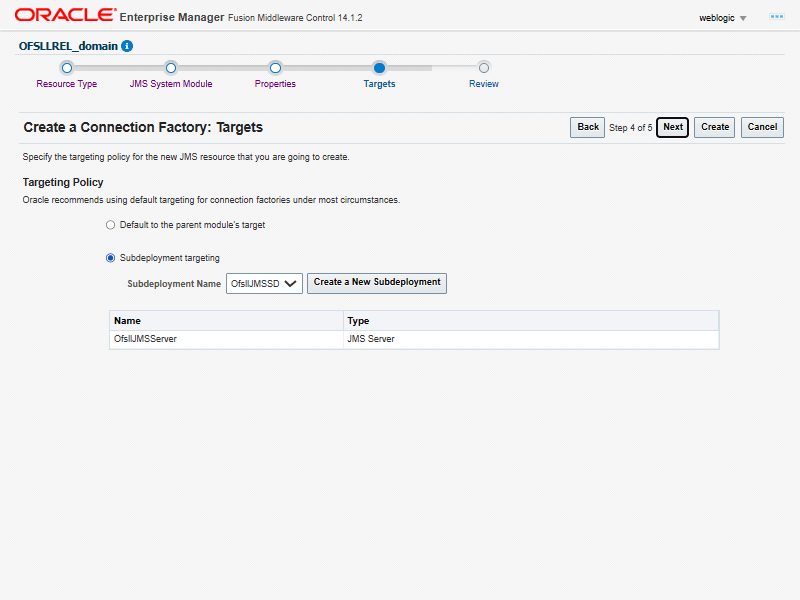

  5. Click Subdeployment Targeting.
    • Select OfsllJMSSD from the dropdown.
    • Click Next.
    The following window is displayed.

    Figure 8-12 Targets


    Description of Figure 8-12 follows
    Description of "Figure 8-12 Targets"

  6. Click Create.
    The following window is displayed.

    Figure 8-13


    Description of Figure 8-13 follows
    Description of "Figure 8-13 "

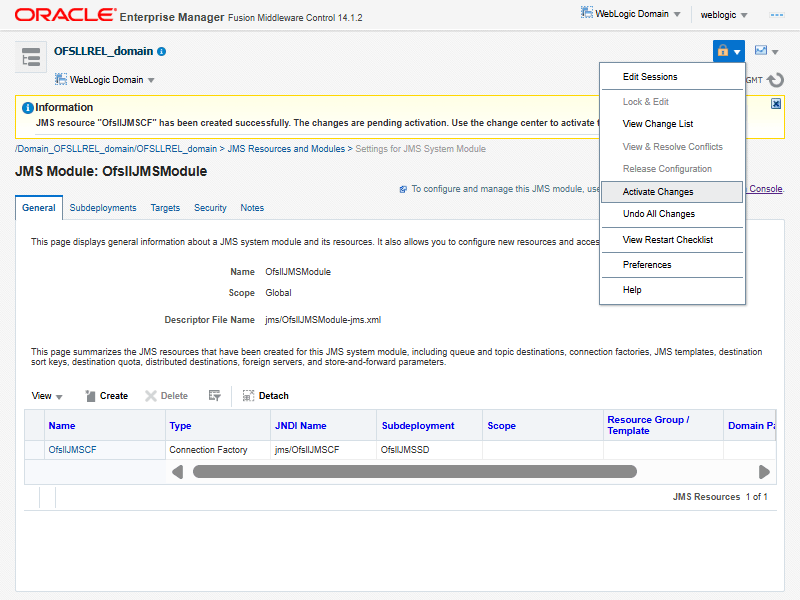

  7. Navigate Activate Changes.
    The following window is displayed.

    Figure 8-14 Activate Changes


    Description of Figure 8-14 follows
    Description of "Figure 8-14 Activate Changes"

Parent topic: AQ-JMS Queue Configuration
