8.2.3 Subdeployment

Follow the below steps to do subdeployment.

1. Select the created JMS module OfsllJMSModule.
   The following window is displayed.

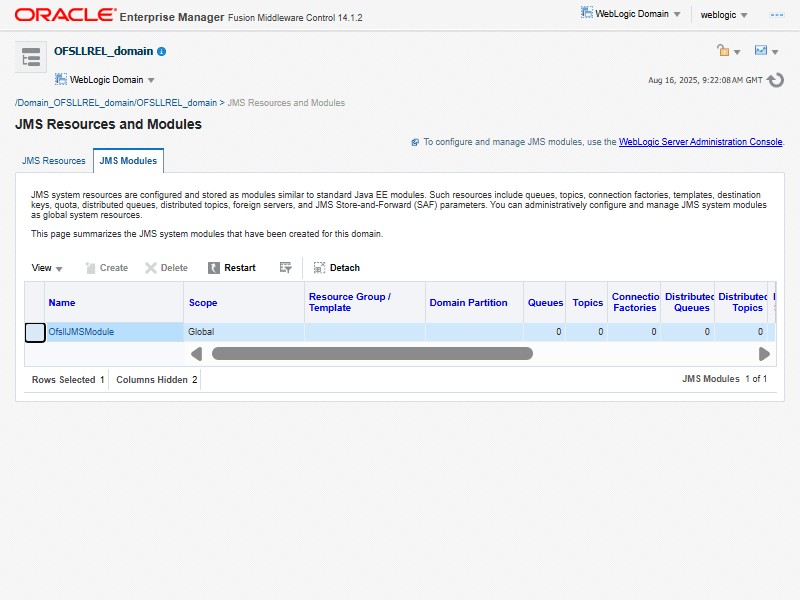

   Figure 8-4 JMS Modules





   Description of "Figure 8-4 JMS Modules"



2. Navigate Subdeployments.
   • Click Create.

   The following screen is displayed.

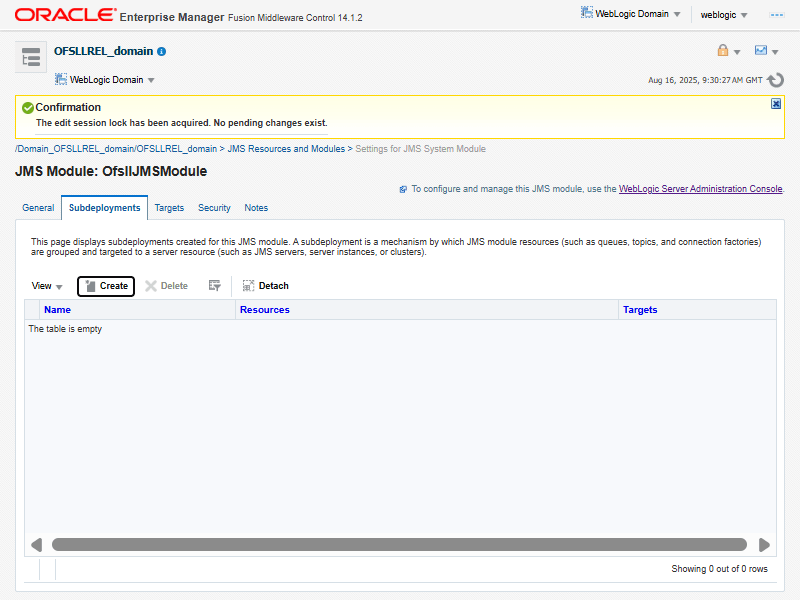

   Figure 8-5 Create





   Description of "Figure 8-5 Create"



3. Specify the Subdeployment Name as OfsllJMSSD. Select the check box.
   • Click Create.

   The following window is displayed.

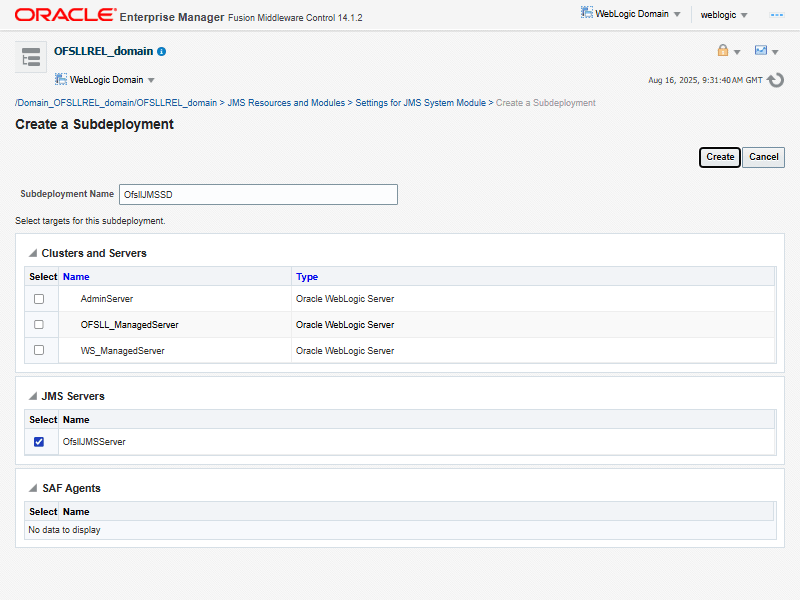

   Figure 8-6 Create a Subdeployment





   Description of "Figure 8-6 Create a Subdeployment"



4. Click Activate Changes.
   The following window is displayed.

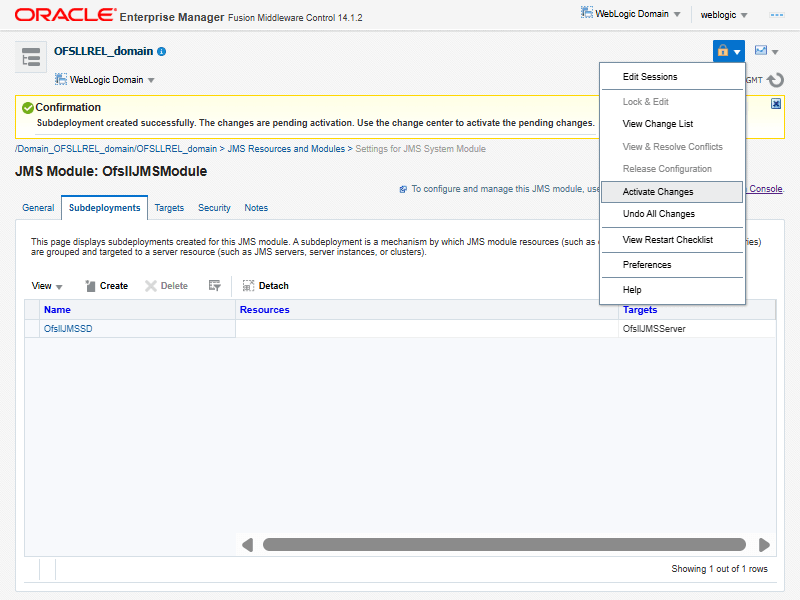

   Figure 8-7 Activate Changes





   Description of "Figure 8-7 Activate Changes"
