8.2.2 Create JMS Module

Follow the below steps to create JMS module.

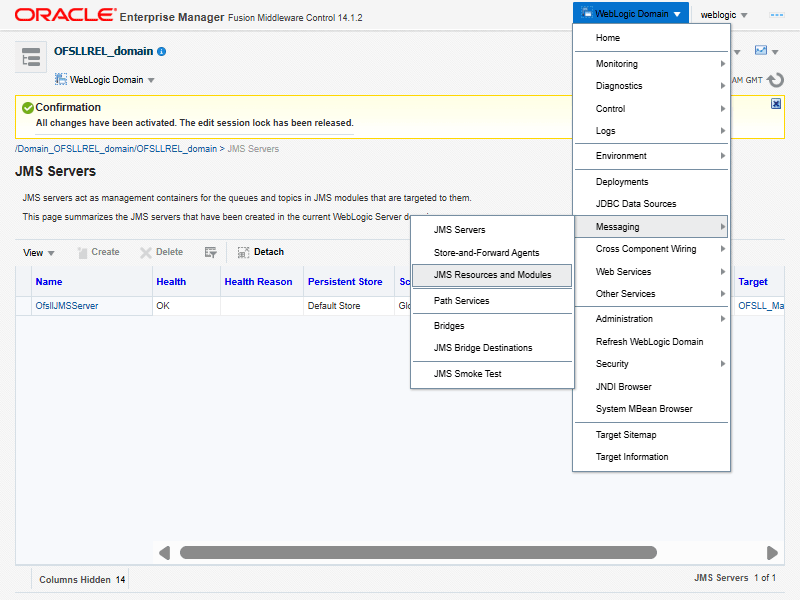

  1. Navigate WebLogic Domain > Services > Messaging > JMS Resources and Modules.
    The following window is displayed.
    Description of ofslljmsmodule1.png follows
    Description of the illustration ofslljmsmodule1.png

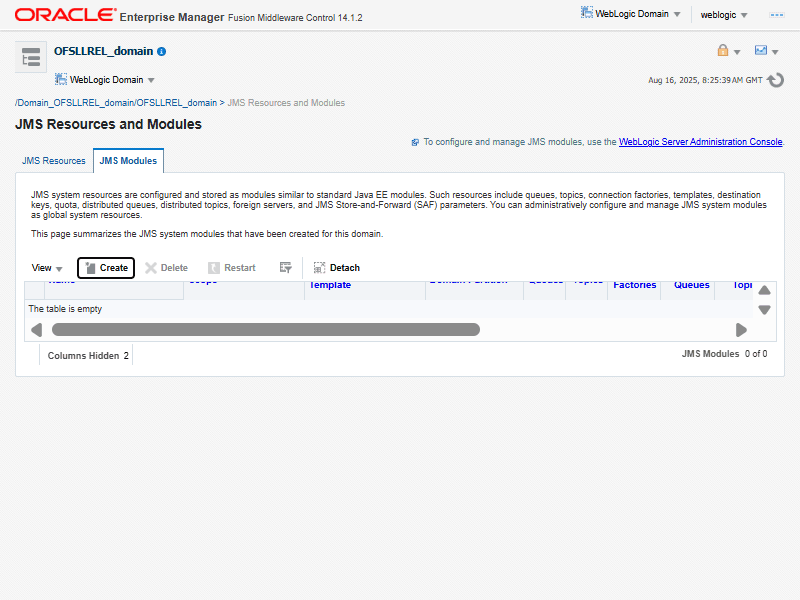

  2. Click JMS modules and Create.
    The following screen is displayed.
    Description of ofslljmsmodule2.png follows
    Description of the illustration ofslljmsmodule2.png

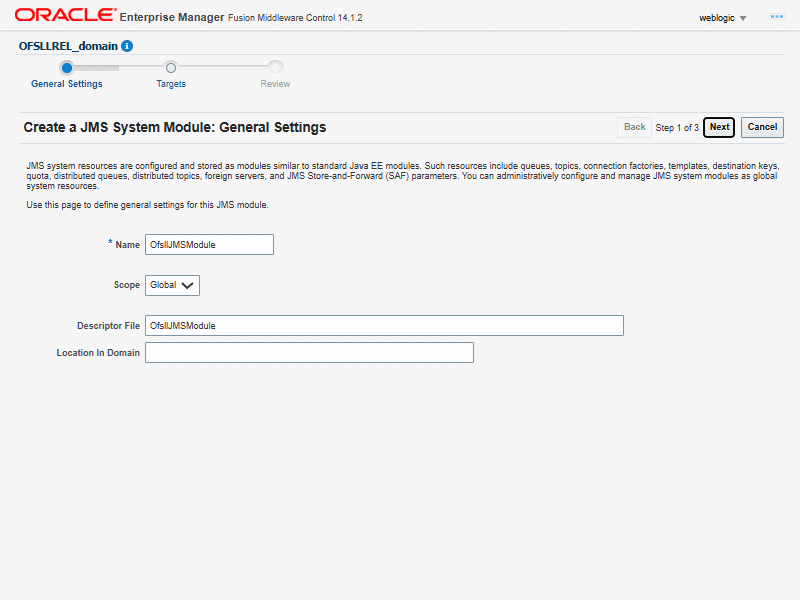

  3. Specify the following details:
    • Enter the System Module Name as OfsllJMSModule
    • Enter the Description File Name as OfsllJMSModule
  4. Click Next.
    The following screen is displayed.
    Description of ofslljmsmodule3.png follows
    Description of the illustration ofslljmsmodule3.png

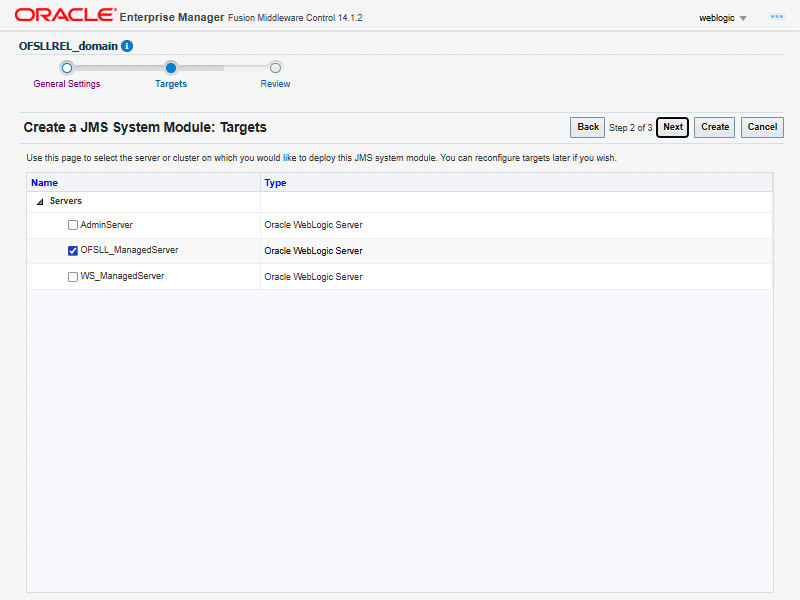

  5. Select the target server and click Next.
    The following window is displayed.
    Description of ofslljmsmodule4.png follows
    Description of the illustration ofslljmsmodule4.png

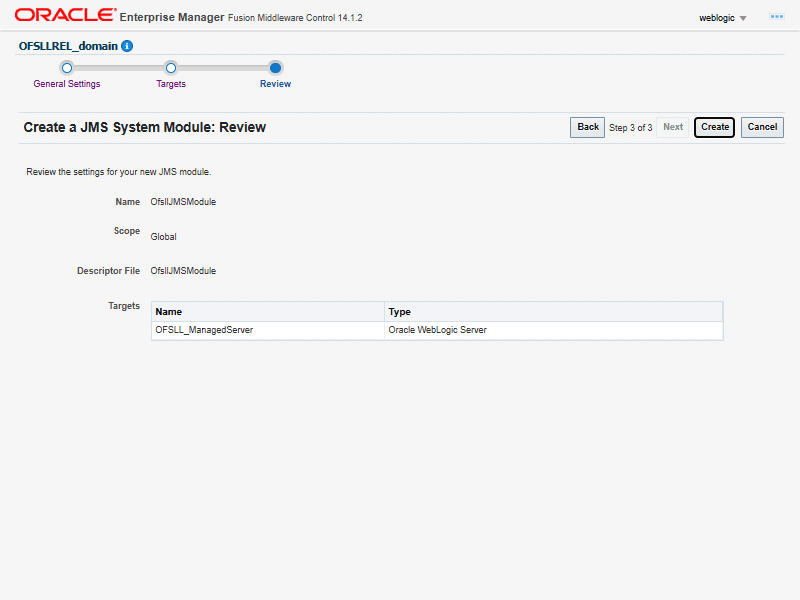

  6. Click Create to save and activate the changes. Once done, the following window is displayed.

Parent topic: AQ-JMS Queue Configuration
