8.2.1 Create JMS Server

Follow the below steps to create JMS server.

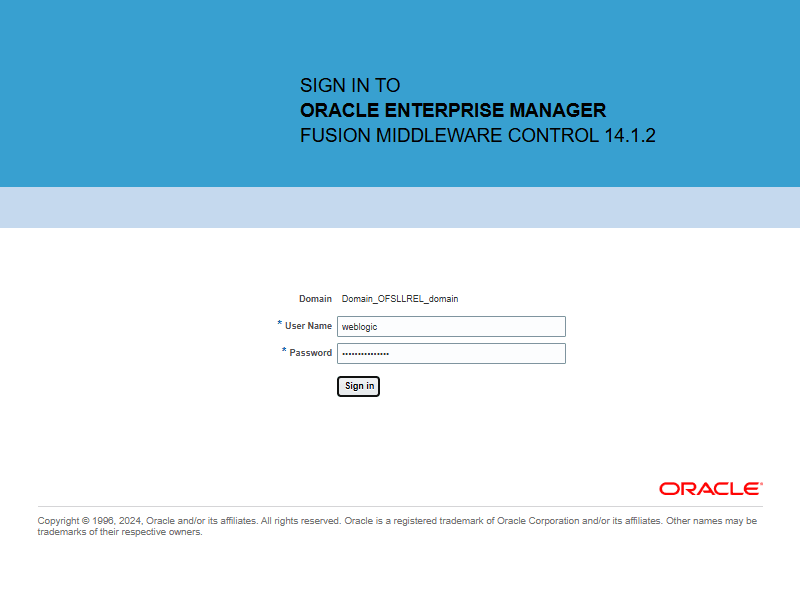

  1. Login to WebLogic Server 14c em (http://hostname:port/em).
  2. Specify the Weblogic administrator user name and password and click Log In.

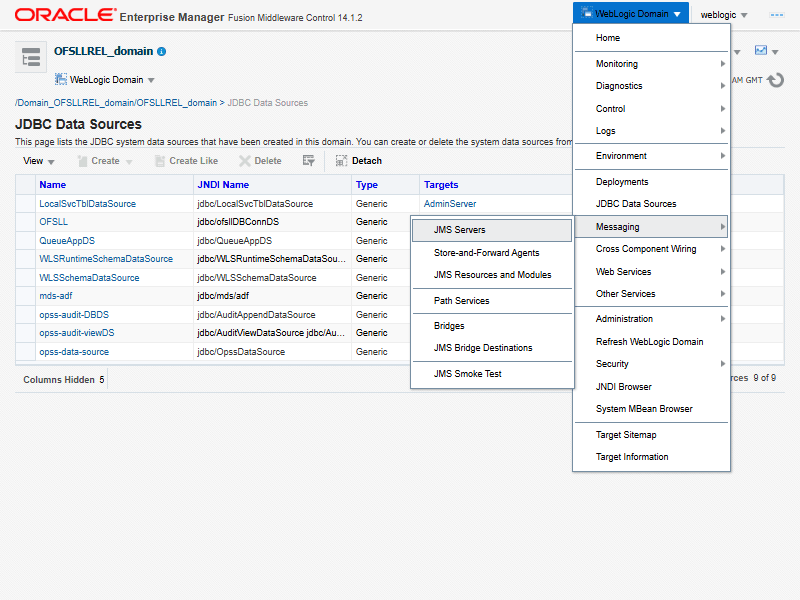

  3. Click Domain Name > Services > Messaging > JMS Server.
  4. Click Create.
    The following window is displayed.

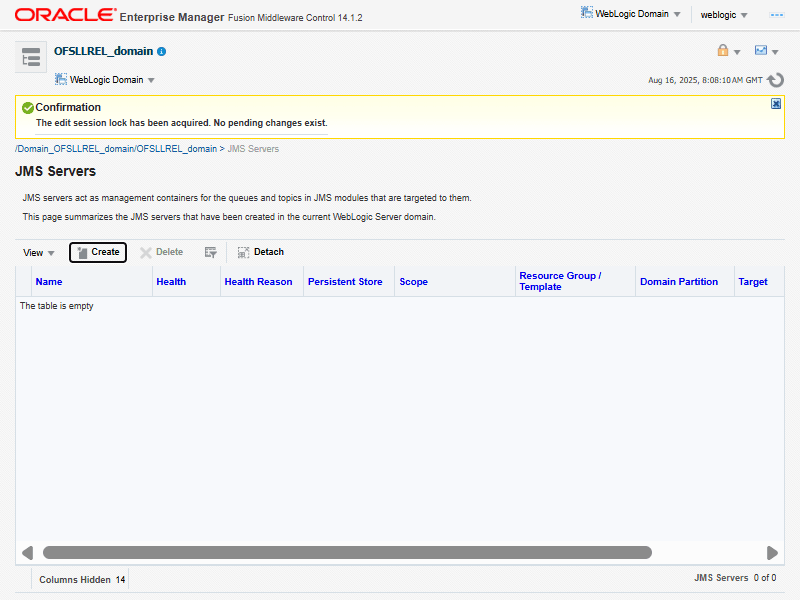

    Description of ofslljmsserver2.png follows
    Description of the illustration ofslljmsserver2.png

  5. Specify the JMS Server Name as OfsllJMSServer.
    • Select Default Store as the Persistent Store type.
    • Click Next.
    The following window is displayed.
    Description of ofslljmsserver3.png follows
    Description of the illustration ofslljmsserver3.png

  6. Select the target managed server and click Next.

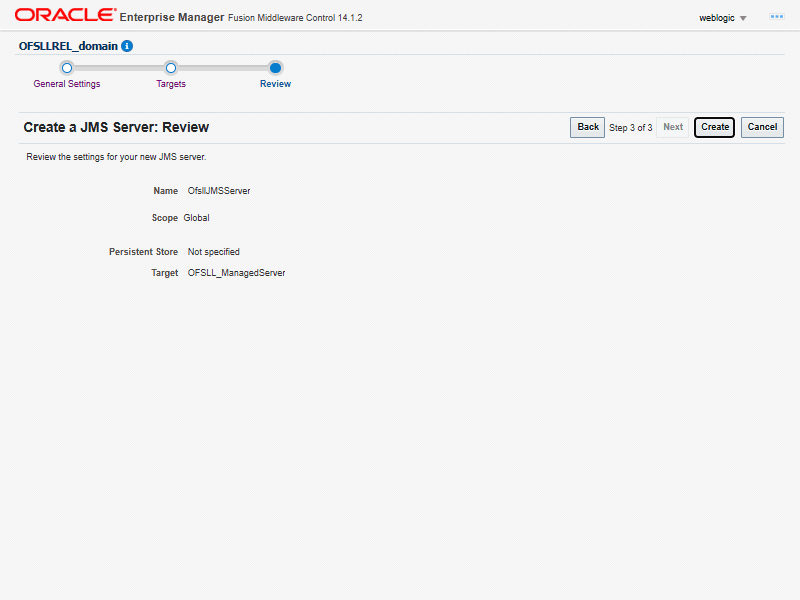

  7. Click Create.
  8. Click Activate Changes.
    The following window is displayed.

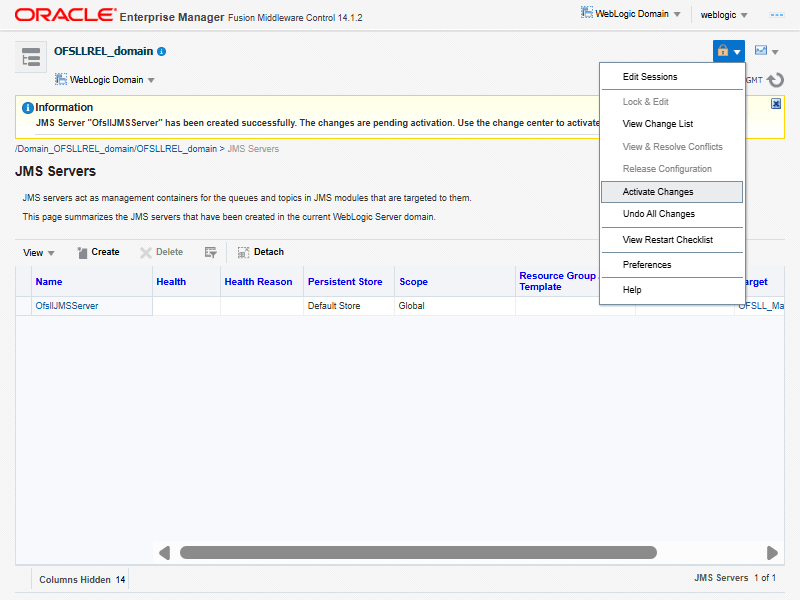

    Description of ofslljmsserver6.png follows
    Description of the illustration ofslljmsserver6.png

Parent topic: AQ-JMS Queue Configuration
