2.1 Header Information

This topic describes about defining the header information for Online Forms.

  1. On Expand Menu of the Development Workbench for Universal Banking, click Function Generation node.
    The Function Generation screen displays.

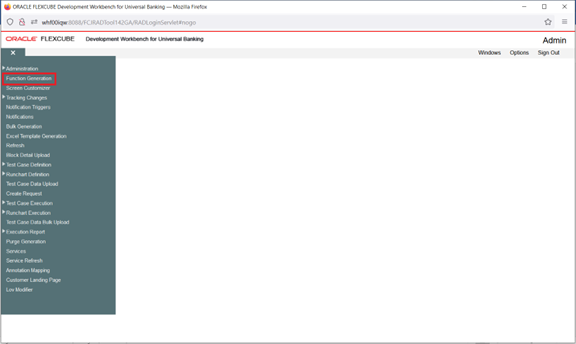

    Figure 2-1 Function Generation


    Description of Figure 2-1 follows
    Description of "Figure 2-1 Function Generation"

  2. On the Function Generation screen, specify the following fields in the Header section for Online Forms.
    For more information on fields, refer to the field description table.

    Table 2-1 Function Generation - Field Description

    Field Description
    Function ID

    It is the name of the Online Form.

    Online Form name has to have the third character as D. Ideally, the length of thename should be 8 characters

    Example: UTDTXN01 etc. are valid online form names.
    Function Category

    It is the Online Form Category.

    It has to be Transaction.

    Footer Template
    Select the footer template from the drop-down list.
    • None
    • Maint Audit
    • Maint Process
    • Process

    Footer template can be provided as required.

    Note for Transaction screens, footer template has to be selected as None.

    System does not provide any default template for transaction screens; hence developer has to design thefooter portion of the screen manually.

    Developer has to make sure that footer designedhas generic fields like transaction status (TXNSTAT), authorization status (AUTHSTAT) etc.,

    For Online Process Flow Screens footer template should be selected as Process.

    Function Type Parent and child functionality is supported for online forms.

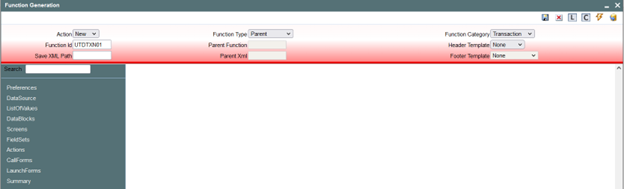

    Figure 2-2 Online Form header Information


    Description of Figure 2-2 follows
    Description of "Figure 2-2 Online Form header Information"

Parent topic: Screen Development
