2.2 Preferences

This topic describes about defining the preferences for Online Forms.

1. Specify the menu details in the Preferences screen.

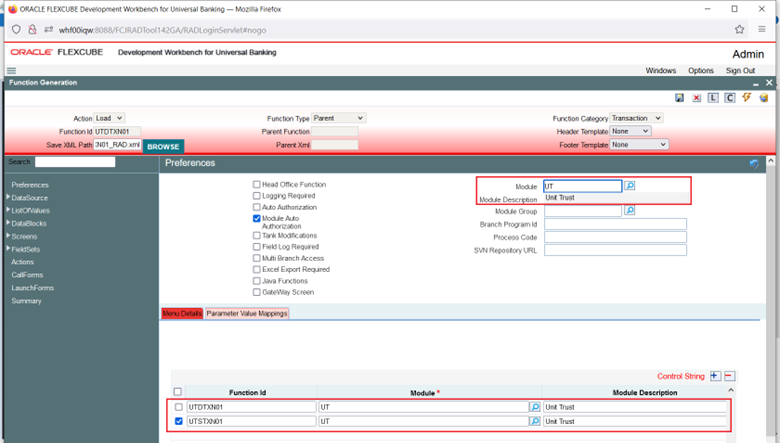

   Figure 2-3 Online Form Preferences





   Description of "Figure 2-3 Online Form Preferences"



2. On the Preferences screen, specify the following fields in the Header section for Online Forms.
   For more information on fields, refer to the field description table.

   Table 2-2 Preferences - Field Description

   Field	Description
   Module	Module name is a mandatory field and has to be provided. It is recommended that the first two letters of the function id is kept as same as the module name. Naming of the generated package will be derived from the module code maintained.

3. Script for the following tables will be generated by Workbench (menu details) which are essential for launching of an Online screen.
   • SMTB_MENU
   • SMTB_FCC_FCJ_MAPPING
   • SMTB_FUNCTION_DESCRIPTION
   • SMTB_ROLE_DETAILS

   Type string of the Online screens will be generated as O in smtb_menu table.

4. Transaction specific action codes has to checked in the control string whichever applicable.
   Example: LIQUIDATE, ROLLOVER, REVERSAL etc.
