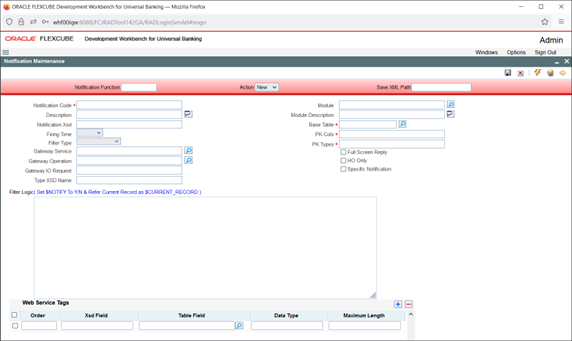

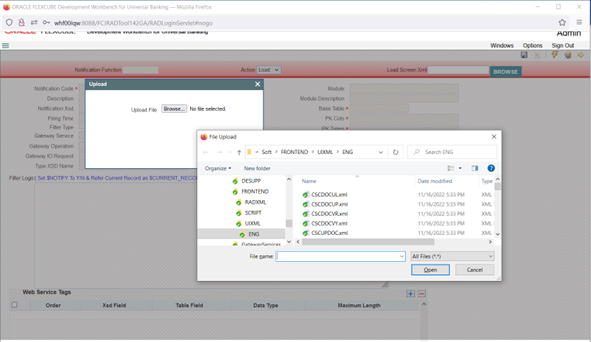

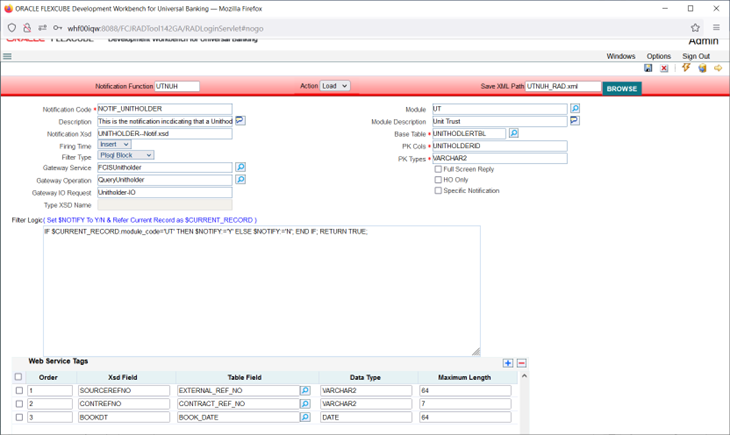

| Action |
Select either New or
Load action. The
New option is to create a new
notification and the Load option is
used to modify the existing one.
|
| Save XML Path |
Specify the path to save notification XML.
This would be considered only if the Save Mode is Client and
Work Directory specified as
$CURRENT_DIRECTORY.
|
| Notification
Function |
Specify the notification function-id
name.
Note: Naming
Conventions- Notification Function must have maximum 8
characters and the 3rd letter must be
N.
For Example:
FTNCONON |
| Notification
Code |
Enter the notification code to which we need to capture
values. This is a mandatory field.
Note: Recommended Convention for Notification
Codes
NOTIF_<Module Code>_<Description>
For Example:
NOTIF_LD_CONTRACT
This is the notification indicating that an LD contract
has been created/modified.
|
| Description |
This is an information field.
The description of the notification has to be provided in
the field.
|
| Module |
This attribute signifies the module on which
the notification is based. |
| Module
Description |
This is an information field.
Module Description that would be defaulted from Module
LOV.
|
| Notification
XSD |
Notification XSD name will have to be provided in the
corresponding Field.
Note: The naming convention to be followed while
naming Notification XSD is as follows: [Module Name] –
[Notification Description] – Notif.xsd
For Example:
FT-Contract-Notif.xsd
The Notification XSD has to be provided only if no
Gateway Web Service Query Operation is configured to the
Notification.
|
| Base Table |
Select the base table on which trigger needs
to be applied. |
| Firing Time |
Indicates the Operation on the base Table
for which Notifications have to be sent. Options available
are Insert,
Update, or both.
|
| Filter Type |
This attribute can take the following values.
- Where Clause
- Plsql Block
|
| Pk Cols |
Enter Primary key columns of the Base
Table. |
| Pk Types |
Enter the Primary key field Data Types.
Provide details of Gateway Service, Operation, Type XSD
Name, and Full-Screen Reply if a Query Web Service has
to be mapped to the Notification.
|
| Gateway
Operation |
The gateway operation name to execute the
query for the mentioned Service. |
| Gateway
Service |
The gateway service is to be used to get the
full-screen response. |
| Gateway IO
Request |
The gateway IO request node to be used in
querying operations. |
| Type XSD Name |
This field has to be entered if Notification is mapped to
a Service and Request.
The name of the Master Type XSD for the service and
operation has to be provided here. This can be found in
the included portion of the Request Msg XSD of
particular Service-Operation.
For Example:
LC-Contract-Types.xsd
|
| Full screen
Reply |
This attribute decides whether a full screen
or primary key notification response is to be sent. This is
applicable only if gateway Service details are
provided. |
| HO only |
This attribute is used to send notifications
only from the head office. |
| Filter Logic |
The filter logic decides whether the
notification needs to be sent or not. This can be a simple
where-clause on the base table or a complex pl/sql
block. |
| Web service
Tags |
The columns selected from the base table as
part of web service tags will be used to send the
full-screen notification response. These tags define the
elements of Notification XML when no Query service is mapped
to it. |
