4.5 Online Interface Execution

This topic describes the systematic instructions to execution online interfacel.

1. On Home screen, type UTSONLIN in the text box, and click Next.
   The Online Interface Execution screen is displayed.

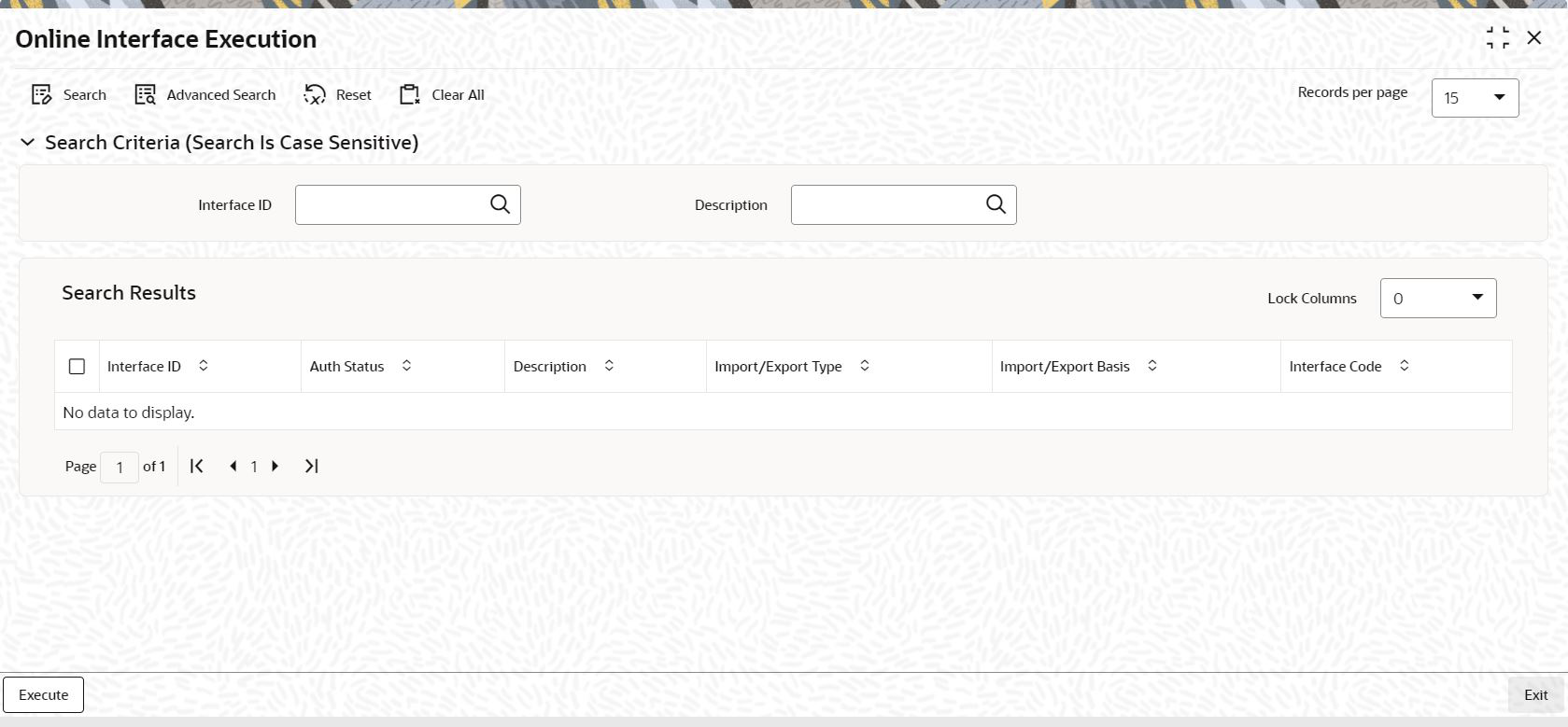

   Figure 4-6 Online Interface Execution





   Description of "Figure 4-6 Online Interface Execution"



2. Specify any or all of the details corresponding to the message you want to retrieve.
   The system uses your specifications to as search criteria to query the database and retrieve the record as specified.
3. On Online Interface Execution screen, click New and specify the details.
   For more information on fields, refer to the field description table.

   Table 4-7 Online Interface Execution - Field Description

   Field	Description	Attributes
   Interface ID	Click the icon and select the interface ID from the list.	Alphanumeric; 16 Characters; Optional
   Description	Click the icon and select the description from the list.	Display; Alphanumeric; 255 Characters; Optional

   All the interface definitions available for processing are displayed in the Available Interface Definitions box. You can select any or all of these to be executed by highlighting them in the Available box and using the arrow buttons to move them to the Selected Interface Definitions box. After you have made the desired selections, click the Execute button. You must indicate that you want to continue with the processing. The selected interfaces are processed, and the system displays a message to indicate successful completion of the processing. If any errors result, you can view the same using the View Interface Error Log menu item in the Data Entry menu of the Fund Manager component.

   Once tanking is enabled, the system will not fetch any record in the summary screen.

   To exit the screen without processing any selected interface definitions, click the Close button.

   Note:

   • The system will not support the processing of multiple files at the same time.
   • If client country parameter INTERFACEMAPREQ is ON, then all Interfaces will be listed for execution as per Interface Mapping.
   • If client country parameter INTERFACEMAPREQ is OFF, then all Interfaces will be listed for execution.
