2.4 Swift Message Setup Summary

This topic provides the systematic instructions to perform the basic operations on the selected records.

Retrieve Swift Message Setup Record

  1. On Home screen, type UTSSWMSG in the text box, and click Next.
    The Swift Message Setup Summary screen is displayed.

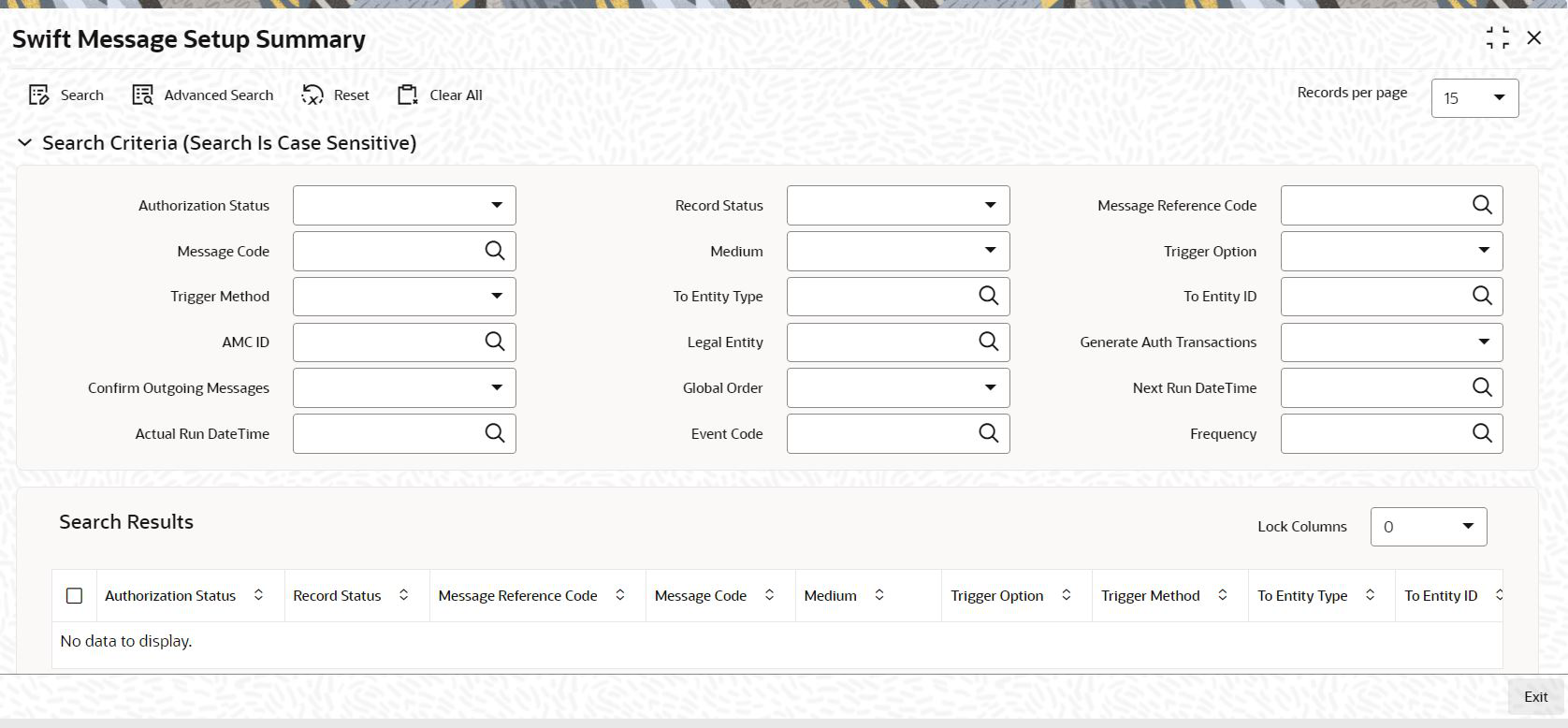

    Figure 2-8 Swift Message Setup Summary


    Description of Figure 2-8 follows
    Description of "Figure 2-8 Swift Message Setup Summary"

  2. On Swift Message Setup Summary screen, specify any or all of the following details in the corresponding fields:
    • Authorization Status - If you choose the status, then the records matching the specified status are retrieved. If you do not choose any option, then all the records are retrieved.
    • Record Status
    • Message Reference Code
    • Medium
    • Trigger Method
    • To Entity ID
    • Legal Entity
    • Confirm Outgoing Messages
    • Next Run Date Time
    • Event Code
    • Message Code
    • Trigger Option
    • To Entity Type
    • AMC ID
    • Generate Auth Transactions
    • Global Order
    • Actual Run DateTime
    • Frequency
  3. Click Search button to view the records.
    All the records with the specified details are retrieved and displayed in the screen.

    Note:

    You can also retrieve the individual record detail from the detail screen by querying in the following manner:
    • Press F7
    • Input the Message Reference Code
    • Press F8
  4. Perform Edit, Delete, Amend, Authorize, Reverse, and Confirm operations by selecting the desired operation from the Action list. You can also search a record by using a combination of % and alphanumeric value.
    You can search the record for Message Reference Code by using the combination of % and alphanumeric value as follows:
    • Search by A%: System will fetch all the records whose Message Reference Code starts from Alphabet ‘A’. Ex: AGC17, AGVO6, AGC74 and so forth.
    • Search by %7: System will fetch all the records whose Message Reference Code ends by numeric value’ 7’. Ex: AGC17, GSD267, AGC77 and so forth.
    • Search by %17%: System will fetch all the records whose Message Reference Code contains the numeric value 17. Ex: GSD217, GSD172, AGC17 and so forth.

    For more infrormation on operations, refer the following:

Parent topic: Process SWIFT Messages
