1.64.3 To Instrument Tab

This topic explains the Instrument Details of Switch Detail screen.

1. On Switch Detail screen, click Instrument Details tab to view the following details.
   The To Instrument details tab are displayed.

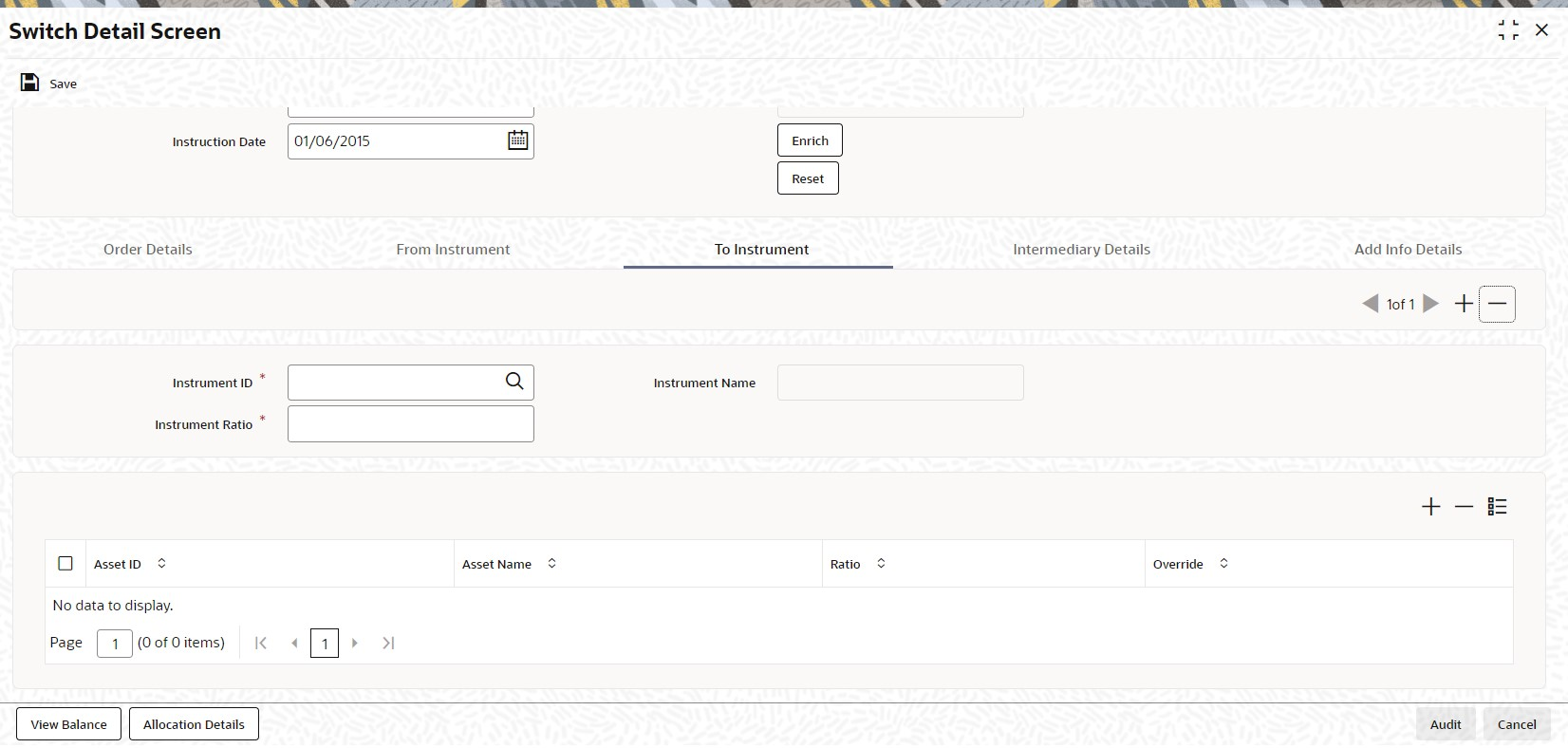

   Figure 1-112 To Instrument





   Description of "Figure 1-112 To Instrument"



2. On the To Instrument Details tab, specify the fields.
   For more information on fields, refer to the field description table.

Table 1-94 Instrument Details - Field Description.

Field	Description
Instrument ID	Alphanumeric; 16 Characters; Mandatory Specify the instrument ID. Alternatively, you can select instrument ID from the option list. The list displays all valid instrument ID maintained in the system.
Instrument Name	Display The system displays the name of the instrument for the selected instrument ID.
Instrument Ratio	Numeric; 5 Characters; Mandatory Specify the numeric ratio.
Asset ID	Alphanumeric; 16 Characters; Optional Specify the asset ID. Alternatively, you can select asset ID from the option list. The list displays all valid asset ID maintained in the system.
Asset Name	Display The system displays the name of the selected asset ID.
Ratio	Numeric; 5 Characters; Optional Specify the ratio.
Override	Display The system displays the override status.
