1.2.12 Email Driver Configuration

This topic explains the stps to configure the email driver.

1. Log in to EM console.
2. Navigate to User Messaging Service folder.
3. Right click on the usermessagingdriver-email (soa_server1).
4. Click on the Email Driver Properties.
   The usermessagingdriver-email screen is displayed.

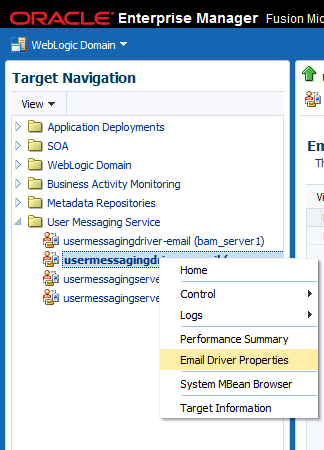

   Figure 1-109 usermessagingdriver-email





   Description of "Figure 1-109 usermessagingdriver-email"



5. Enter the Sender Address and Default Sender Address (This id will be used as sender address).
6. Enter the supported protocols (SMTP).

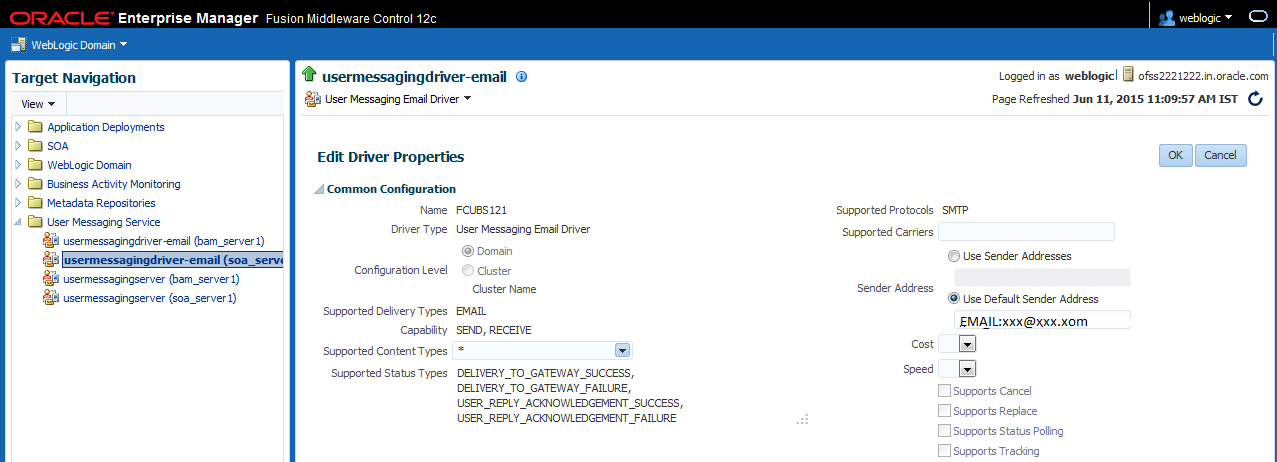

   Figure 1-110 Edit Driver Properties





   Description of "Figure 1-110 Edit Driver Properties"



7. Select the mail access protocol (IMAP) as per the mail server specification.
   The Driver-Specific Configuration screen is displayed.

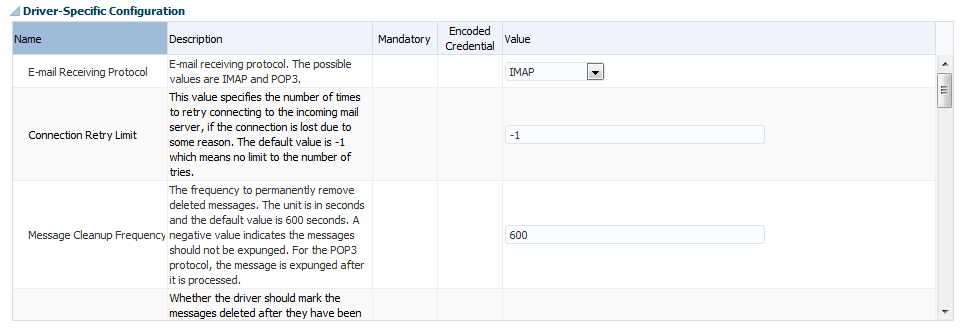

   Figure 1-111 Driver-Specific Configuration





   Description of "Figure 1-111 Driver-Specific Configuration"



8. Enter the Receive folder in the mailbox (INBOX).
9. Enter the Outgoing Mail Server hostname or IP.
10. Enter the Outgoing Mail Server Port.
11. Enter the Outgoing Default From Address.
12. Enter the Outgoing Username and Password if required.

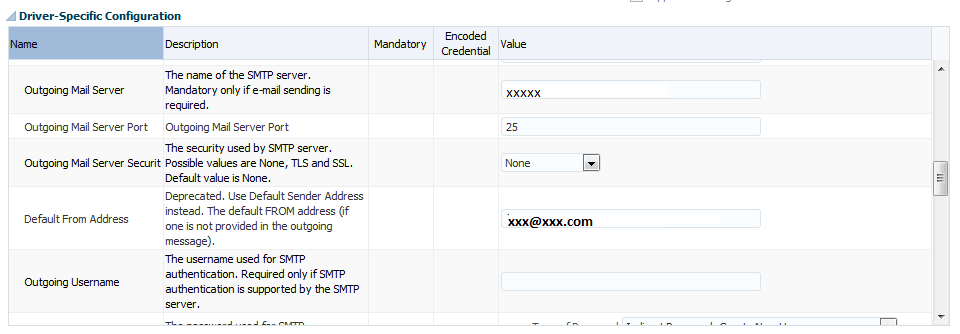

    Figure 1-112 Driver-Specific Configuration - Outgoing ID





    Description of "Figure 1-112 Driver-Specific Configuration - Outgoing ID"



13. Navigate to the SOA Administration and click on the Workflow Properties.
    The Workflow Notification Properties screen is displayed.

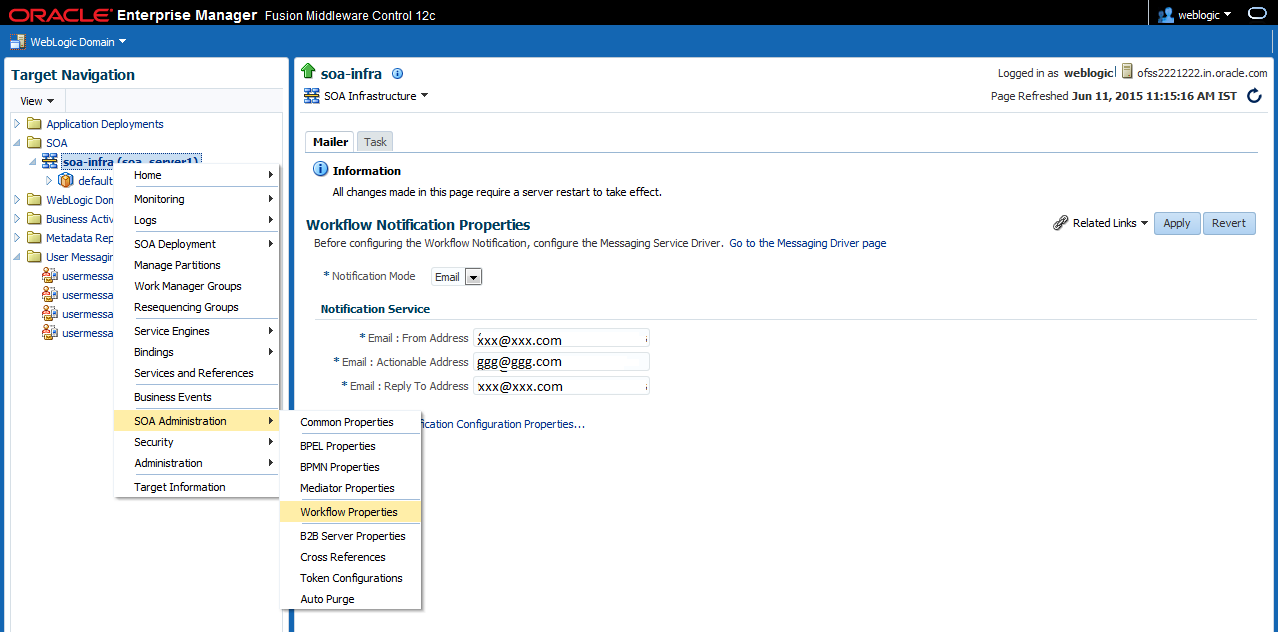

    Figure 1-113 Workflow Notification Properties





    Description of "Figure 1-113 Workflow Notification Properties"



14. Select the Notification Mode as Email/ALL from the drop-down list.
15. Enter the From Address, Actionable Address, and Reply To Address.
