1.2.13 TimeOut Settings for BPEL

This topic explains the TimeOut Settings for BPEL.

1. Login into Console (http://hostname:port/console).
   The WebLogic Server homepage is displayed.

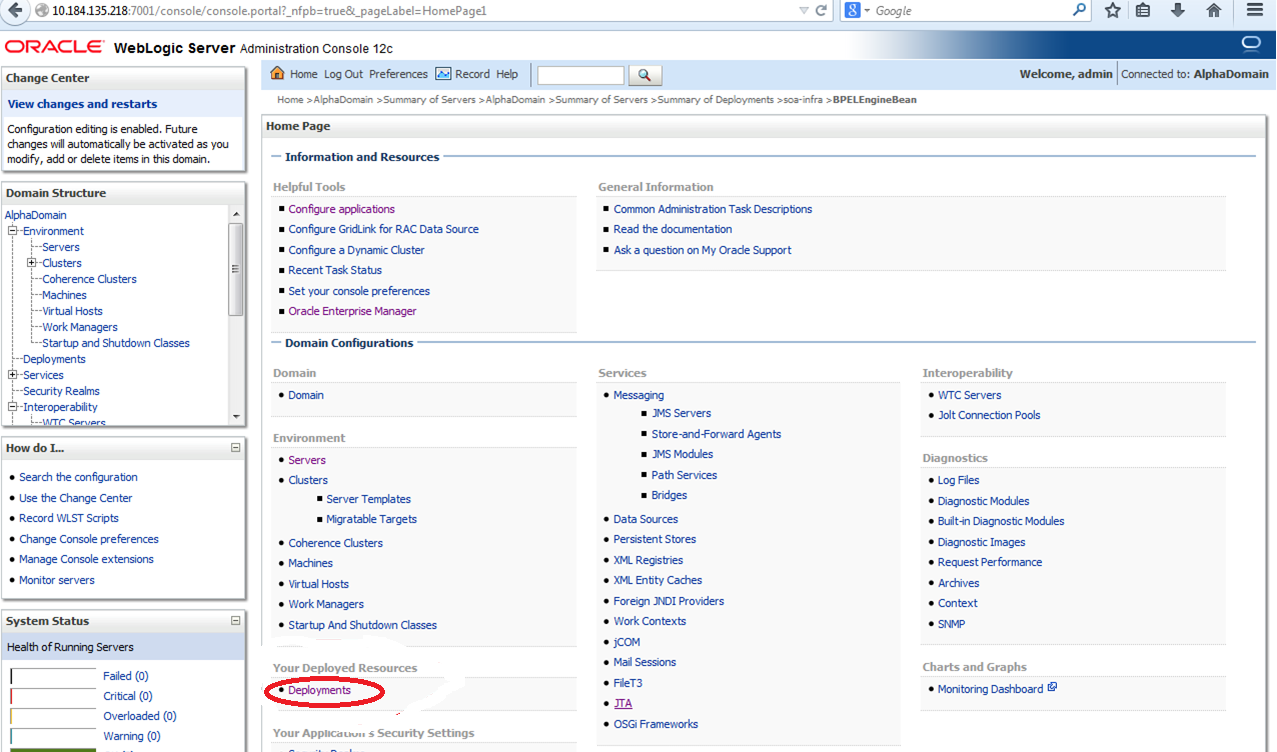

   Figure 1-114 WebLogic Server





   Description of "Figure 1-114 WebLogic Server"



2. Click on Deployments.
3. Click on the SOA-INFRA application under deployments.
   The Summary of Deployments screen is displayed.

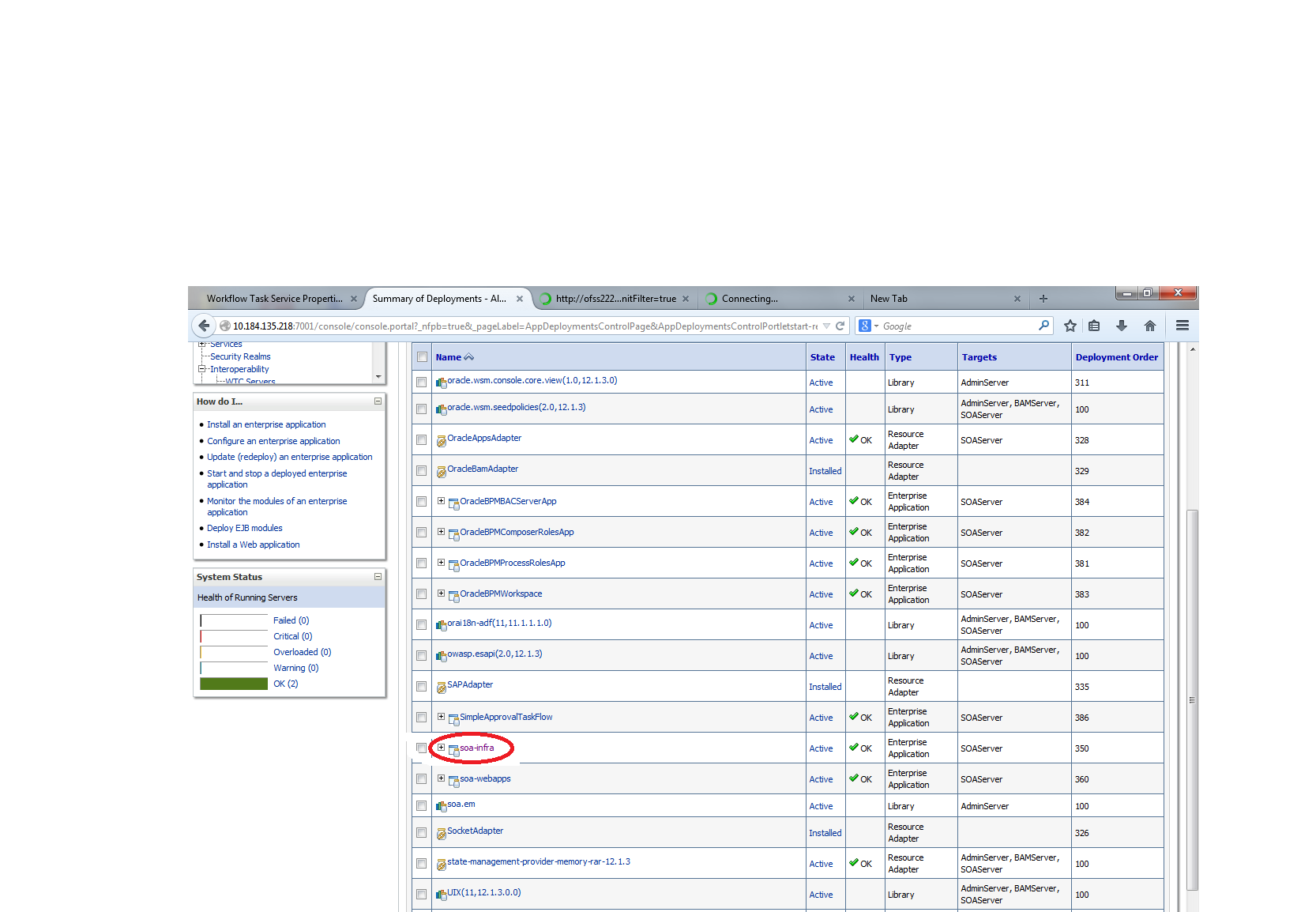

   Figure 1-115 Summary of Deployments - So-Infra





   Description of "Figure 1-115 Summary of Deployments - So-Infra"



4. Click on BPEL Engine EJB, Configuration and Set Transaction TimeOut to 300.
   The Summary of BPELEngineBean screen is displayed.

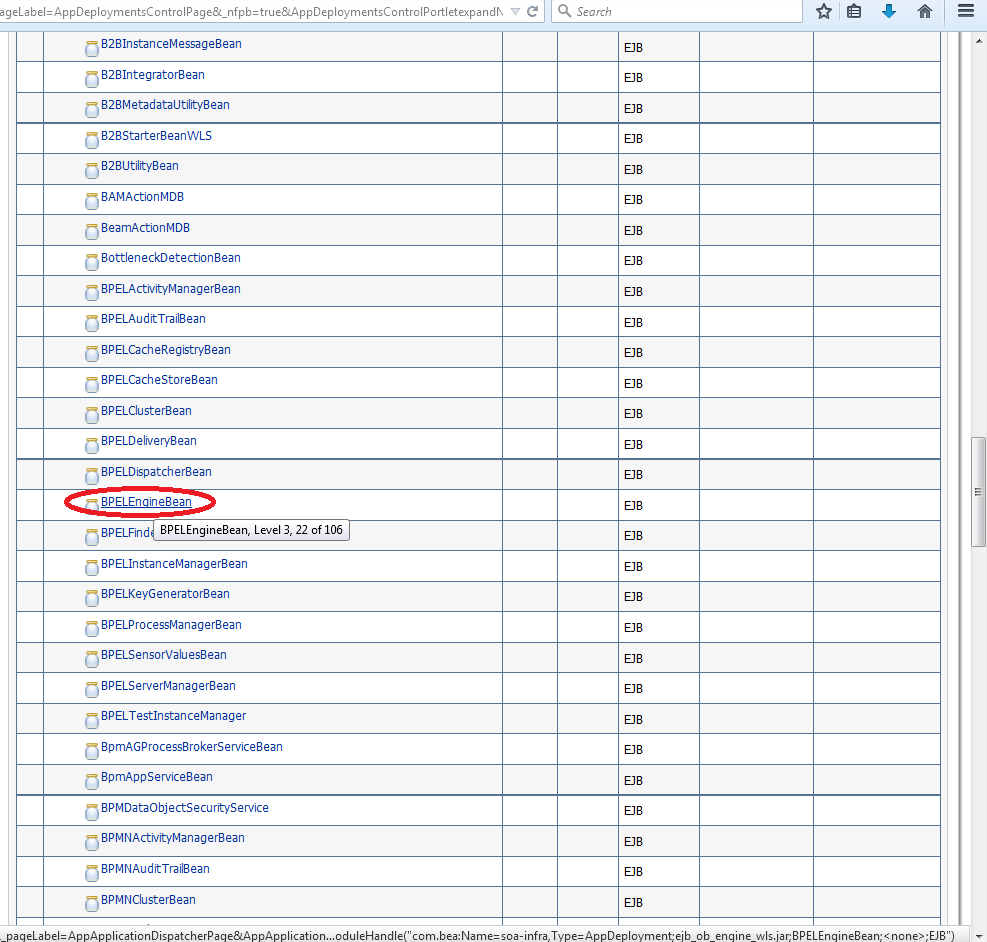

   Figure 1-116 Summary of BPELEngineBean





   Description of "Figure 1-116 Summary of BPELEngineBean"

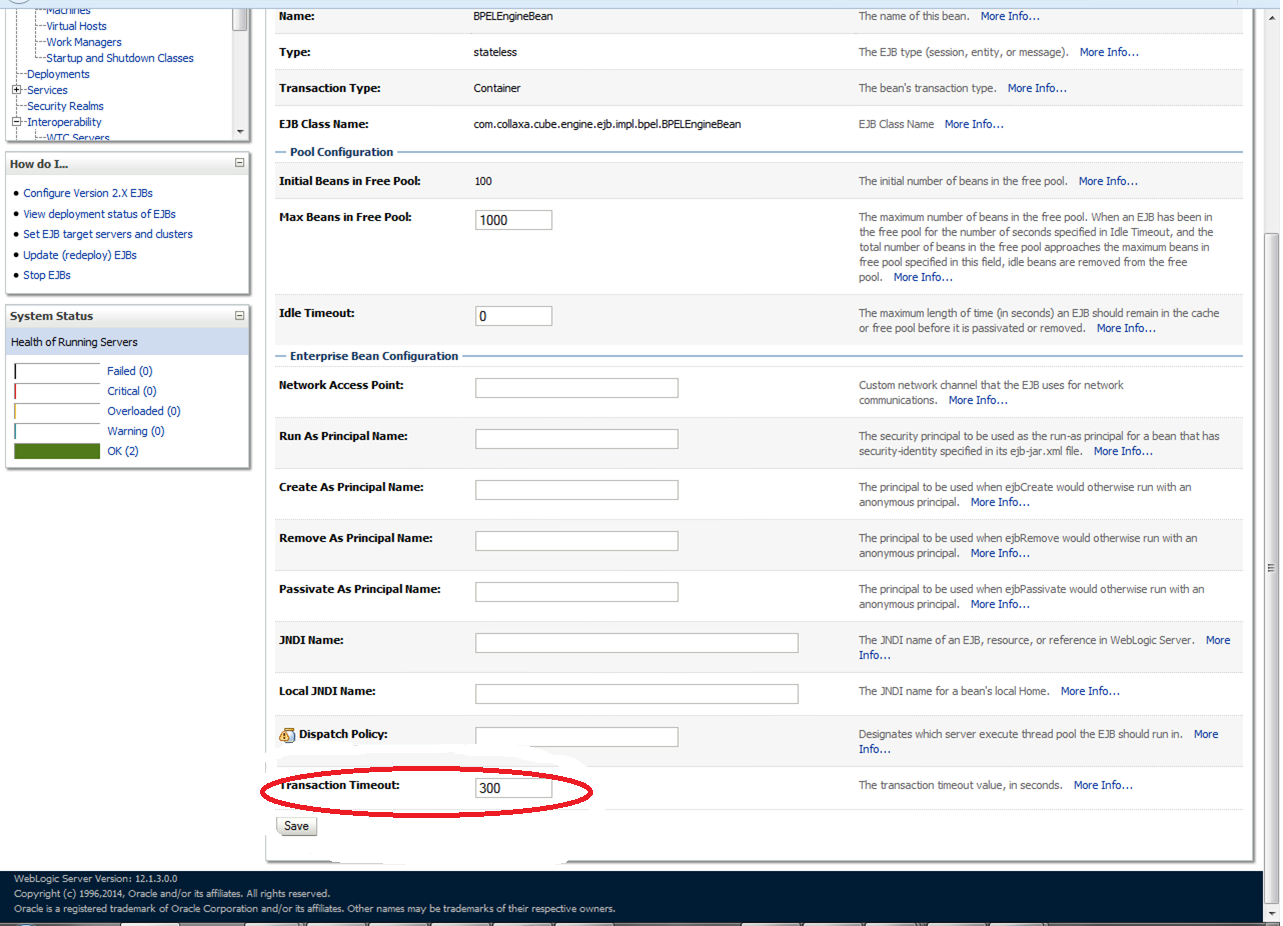

   Figure 1-117 Configuration - Transaction TimeOut





   Description of "Figure 1-117 Configuration - Transaction TimeOut"



5. Go to EJBs, click on BPELDeliveryBean, Configuration and Set Transaction TimeOut to 300.
   The Summary of BPELDeliveryBean screen is displayed.

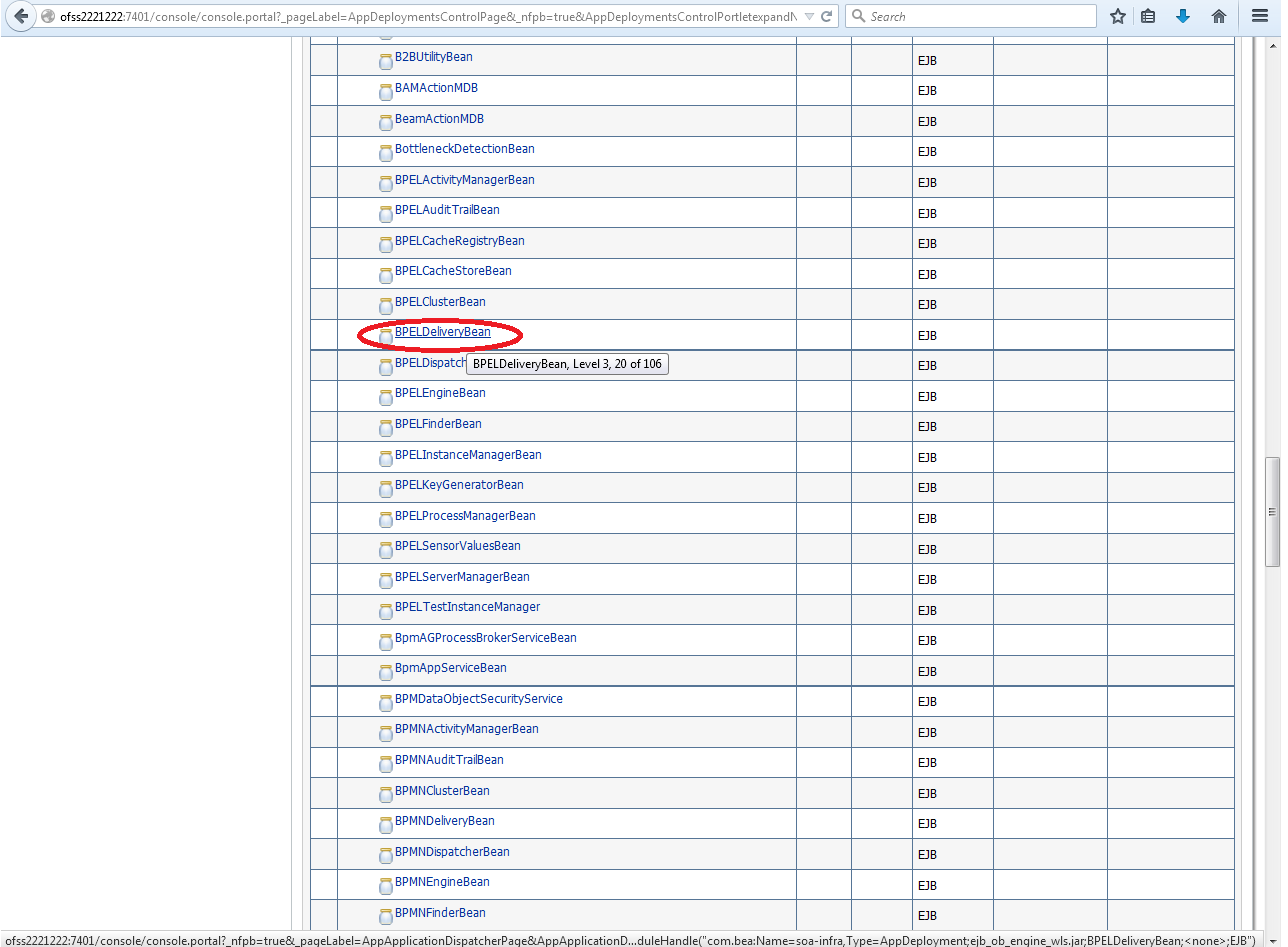

   Figure 1-118 Summary of BPELDeliveryBean





   Description of "Figure 1-118 Summary of BPELDeliveryBean"

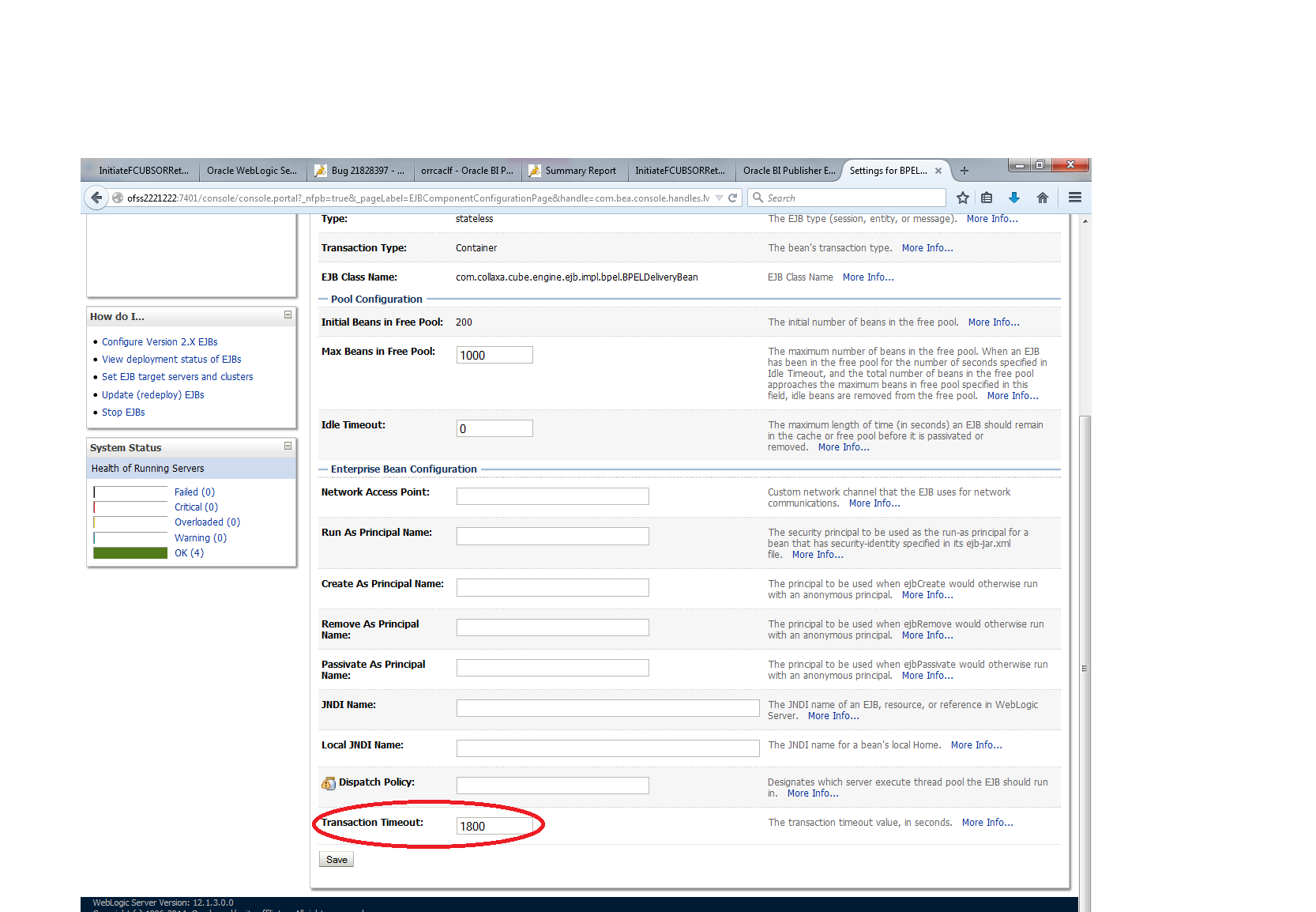

   Figure 1-119 Enterpise Bean Configuration





   Description of "Figure 1-119 Enterpise Bean Configuration"



6. Login to Console and click on JTA under Services.
7. Set the JTA timeout according to the below condition. Make sure BPELEngineBean + BPELDeliveryBean is <= JTA timeout(e.g. 300+300<=600).
   The Settings for dev_domain JTA screen is displayed.

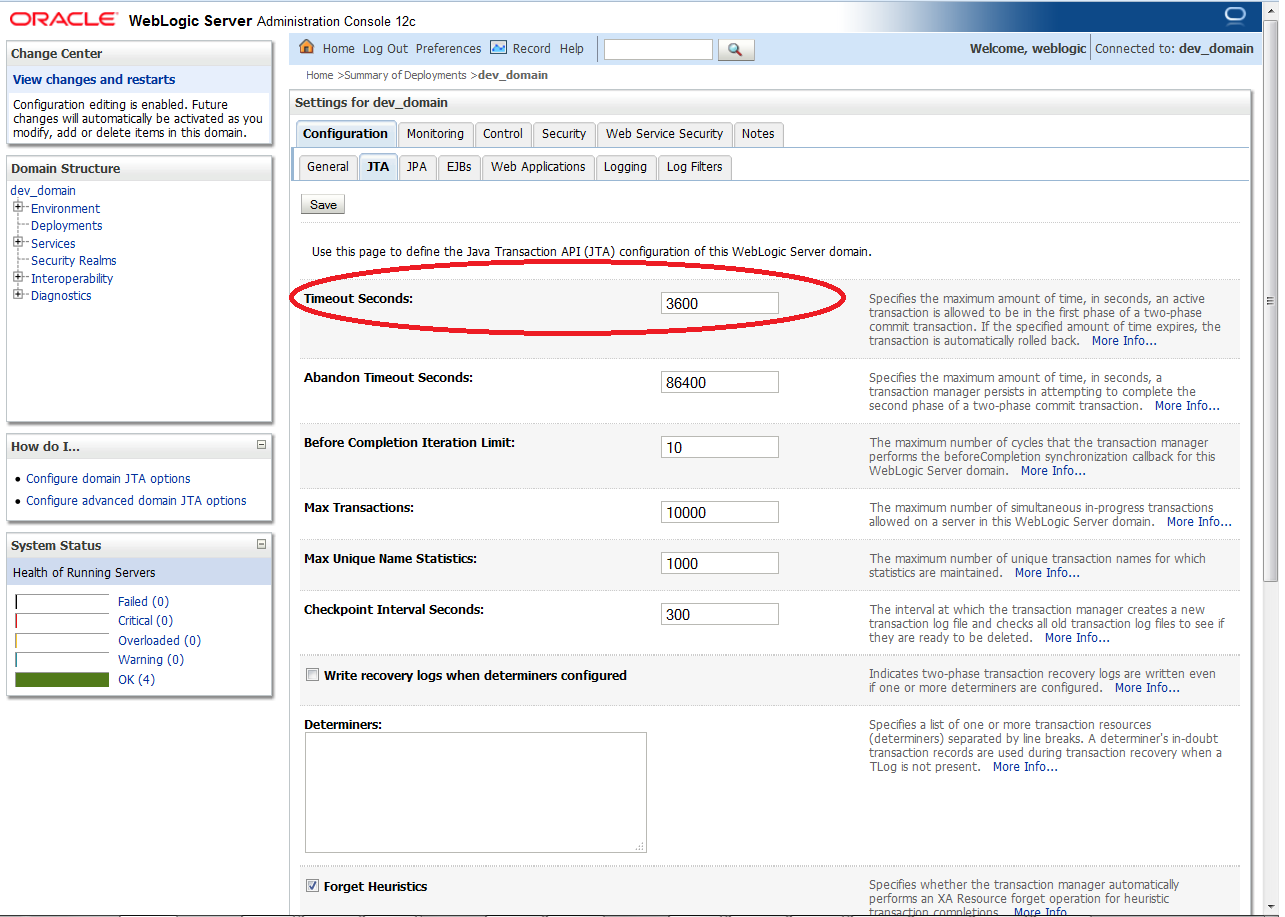

   Figure 1-120 Settings for dev_domain - JTA





   Description of "Figure 1-120 Settings for dev_domain - JTA"



8. Login in to EM console (http://host:port/em).
9. Right click on the soa-infra (SOAServer).
10. Navigate to the SOA Administration and click on the BPEL Porperties, MoreConfigpropeties and SyncMaxWaitTime. Change the SyncMaxWaitTime to 200 secs.
    The soa-infra screen is displayed.

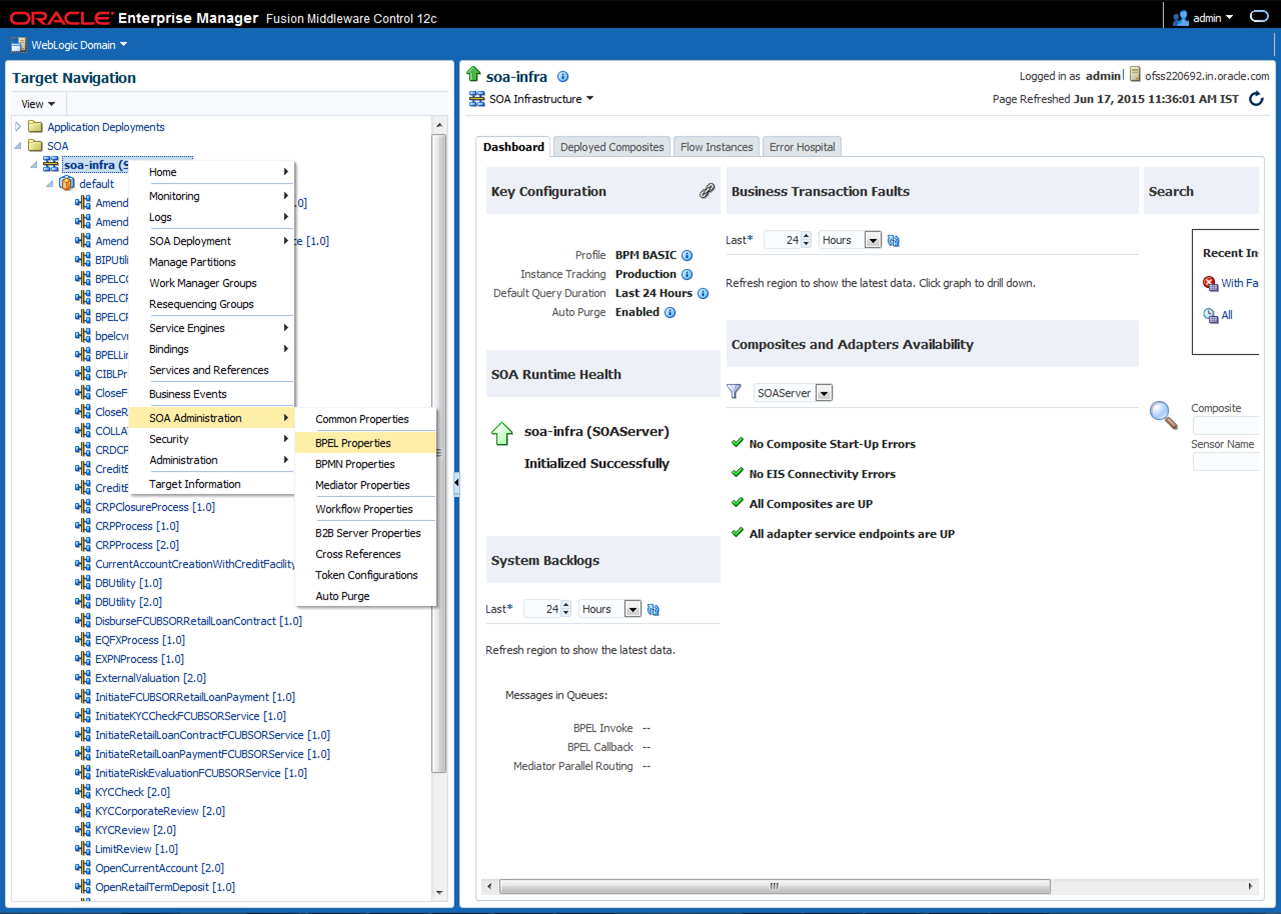

    Figure 1-121 soa-infra





    Description of "Figure 1-121 soa-infra"

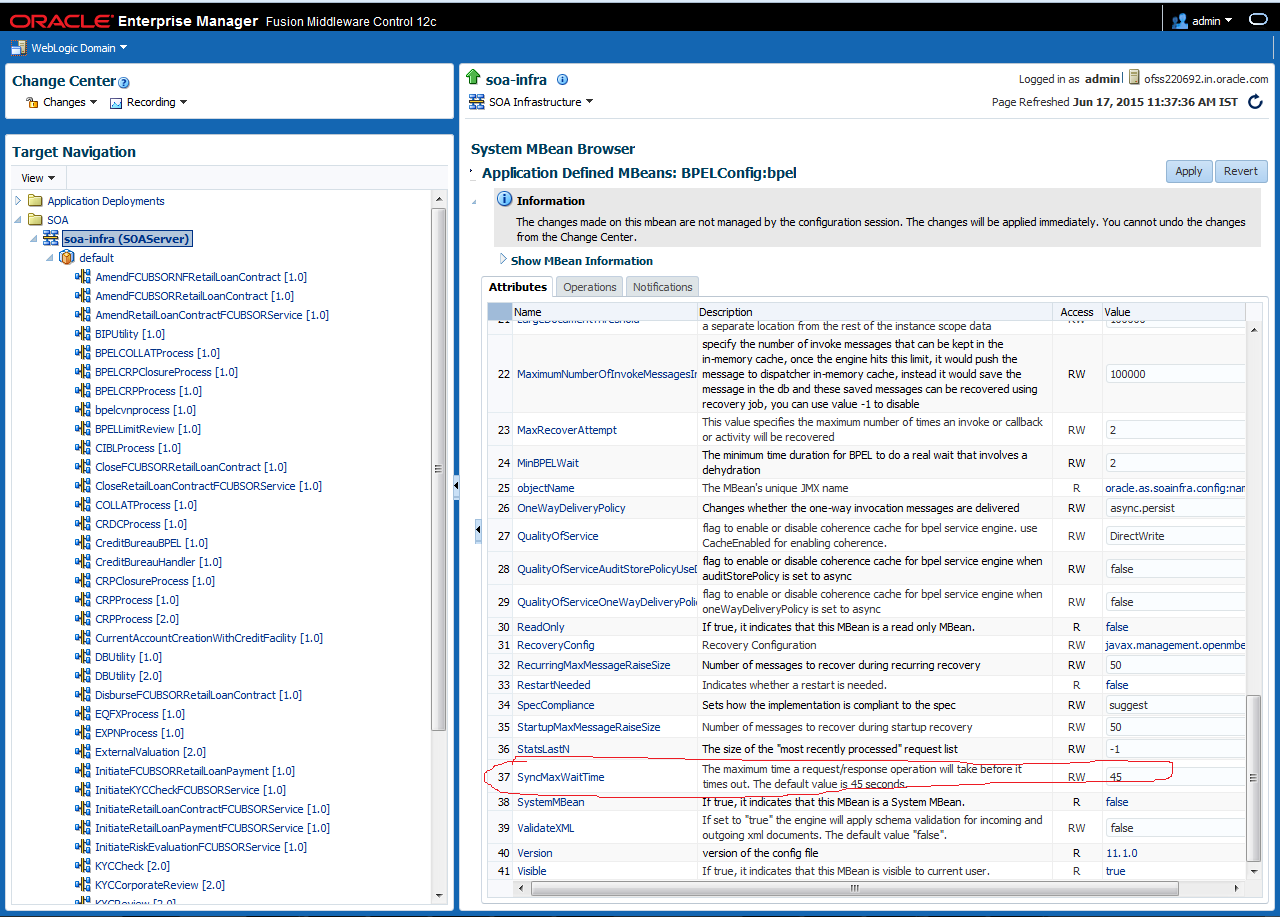

    Figure 1-122 System MBean Browser





    Description of "Figure 1-122 System MBean Browser"
