1 Create Dashboard Form

This topic describes the systematic instruction to Create Dashboard Form.

1. Log in to the Development Workbench and click the Function Generation node.
   The Development Workbench for Universal banking screen is displayed.

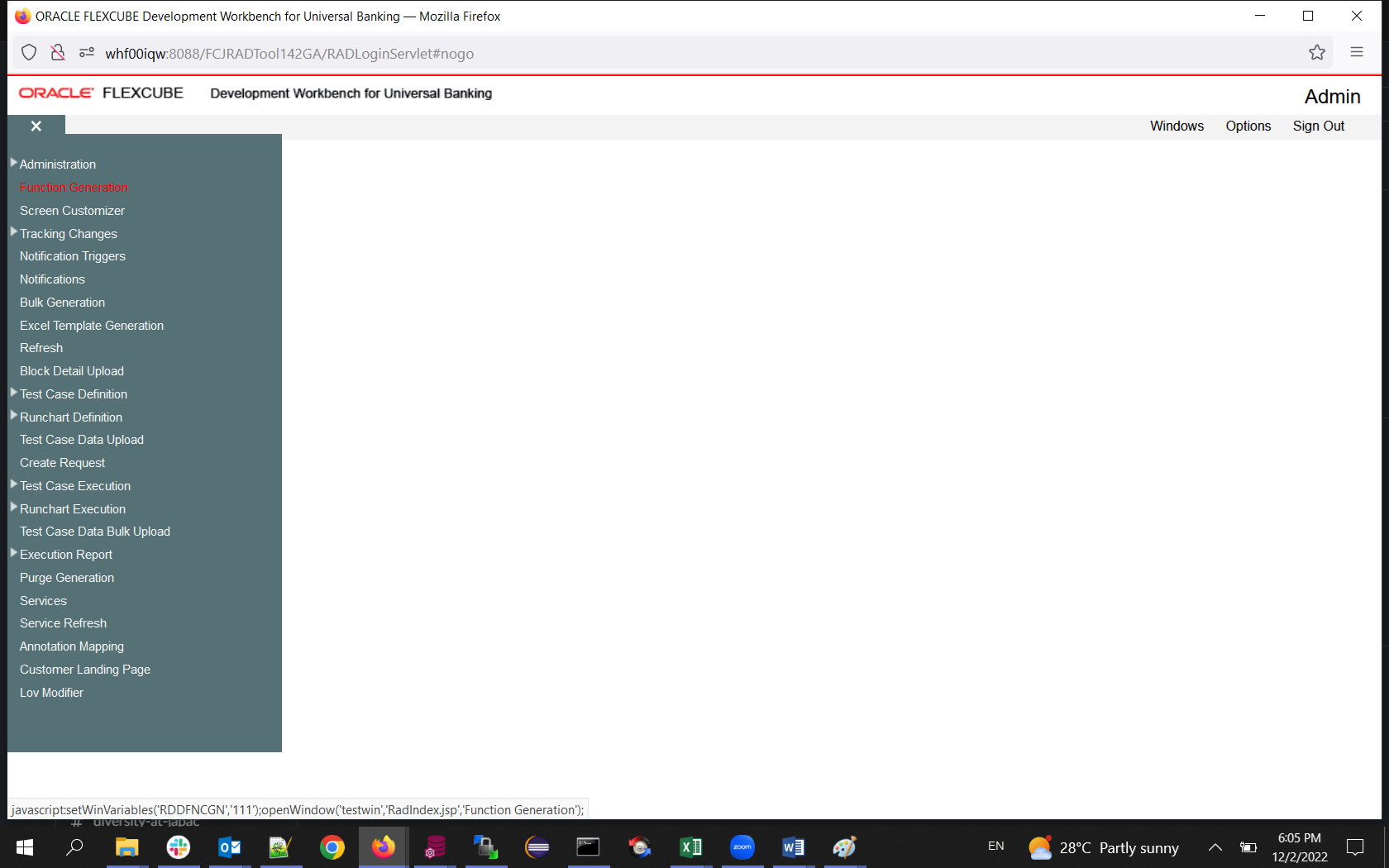

   Figure 1-1 Development Workbench for Universal banking_Function Generation





   Description of "Figure 1-1 Development Workbench for Universal banking_Function Generation"



2. On the Function Generation screen, specify the following fields in the Header section for Dashboard Forms.
   For more information on fields, refer to the field description table.

   Table 1-1 Function Generation - Field Description

   Field	Description
   Function ID	Enter Dashboard Id. It follows the same naming convention as anormal function Id.
   Action	Select the Action as New.
   Function Category	Select Function Category as DashBoard.
   Function Type	Select Function Type as Parent.

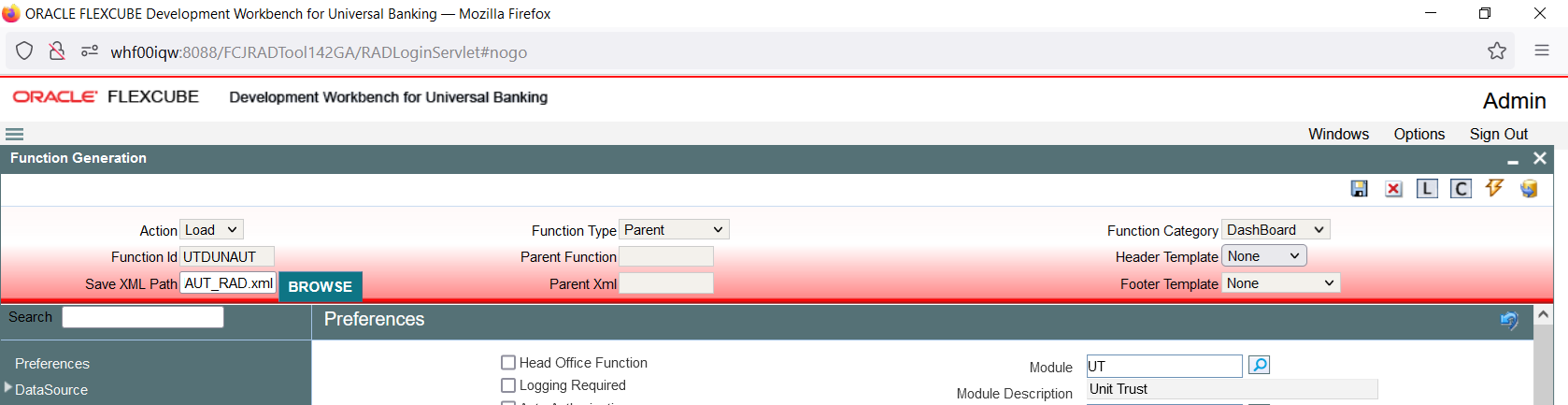

   Figure 1-2 Function Generation_Function Category





   Description of "Figure 1-2 Function Generation_Function Category"




• Preferences
  This topic describes about defining the preferences for Dashboard Forms.
• Data Sources
  This topic describes about defining the Data Sources for Dashboard Forms.
• Data Blocks
  This topic describes about defining the Data Blocks for Dashboard Forms.
• Summary
  This topic describes about the summary dashboards.
• Generation of units
  This topic describes about the Generation of units.
• User Maintenance
  This topic provides information on User Maintenance.
