1.3 Data Blocks

This topic describes about defining the Data Blocks for Dashboard Forms.

A data block must be created and the data source attached to it. Currently, dashboard screens can only have one data block.

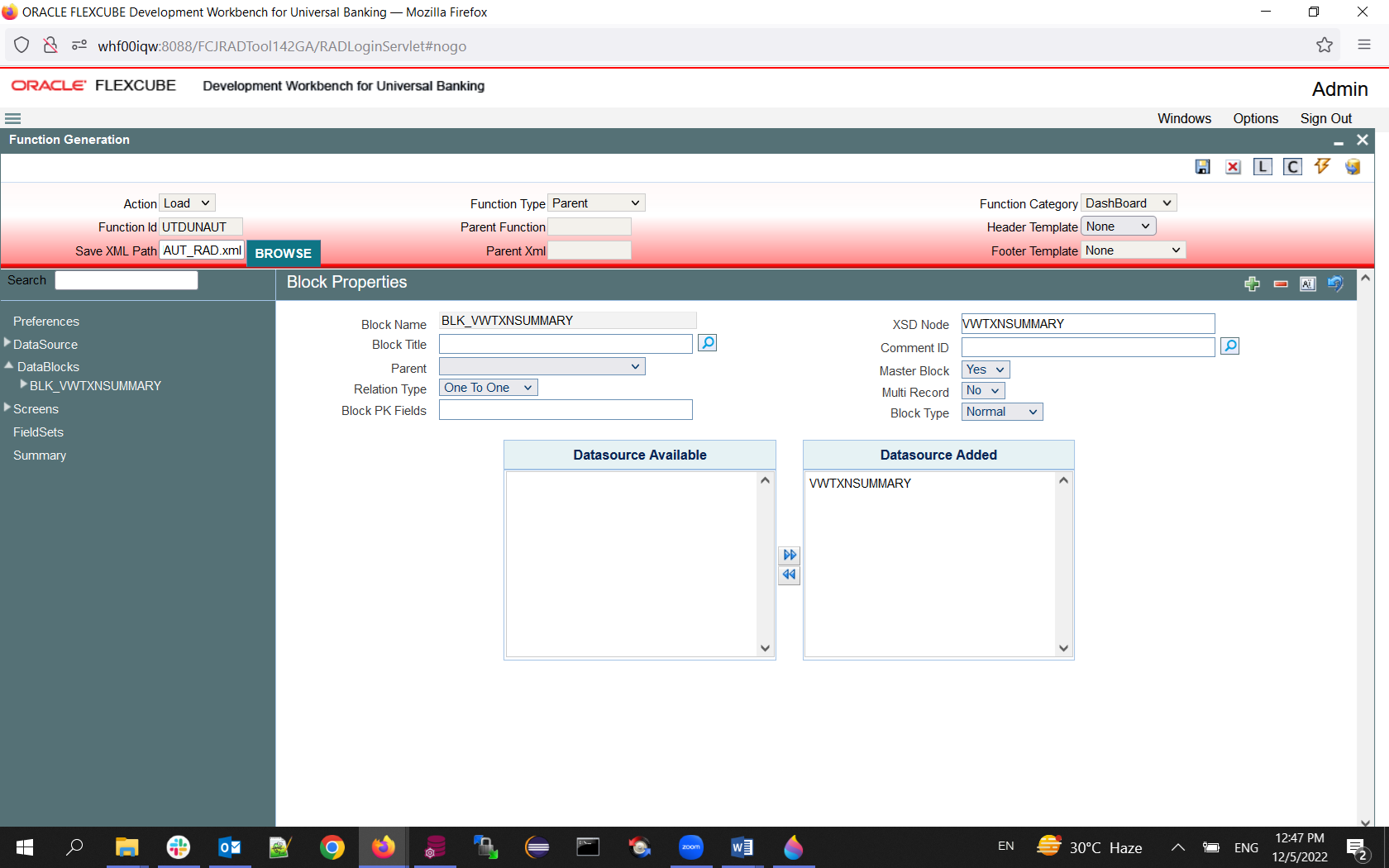

Figure 1-5 Block Properties

Description of "Figure 1-5 Block Properties"

Block Fields

Add block fields to the block as required.

If the field is a linked field (hyper link), select Display Type as Link. If the field is a linked field, dashboard link details have to be maintained in DashBoard Link tab.

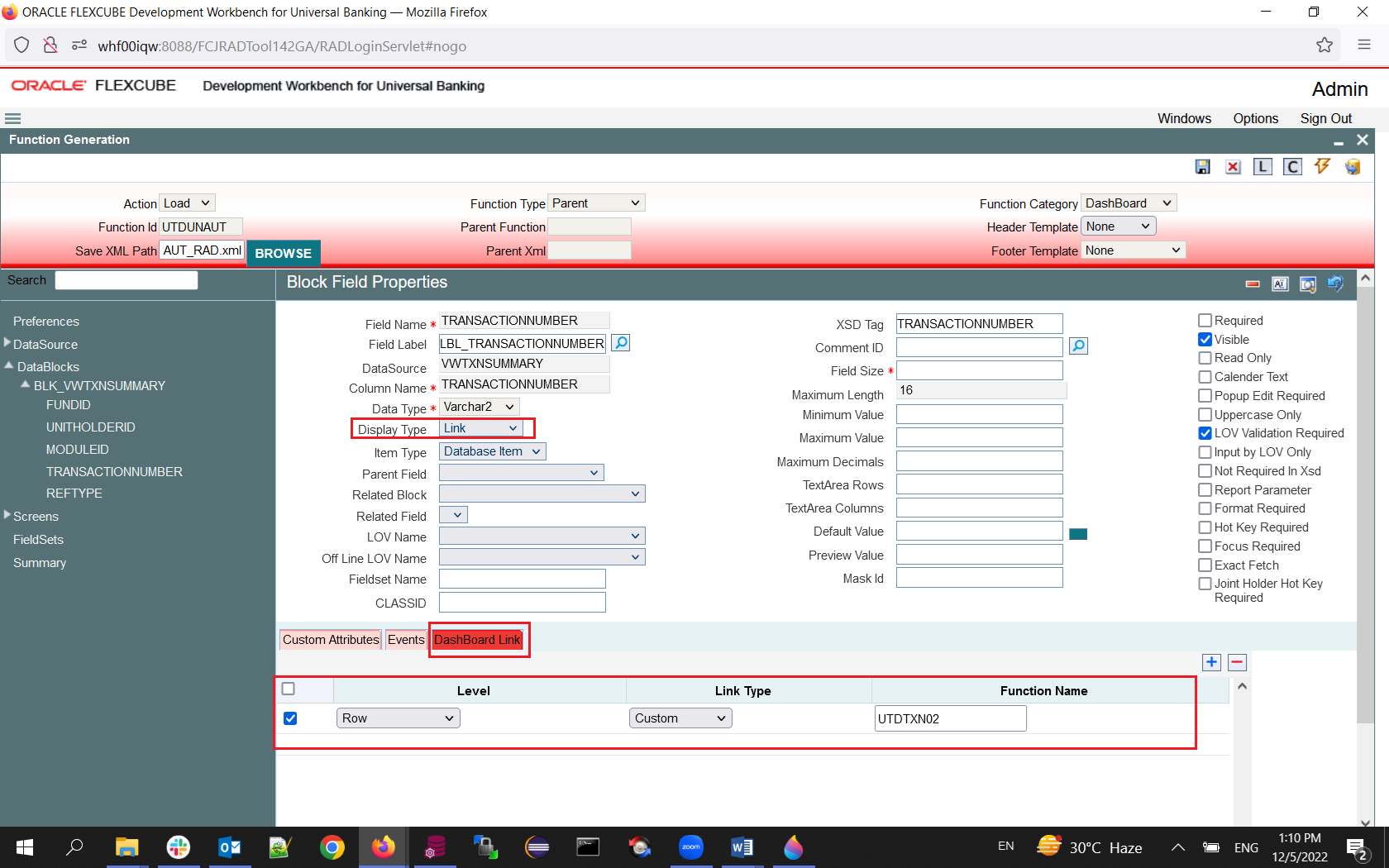

Figure 1-6 Block Field Properties

Description of "Figure 1-6 Block Field Properties"

Table 1-2 Block Fields

Field	Description
Level	Level can be either Row or Column. If it is column, then the link is limited to that column alone and different links can be provided different fields in the same row. Multiple column level links can be defined for a summary dashboard. If it is row, the link is the same across all the fields in the row. Only one row level link can be defined for a summary dashboard. If a row level link is present, then no other link should be defined in the summary dashboard.
Link Type	Link Type can be standard or custom.
Function Name	Provide the function id which has to be launched on clicking the linked field. Linked field value will be taken as the primary key for launching this function id.
