1.2.4 Configure for Multiple Providers for Multiple Entities

This topic explains to configure multiple providers for multiple entities.

1. Login to the Adminserver.
   The Oracle Weblogic Server screen is displayed.
2. Click on Security Realms.
   The Summary of Security Realms screen is displayed.

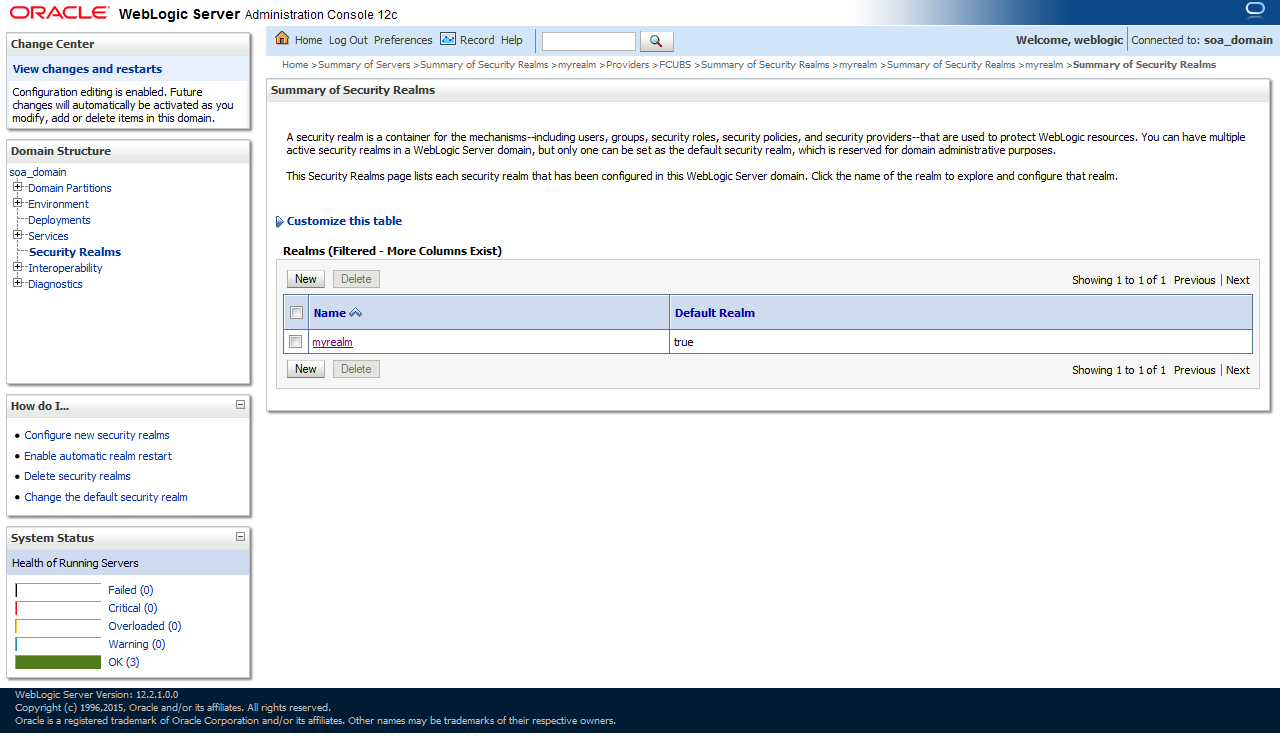

   Figure 1-8 Summary of Security Realms





   Description of "Figure 1-8 Summary of Security Realms"



3. Click on myrealms.
   The Settings for myrealms screen is displayed.

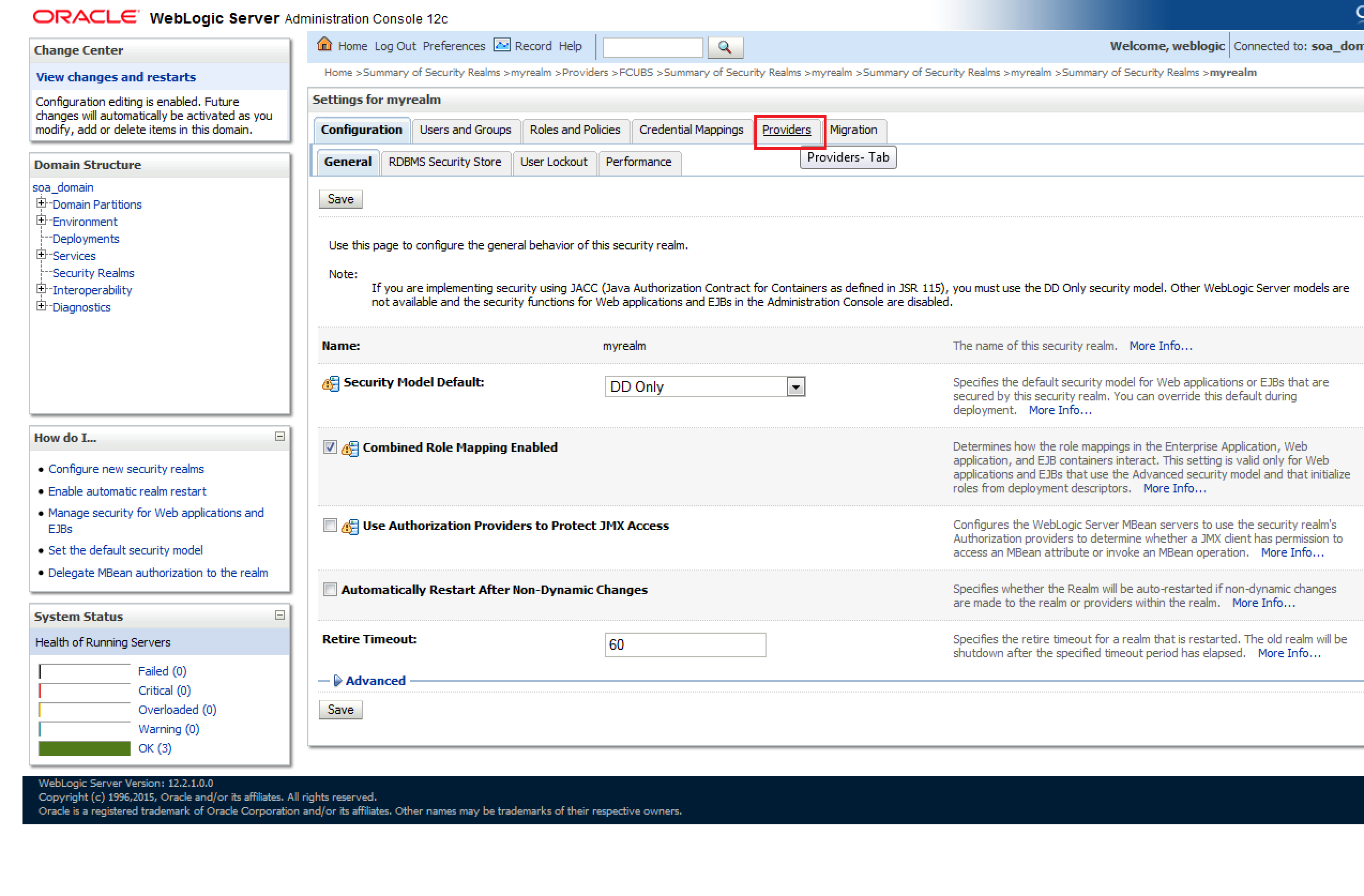

   Figure 1-9 Settings for myrealms





   Description of "Figure 1-9 Settings for myrealms"



4. Click on Providers tab.
   The Settings for myrealms - Providers screen is displayed.

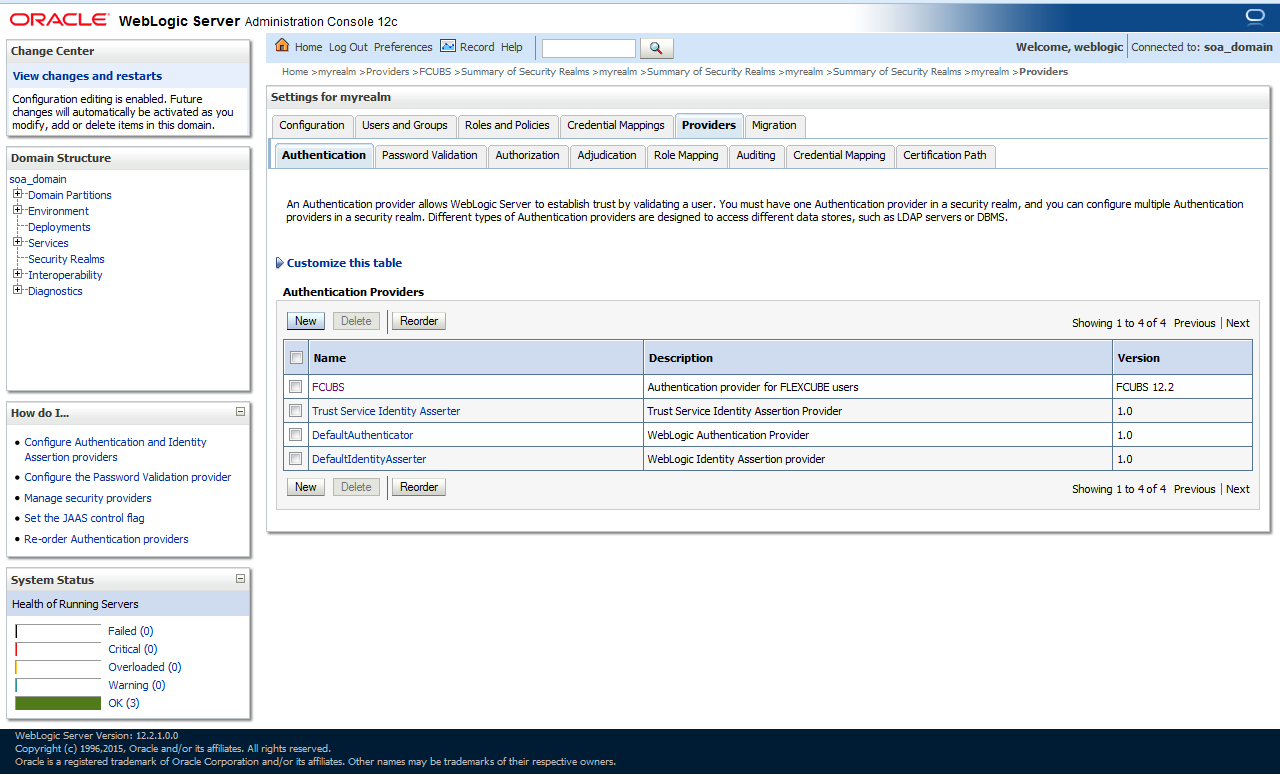

   Figure 1-10 Settings for myrealms - Providers





   Description of "Figure 1-10 Settings for myrealms - Providers"



5. Click on New.
   The Create a New Authentication Provider screen is displayed.

   Figure 1-11 Create a New Authentication Provider





   Description of "Figure 1-11 Create a New Authentication Provider"



6. Enter the Name with proper Entity Name (entity name we mapped in property file) and select the type as FCUBSUserAuthenticator and click OK.

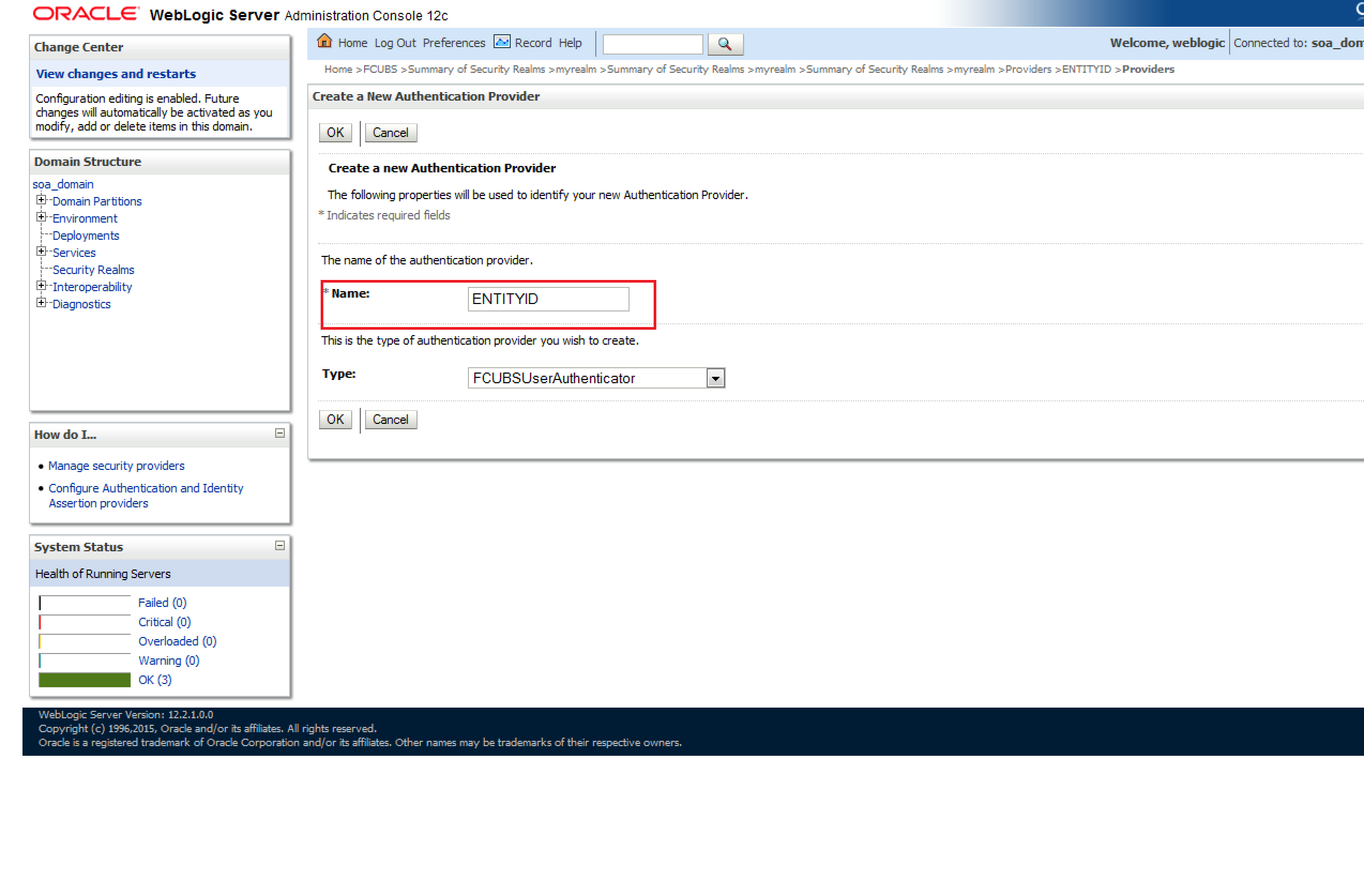

   Figure 1-12 Create a New Authentication Provider with Entity ID





   Description of "Figure 1-12 Create a New Authentication Provider with Entity ID"



7. Click on Reorder. Select the required option in Available field and click OK.
   The Reorder Authentication Providers screen is displayed.

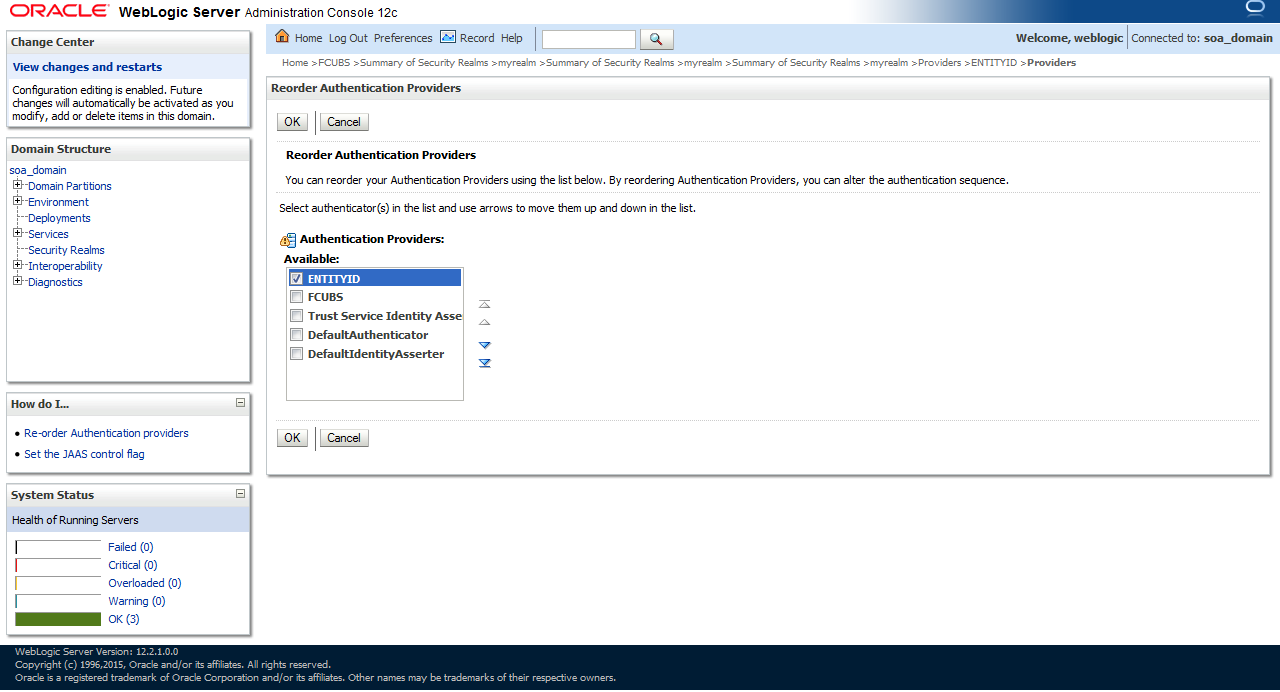

   Figure 1-13 Reorder Authentication Providers





   Description of "Figure 1-13 Reorder Authentication Providers"



8. Click on the Provider that we have created.
   The Settings for myrealms - Providers - New Provider screen is displayed.

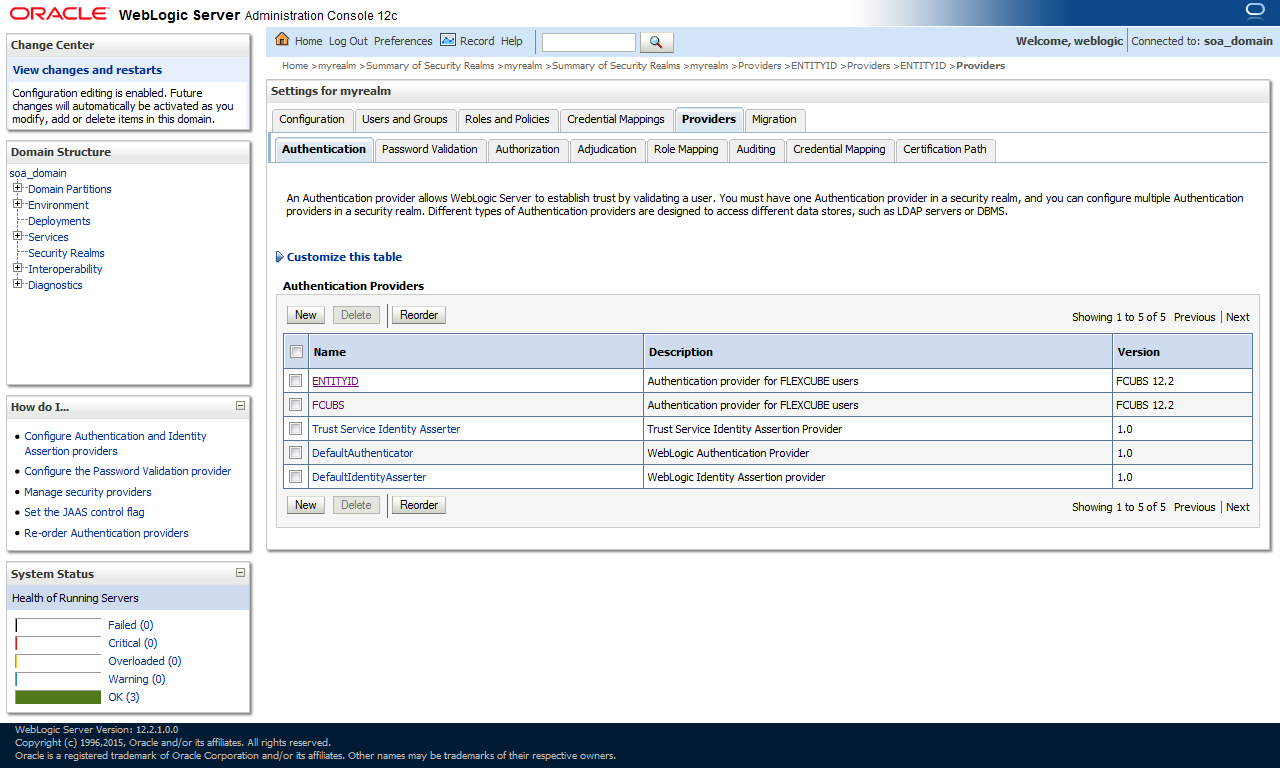

   Figure 1-14 Settings for myrealms - Providers - New Provider





   Description of "Figure 1-14 Settings for myrealms - Providers - New Provider"



9. In the common tab, select the control flag as SUFFICIENT from the list and click on Save.
   The Settings for ENTITYID screen is displayed.

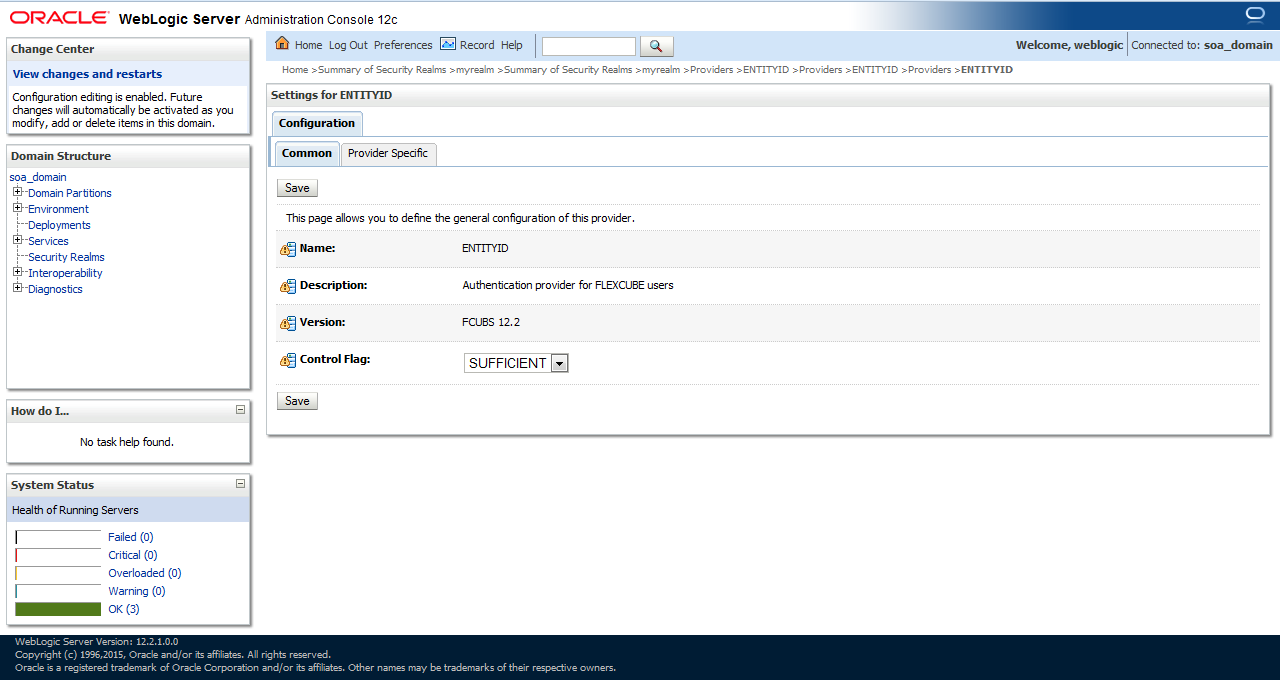

   Figure 1-15 Settings for ENTITYID - Common





   Description of "Figure 1-15 Settings for ENTITYID - Common"



10. Select the provider specific tab.
    The Provider Specific screen is displayed.

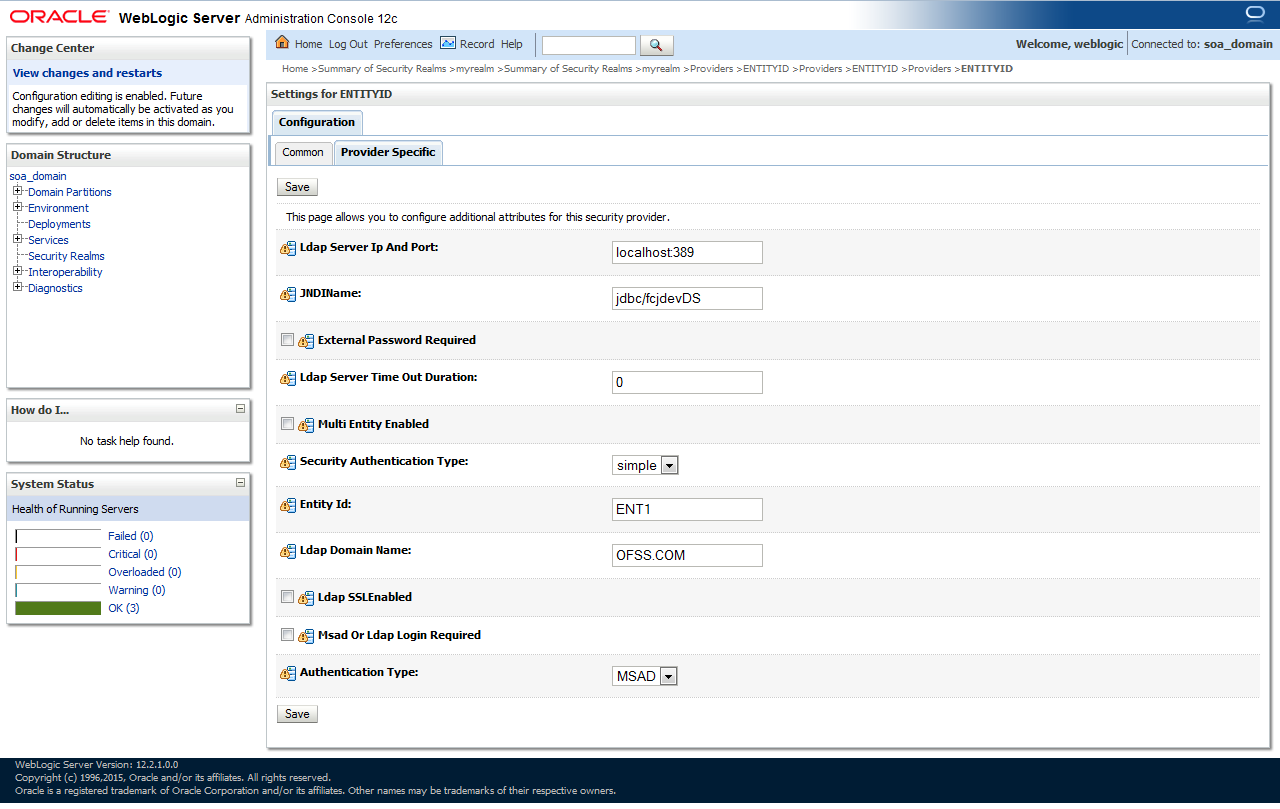

    Figure 1-16 Settings for ENTITYID - Provider Specific





    Description of "Figure 1-16 Settings for ENTITYID - Provider Specific"



11. Change the JNDI name to the Datasource JNDI name, which has mapped to the entity in the property file level, and check the Multi Entity enabled checkbox.

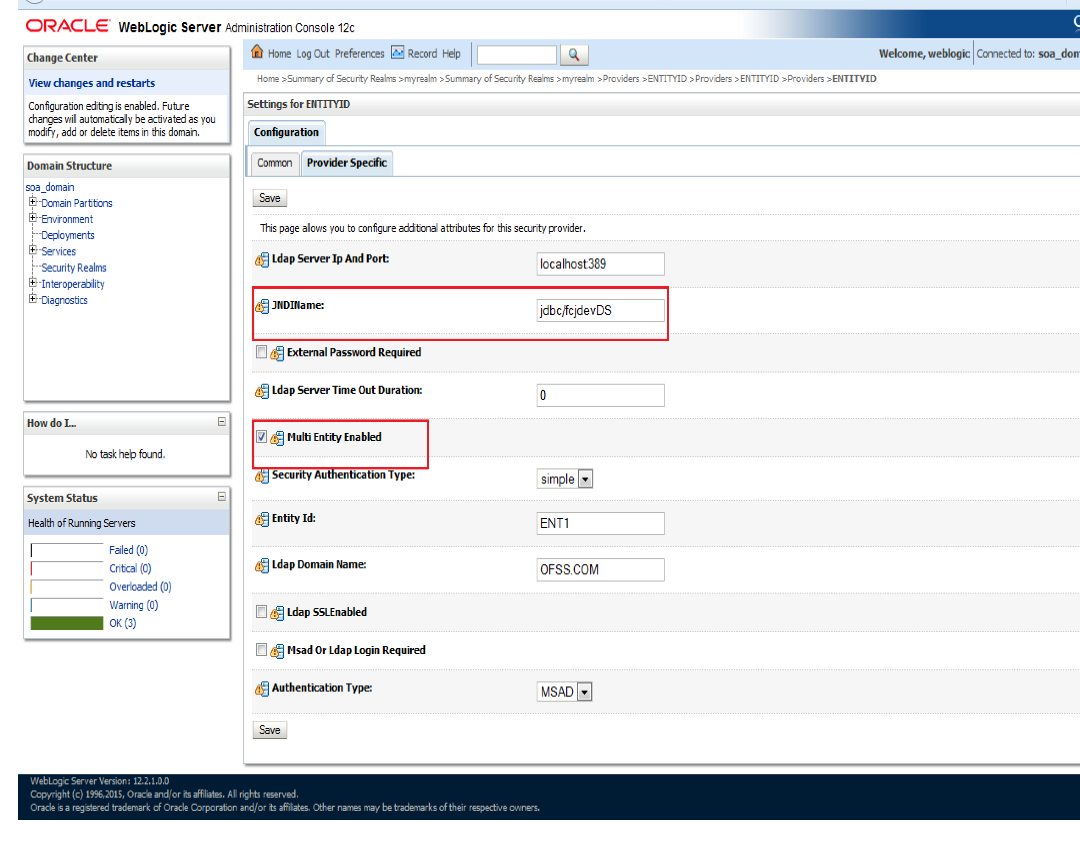

    Figure 1-17 Settings for ENTITYID - Provider Specific - Multi Entity





    Description of "Figure 1-17 Settings for ENTITYID - Provider Specific - Multi Entity"



12. Enter the EntityId with the Entity name which we created in the property file level and click on Save.

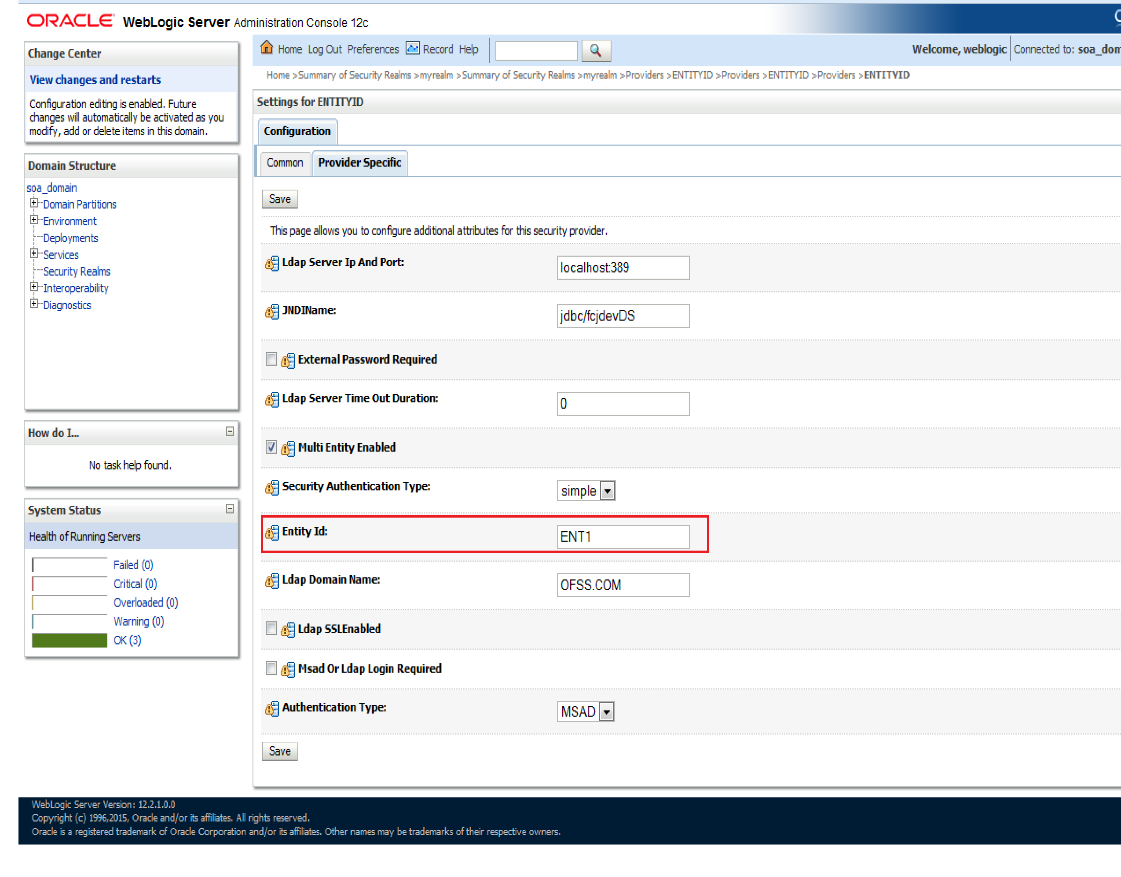

    Figure 1-18 Settings for ENTITYID - Provider Specific - Entity Id





    Description of "Figure 1-18 Settings for ENTITYID - Provider Specific - Entity Id"



13. Create the new datasource for each entity with the JNDI name, which we mapped in the property file.
14. Restart the Admin Server.
15. Continue step 1 to step 15 for each provider creation in a multientity scenario.
