1.1 Installing Open Development Tool

This topic describes the steps to install Open Development Tool application.

To install ODT, follow the steps given below:
  1. Run FCUBSInstaller.bat batch file to launch Oracle FLEXCUBE Investor Servicing Installer.

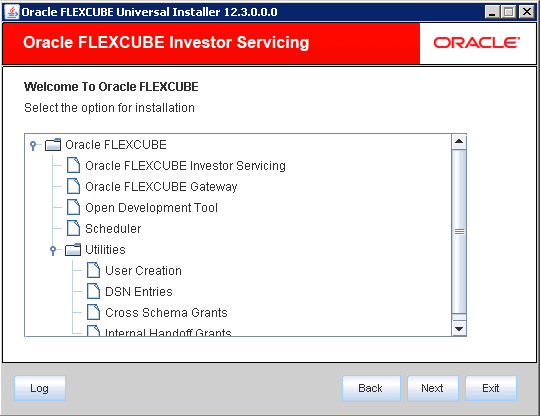

  2. Click Next to select the option for installation.
  3. Click Open Development Tool and click Next.
  4. Select Build Application as Oracle FLEXCUBE component for installation.
  5. Specify the following details.
    1. Operating System: Specify the operating system in which you are installing Oracle FLEXCUBE.
    2. Application Server: Specify the application server on which you are installing Oracle FLEXCUBE.
    3. DataBase Server: Specify the database server on which you are installing Oracle FLEXCUBE.
  6. Click Next.

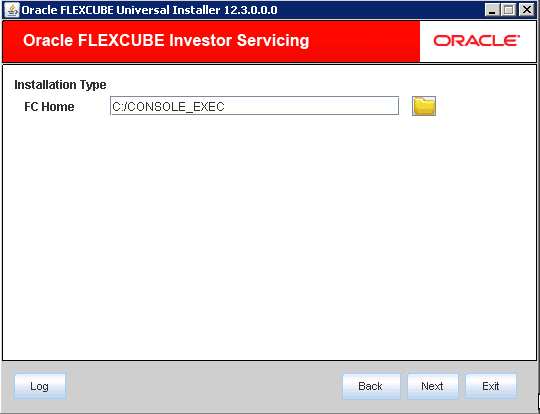

  7. Specify the source directory. You can use the directory icon to browse to the directory location. The directory must contain FCHome. If the required folders are not present, then the error message is displayed and click Next. .
  8. Select the Console type and click Next.

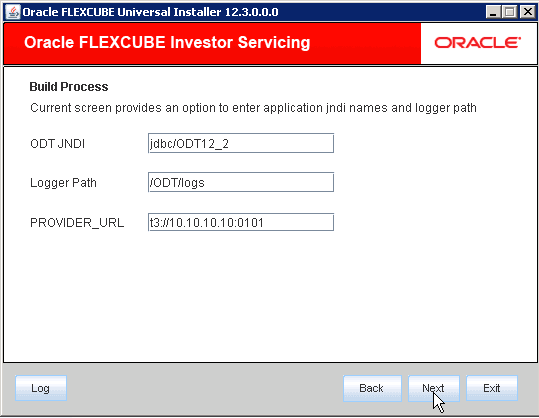

  9. Specify the following details.
    1. ODT JNDI: Specify the JNDI for the ODT.
    2. Logger Path: Specify the path where the logs have to be written.
    3. Provider_URL: Specify the provider URL.
  10. Click Next.

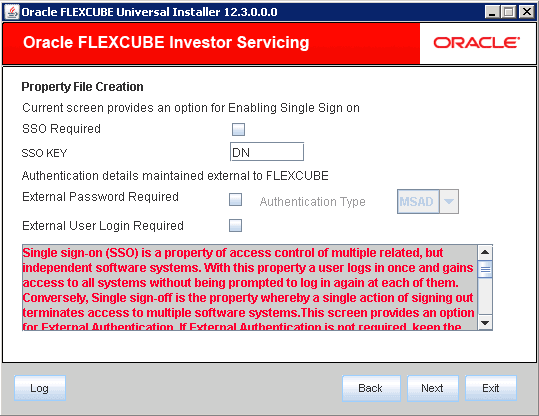

  11. Set single sign on properties. Click Next.
    This is an external authentication window. If external authentication is not required, then uncheck all the options.

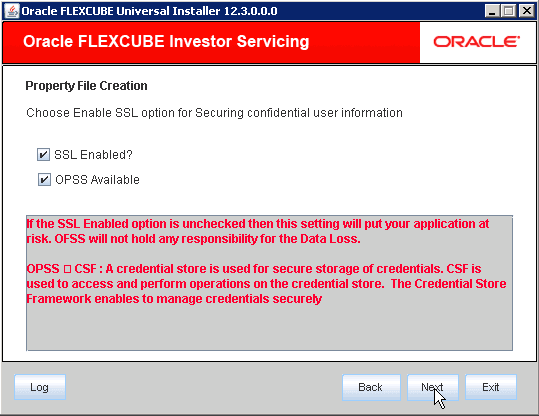

  12. Enable SSL information and click Next.

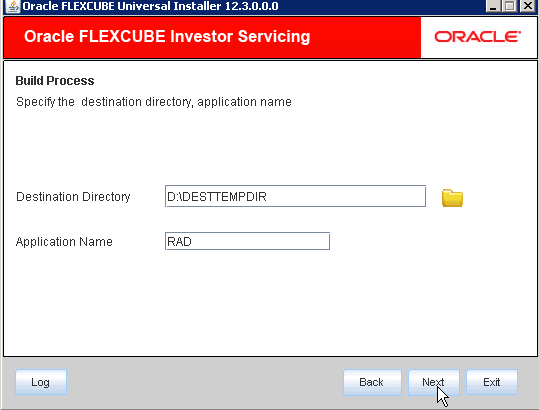

  13. Specify the following details.
    1. Destination Directory: Specify the destination directory. You can use the directory icon to browse to the source directory location.
    2. Application Name: Specify the desired name for the application. For Example: RAD.
  14. Click Next.

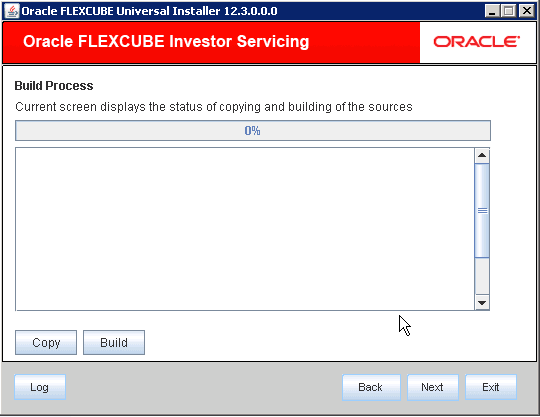

    The following screen is displayed.
    Description of build-process.png follows
    Description of the illustration build-process.png

  15. You can select all the source directories in this screen. The Installer will copy the sources from the multiple locations into the destination directory. You can have consolidated sources in the destination directory.
  16. Click Copy button to copy sources to the destination location.
    The following screen is displayed.
    Description of copy-sources.png follows
    Description of the illustration copy-sources.png

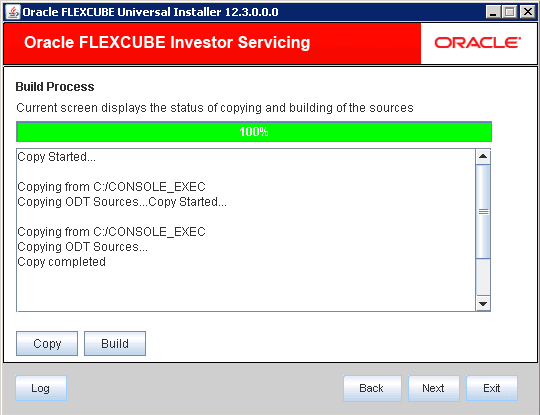

    Once the copying process is done, the following screen is displayed:
    Description of build-war-file.png follows
    Description of the illustration build-war-file.png

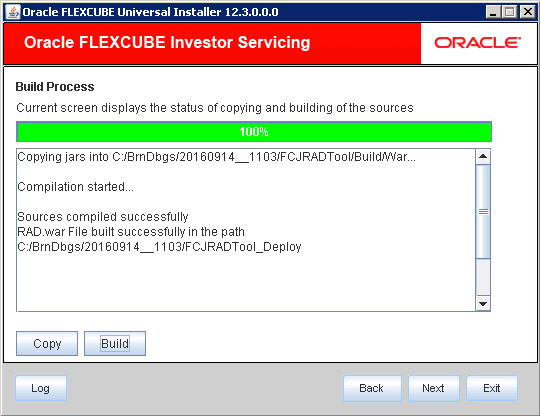

  17. Click Build button to build the war file in the destination location.

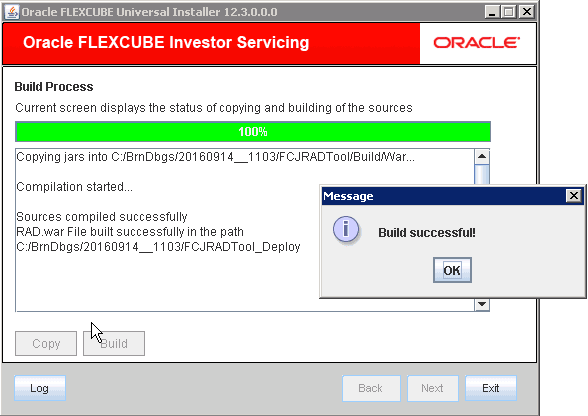

  18. The system displays the following screen when the copying is complete.
  19. Click OK.
