2.1 Header Information

This topic describes about defining the header information for Maintenance Forms.

1. On Expand Menu of the Development Workbench for Universal Banking, click Function Generation node.
   The Function Generation screen displays.

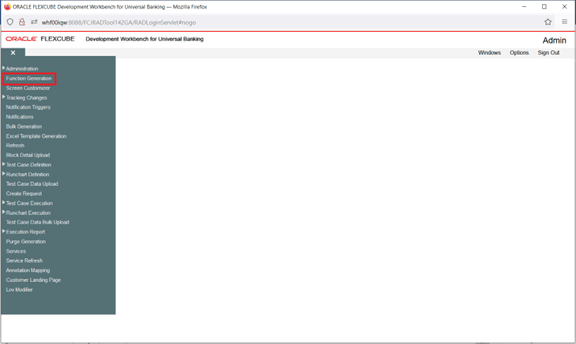

   Figure 2-1 Function Generation





   Description of "Figure 2-1 Function Generation"



2. On the Function Generation screen, right-click the Header Information and select Add option to create the new data block.
   For more information on fields, refer to the field description table.

   Table 2-1 Function Generation - Field Description

   Field	Description
   Function ID	It is the name of the Maintenance Form. The third letter of the function id has to be D. Ideally the function id name should have 8 characters. Example: UTDFNDRL
   Function Category	It is the Maintenance Form Category. It has to be Maintenance.
   Function Type	Parent
   Parent Function Id	None
   Parent Xml	None
   Header Template	None (Only for Process flow screens)
   Footer Template	Select the footer template from the drop-down list. None Maint Audit Maint Process Process For Maintenance Screen, footer template should be selected as Maint Audit. Make sure that the master data source has the audit columns if footer template is provided as Maint log

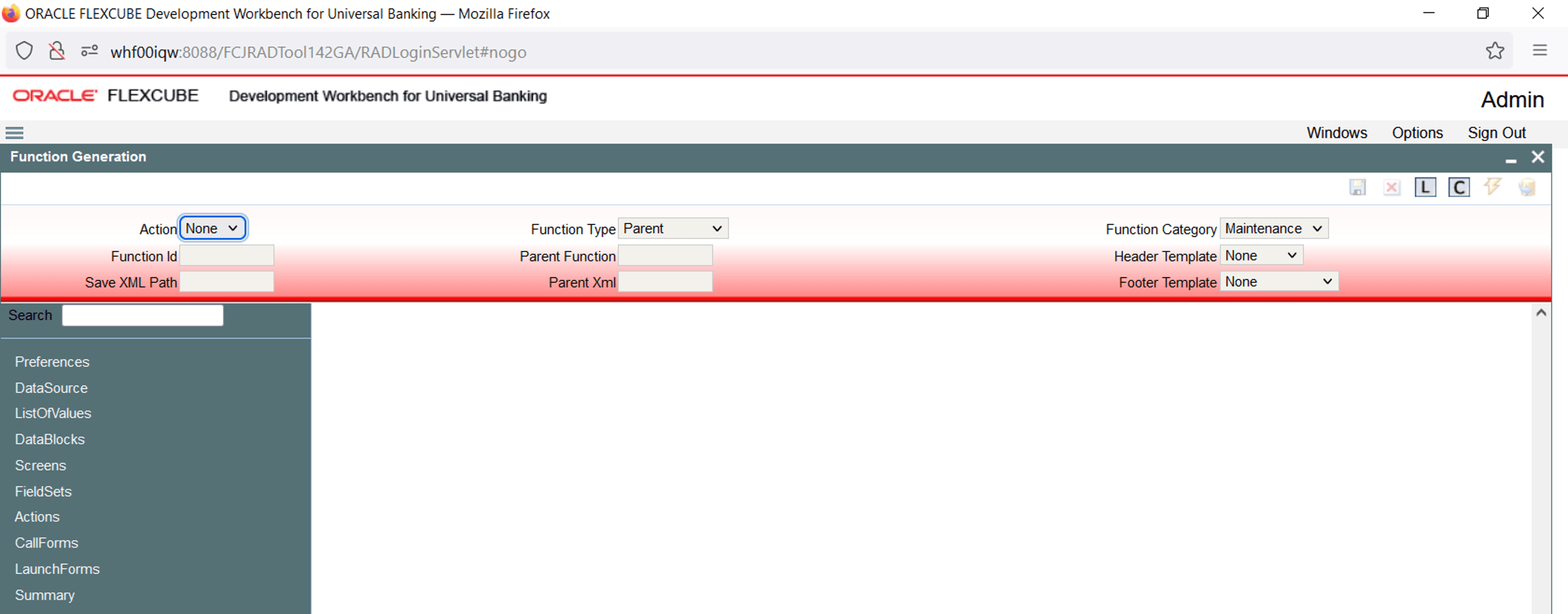

   Figure 2-2 Header Information for Maintenance Screen





   Description of "Figure 2-2 Header Information for Maintenance Screen"



3. You can save your work at any time by clicking the Save icon. Select the Action as Load to load the radxml file from the required path.
   The Information Window is displayed.

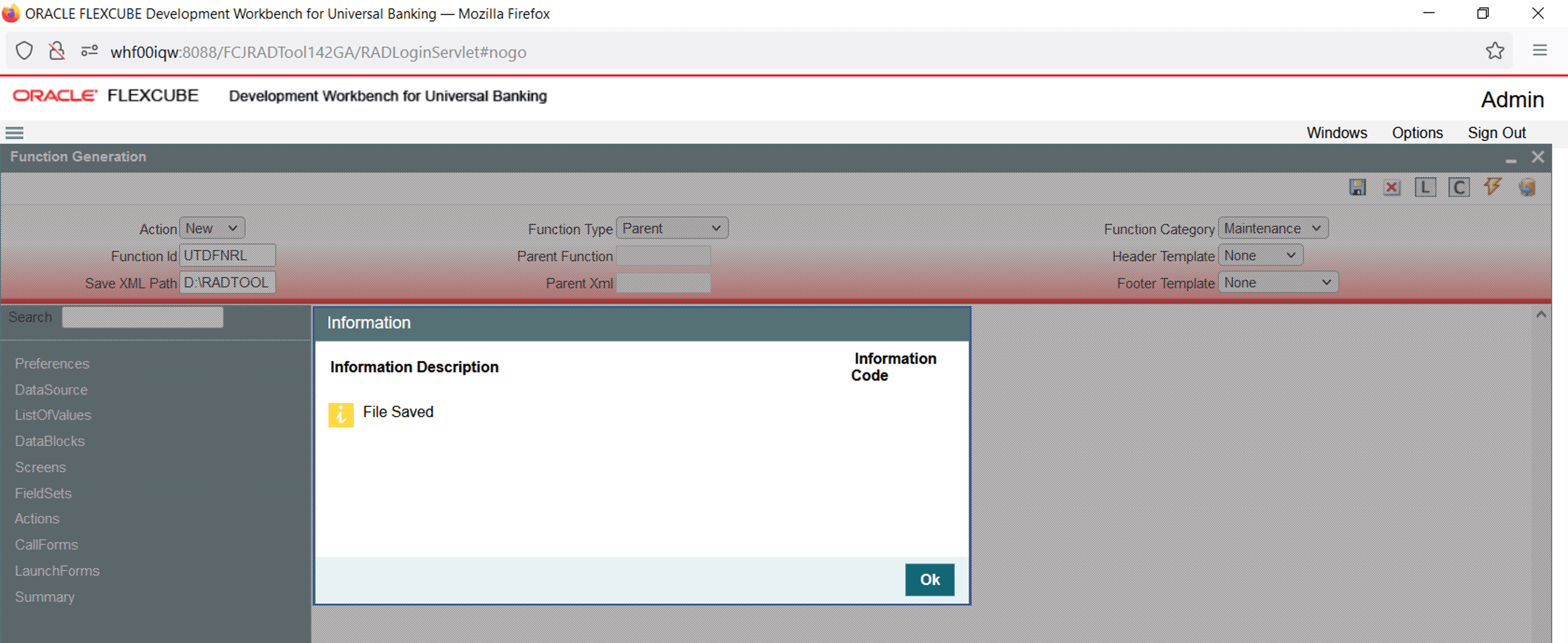

   Figure 2-3 Information Window





   Description of "Figure 2-3 Information Window"
