2.2 Preferences

This topic describes about defining the preferences for Maintenance Forms.

Details entered in Preferences screen are used in generating INCS for SMTB_MENU, SMTB_FUNCTION_DESCRIPTION and SMTB_ROLE_DETAILS.

In the Control String field, the developer needs to select the actions which should be available for Preferences screen in the FLEXCUBE.

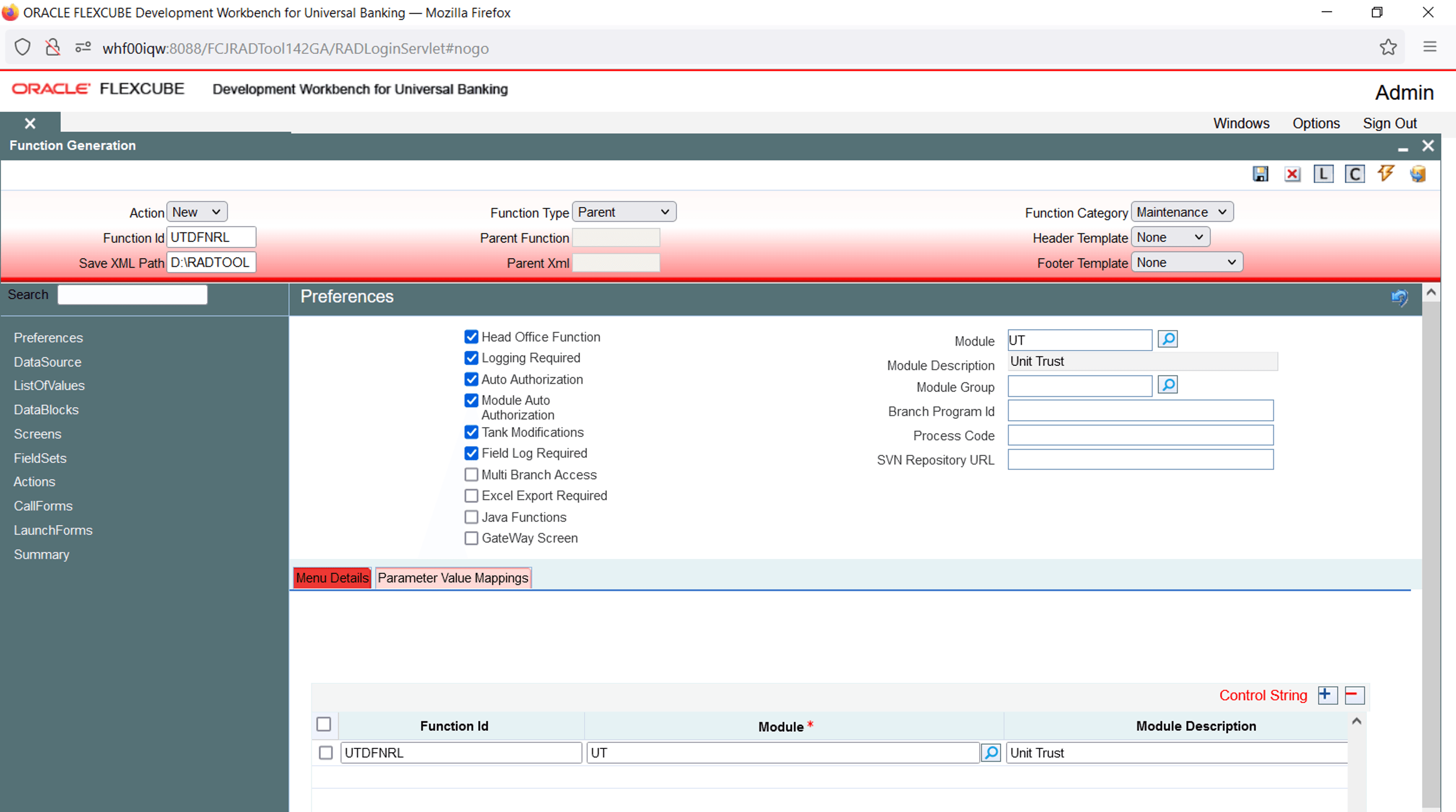

Figure 2-4 Preferences for Maintenance Screen

Description of "Figure 2-4 Preferences for Maintenance Screen"

Note the following points while providing details in the Preferences screen

1. Control String: REVERSE, ROLLOVER, CONFIRM, LIQUIDATE, HOLD operations are not applicable for maintenance screens.
2. Defining Browser Menu Tree: Browser menu tree will be defined in the script generated for smtb_function_description.

The following labels has to be maintained for generation of proper script:

• Main Menu: LBL_{function id}_MAIN_MENU
• Sub Menu 1: LBL_{function id}_SUB_MENU_1
• Sub Menu 2: LBL_{function id}_SUB_MENU_2
• Description: LBL_{function id}_DESC

Refer Development WorkBench - Screen Development I for the detailed explanation on preferences.

Example 2-1 UTDFNDRL

For UTDFNDRL, following labels has to be maintained

• LBL_UTDFNDRL_MAIN_MENU
• LBL_UTDFNDRL_SUB_MENU_1
• LBL_UTDFNDRL_SUB_MENU_2
• LBL_UTDFNDRL_DESC
