3.2 Functionality Demonstration- Screen Child Refresh
This topic provides an overview of Screen Child Refresh Functionality.
In the topic Perform Child Refresh, UTDCIFDC is
refreshed with the latest UTDCIFD. The figure below shows the
preview of UTDCIFD and UTDCIFDC main
screens before screen child refresh.

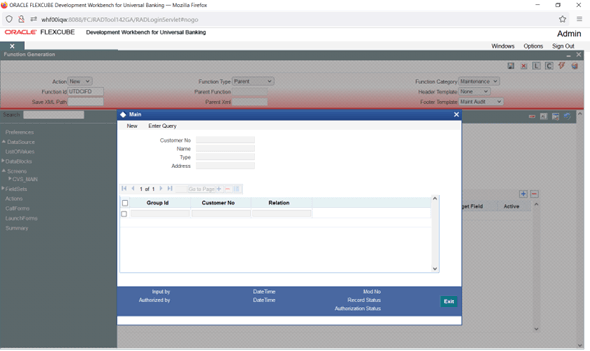

Figure 3-6 UTDCIFD- Before Screen Child Refresh
Figure 3-7 UTDCIFDC- Before Screen Child Refresh
Let assume that some changes are done in UTDCIFD as part of the current release. The new field has been added and introduced to the screen. Preview of UTDCIFD main screen after changes is shown below. Find the newly added fields (Nationality and Language) placed in a new fieldset highlighted in the figure.

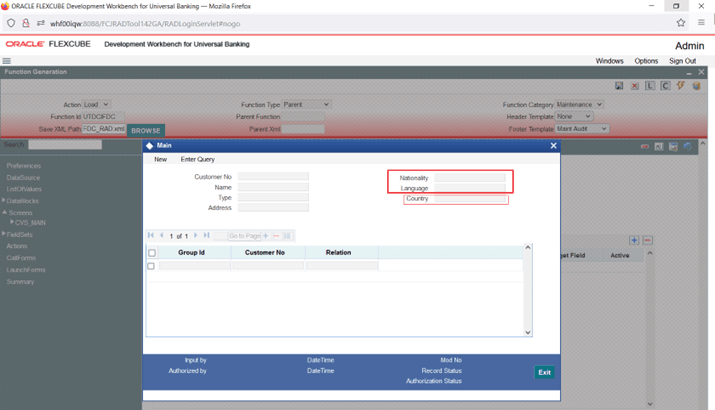

Figure 3-8 UTDCIFD - Post Screen Child Refresh
Do Screen Child Refresh for UTDCIFD with the latest parent (i.e. UTDCIFD with new fields and fieldset). Regenerate system units for the refreshed RADXML and deploy.

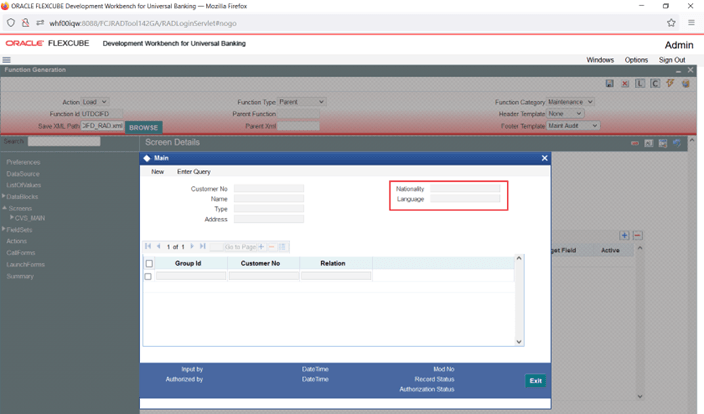

Figure 3-9 UTDCIFDC - Post Screen Child Refresh
Here the user can find that new fields and field set added in the parent has come in the screen child while the original screen child changes have also been retained.
Parent topic: Screen Child Refresh
