3.1 Perform Screen Child Refresh

This topic provides systematic instructions to perform Screen Child Refresh.

  1. On Development Workbench Login page, specify the Username and Password and log in to the Development Workbench landing page.
    Development Workbench For Universal Banking screen displays.

    Figure 3-1 Development Workbench For Universal Banking


    Description of Figure 3-1 follows
    Description of "Figure 3-1 Development Workbench For Universal Banking"

  2. Click the Refresh node under the Browser menu.
    Refresh screen displays.
  3. Click the BROWSE button at Source File List field.
    Upload and Choose File to Upload windows displays.

    Figure 3-2 Upload- Source File List


    Description of Figure 3-2 follows
    Description of "Figure 3-2 Upload- Source File List"

    Note:

    For explanation purpose two dummy function Id’s has been used:
    • UTDCIFDC: Parent screen
    • UTDCIFDC: Screen child of UTDCIFDC
  4. Select the text file containing the source file list from the folder at Choose File to Upload window and click on Open button.
    The source file list is a text file that contains the absolute path of all the child RADXMLs to be refreshed.

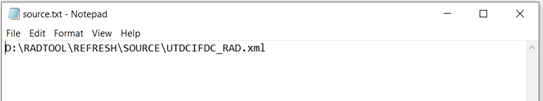

    Figure 3-3 Source File List- Screen Child Refresh


    Description of Figure 3-3 follows
    Description of "Figure 3-3 Source File List- Screen Child Refresh"

    The figure above shows the content of the source.txt file. Here UTDCIFDC is the child RADXML that has to be refreshed. If a child refresh of more than one function id is required, the absolute path of each child RADXMLs has to be specified, each in a new line.
    The selected text file displays in the Source File List field.
  5. Click on the BROWSE button at Base File List field.
    Upload and Choose File to Upload windows displays.

    Figure 3-4 Upload- Base File List


    Description of Figure 3-4 follows
    Description of "Figure 3-4 Upload- Base File List"

  6. Select the text file containing the base file list from the folder at Choose File to Upload window and click on Open button.
    The base File list is a text file that contains the absolute path of all the parent RADXMLs to be refreshed (here UTDCIFDC is the parent RADXML). If a child refresh of more than one function id is required, the absolute path of each parent RADXMLs has to be specified; each in a new line.
  7. Choose File Location as a client if the path provided is in the client machine.
  8. Choose Refresh Type as Screen Child Refresh.
  9. Click on the Refresh button on the lower-left portion of the screen and wait for the system to do the process.
    Process time will vary depending on the number of files provided, size of each file, etc
    After completion of the process, the status will be shown on the screen. File status will be successful if the refresh is successful.

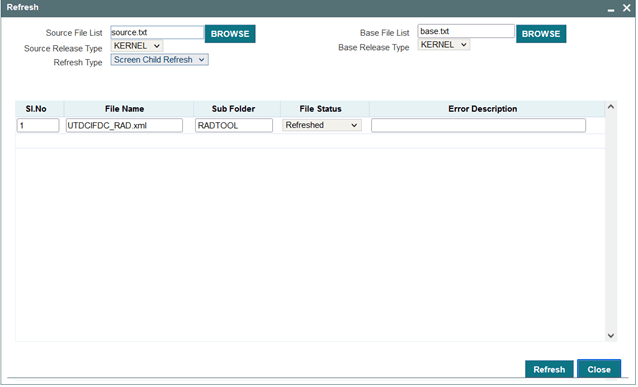

    Figure 3-5 Source File List- Screen Child Refresh


    Description of Figure 3-5 follows
    Description of "Figure 3-5 Source File List- Screen Child Refresh"

Parent topic: Screen Child Refresh
