7.3 Process Across Schemas Load Mapping Detail

This topic provides the systematic instructions to map loads to different schemas.

Map Loads

For criteria load mapping, the dynamic package will generate in the new schema upon authorization. You can map loads created in other schema using Load Mapping Detail screen.

During mapping operation, the system will display all the loads across schemas stored globally and not only those created in that particular schema. This will avoid re-entry and duplication of data.

The workflow is as follows:

• Assume operations in two countries Bermuda and Luxembourg, where a fund manager FUNMGR operates. You need to login and choose the module Fund manager of Bermuda (probably represented as FMGBDAAMC) and create a Load ID 1080.
• You should open Fund Manager module of LUX (probably represented as FMGLUXAMC) and do a map operation of load maintenance in the Across Schemas Load Mapping Detail screen.
• Select this load record and click Save button. The system will enable the LUX schema/segment also to see the Load ID in the respective LOBs of Loads after the record is authorized.
• Upon mapping the load, the system will allow you to map the load created in different schema.

Within the same installation if duplication of data needs to be avoided, then you can use the mapping details to map the load created in one schema into the other.

Loads will be available in the Schema in which they are created similar to Entity Maintenance. The loads will not be defaulted/displayed in all other schemas.

Only authorized Load records will be available for mapping in the Across Schemas Load Mapping Detail screen. You can map the loads created across schemas in the schema in which you have logged in by using the new Across Schemas Load Mapping Detail screen.

You can view only the loads which are mapped to the current module from the detail screen.

Amendment and Modification of load is limited only to the Parent schema in which the load is created. However, Loads will not be allowed for any modification or amendment if it is mapped in the system in any other schemas.

For Criteria Load mapping, on authorization of the load using Load Mapping (UTDLOAMP) screen, the system will generate the dynamic package.

1. On Home screen, type UTDLOAMP in the text box, and click Next.
   The Across Schemas Load Mapping Detail screen is displayed.

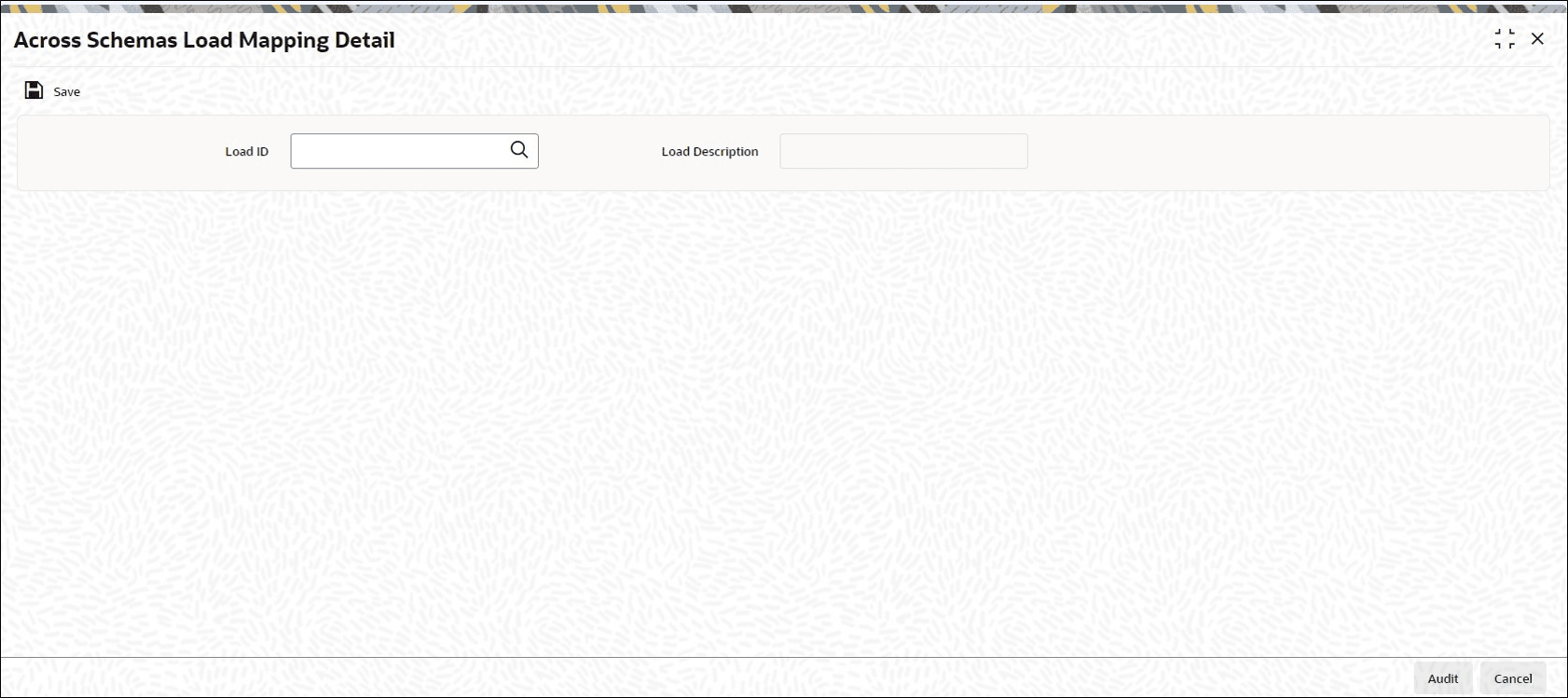

   Figure 7-8 Across Schemas Load Mapping Detail





   Description of "Figure 7-8 Across Schemas Load Mapping Detail"



2. On Across Schemas Load Mapping Detail screen, click New to enter the details.
   For more information on fields, refer to the field description table.

   Table 7-9 Across Schemas Load Mapping Detail - Field Description

   Field	Description
   Load ID	Numeric; 5 Characters; Mandatory Specify the load ID across schema will be available for mapping. Alternatively, you can select the load ID from the option list. The list displays all valid load ID maintained in the system.
   Load Description	Display The system displays the description for the selected load ID.
