2.74 Settlement Cycle Maintenance Summary

This topic provides the systematic instructions to perform the basic operations on the selected records.

Retrieve Settlement Cycle Maintenance Record

  1. On Home screen, type UTSSETCY in the text box, and click Next.
    The Settlement Cycle Maintenance Summary screen is displayed.

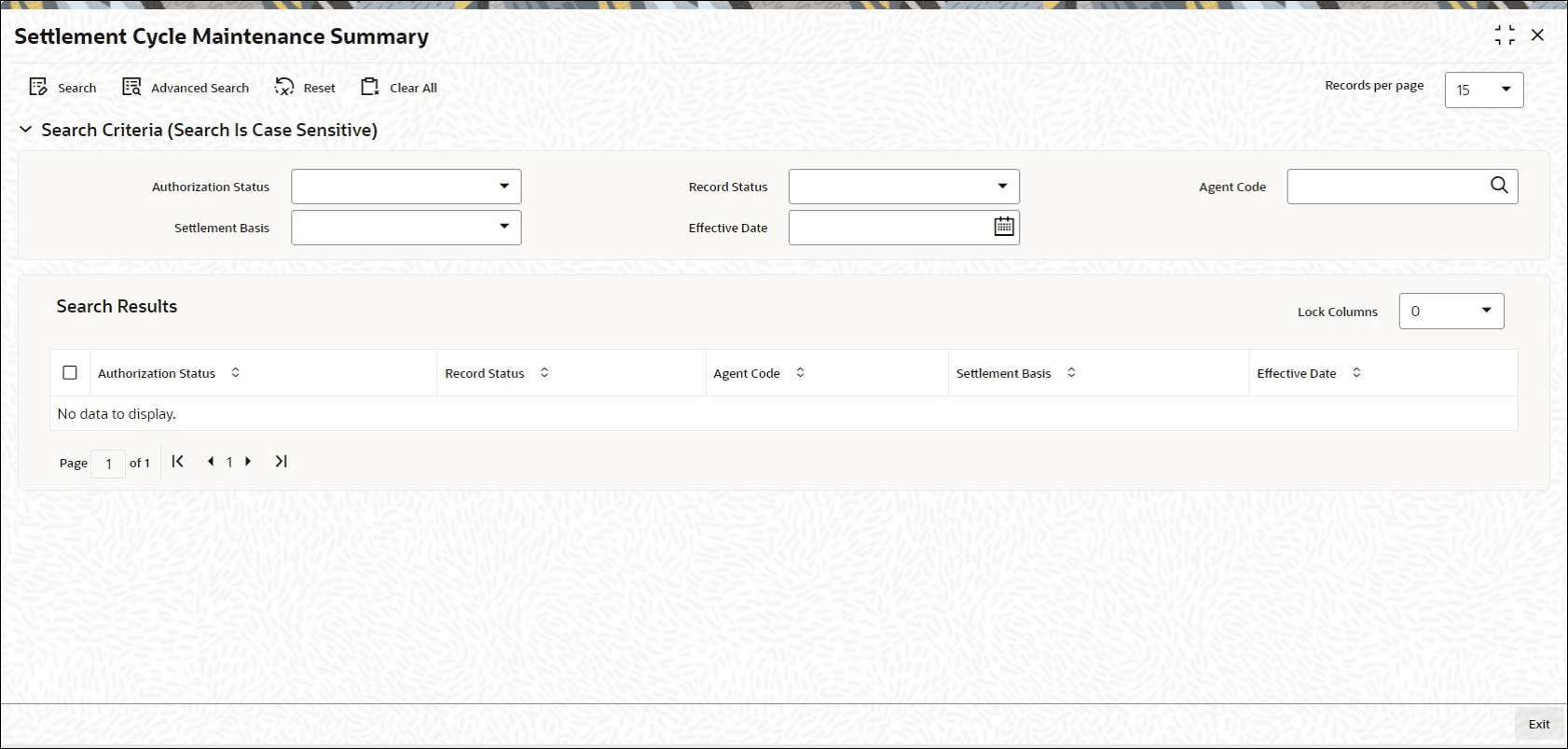

    Figure 2-86 Settlement Cycle Maintenance Summary


    Description of Figure 2-86 follows
    Description of "Figure 2-86 Settlement Cycle Maintenance Summary"

  2. On Settlement Cycle Maintenance Summary screen, specify any or all of the following details in the corresponding fields:
    • Authorization Status - If you choose the status, then the records matching the specified status are retrieved. If you do not choose any option, then all the records are retrieved.
    • Record status
    • Agent Code
    • Effective Date
    • Settlement Basis
  3. Click Search button to view the records.
    All the records with the specified details are retrieved and displayed in the lower portion of the screen.

    Note:

    You can also retrieve the individual record detail from the detail screen by querying in the following manner:
    • Press F7
    • Input the Agent Code
    • Press F8
  4. Perform Edit, Delete, Amend, and Authorize, operations by selecting the desired operation from the Action list. You can also search a record by using a combination of % and alphanumeric value.

    Note:

    The status field in the Records pane of the summary screen displays the bulk operation results.
    Example: You can search the record for Agent Code by using the combination of % and alphanumeric value as follows:-
    • Search by A% :- System will fetch all the records whose Agent Code starts from Alphabet ‘A’. For example:- AGC17,AGVO6,AGC74 etc.
    • Search by %7:- System will fetch all the records whose Agent Code ends by numeric value’ 7’ . For example: AGC17, GSD267, AGC77 etc.
    • Search by %17%:- System will fetch all the records whose Agent Code contains the numeric value 17. For example: GSD217, GSD172, AGC17 etc.

Parent topic: Maintain Reference Information
