View Branch EOD

This topic describes the systematic instructions to view the list of branch work-flow mappings.

The user can configure EOD using Configure EOD screen.
  1. From Home screen, click Core Maintenance. Under Core Maintenance, click Branch EOD.
  2. Under Branch EOD, click View EOD.
    The View EOD screen is displayed.

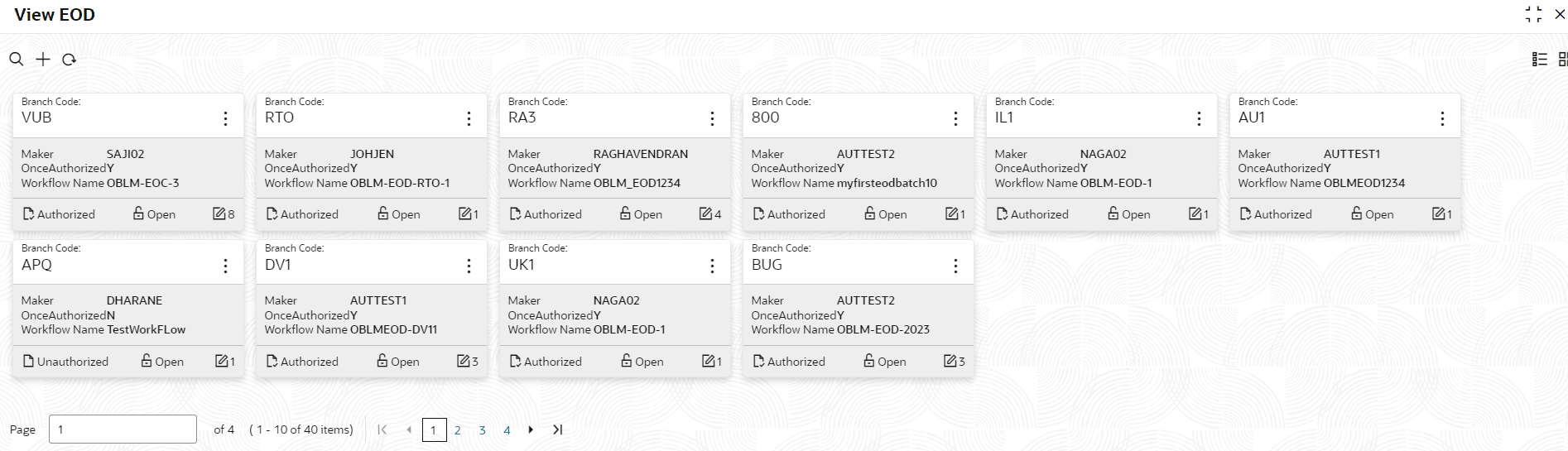

    Figure 1-20 View EOD


    Description of Figure 1-20 follows
    Description of "Figure 1-20 View EOD"

    For more information on fields, refer to the field description table.

    Table 1-20 View EOD – Field Description

    Field Description
    Branch Code Displays the branch code details.
    Maker Displays the name of the maker.
    Workflow Name Displays the name of the work-flow.
    Authorization Status Displays the authorization status of the record.
    The options are:
    • Authorized
    • Rejected
    • Unauthorized
    Record Status Displays the status of the record.
    The options are:
    • Open
    • Closed
    Modification Number Displays the number of modification performed on the record.
