14.7.1.2 Attribute Expression Application Rule

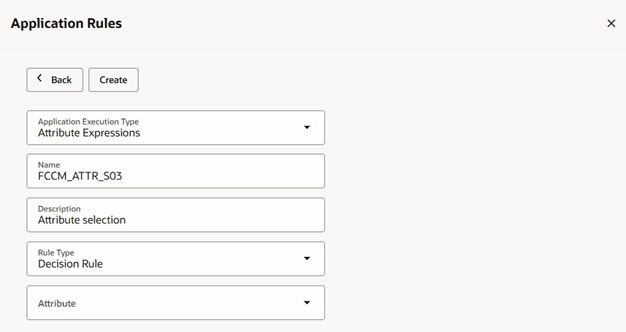

Figure 14-14 Attribute Builder Window


Attribute Builder Window

Table 14-22 Attribute Builder Description

Field Name Description
Name Enter a unique name for the Application Rule.
Description Enter a description for the Application Rule
Rule Type Displays the rule type as Decision Rule. This Rule Execution type supports only the Decision Rule type.
Attribute Select the attribute for which you want to define the application rule, from the drop-down list. The list displays the attributes configured for the selected application and component. The selected attributes will be displayed one after the other.

You can select multiple attributes from the drop-down list.

You can delete a row by clicking the Delete icon.
