Viewing Execution Log for Widgets

This option allows you to view the execution logs for Widgets. This option is not available for Service Tasks or Human Tasks.

To view Execution logs, do as follows:

1. Double-click on the activity icon whose logs you want to view. The Activity Execution details are displayed.

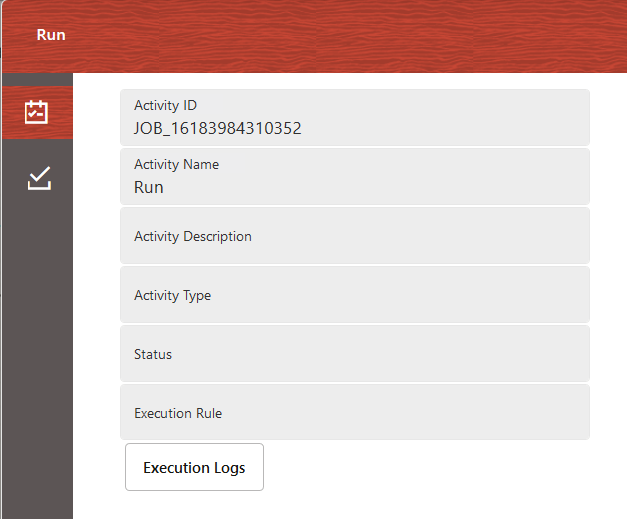

   Figure 14-7 Activity Execution Details Window to View the Execution Log for Widgets








2. Click Execution Logs.
3. Select the required Log File from the drop-down list and click View Log. The log information is displayed in the Log File Contents window.

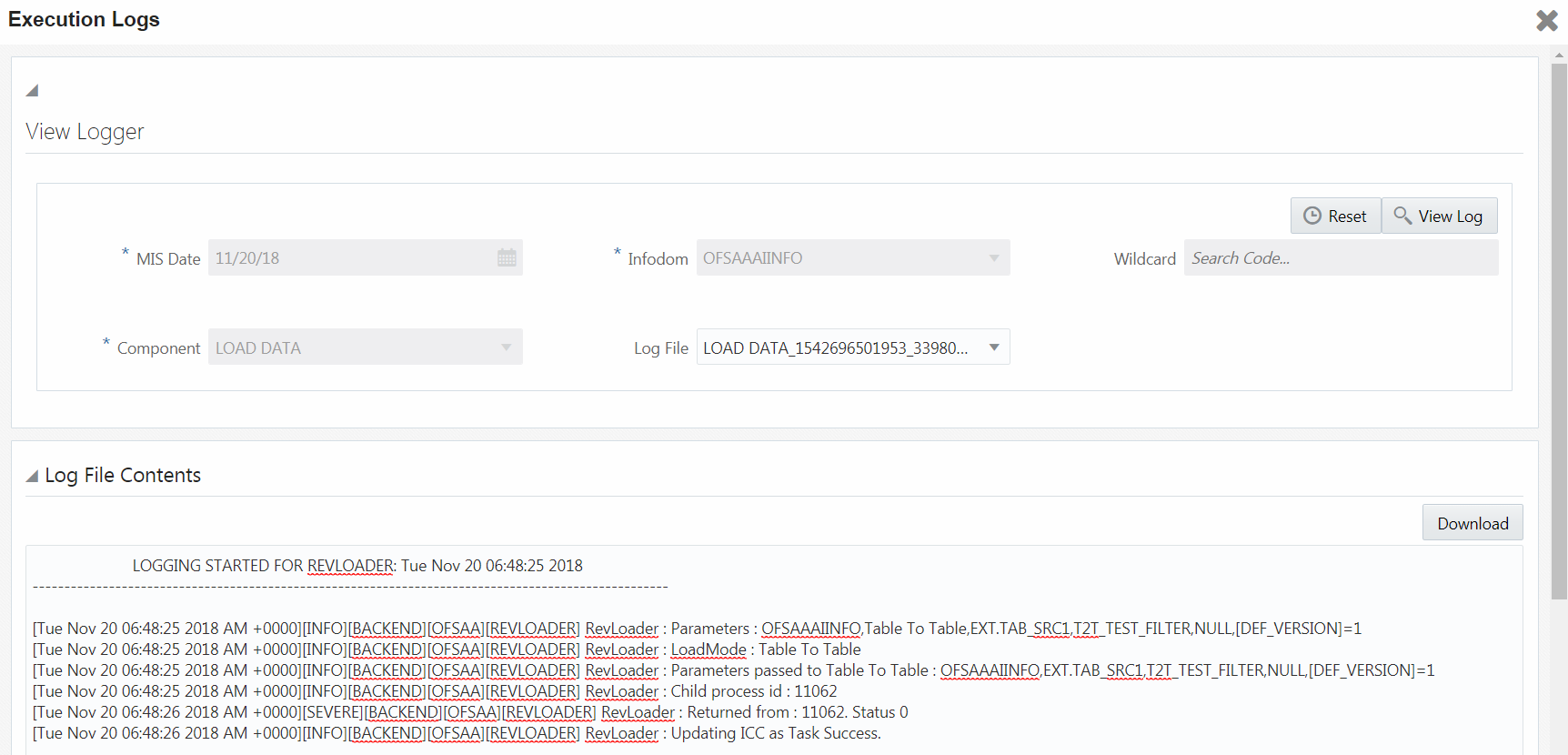

   Figure 14-8 Log File Contents window








4. Click Download to download the execution log details.
