Adding Inline DataSet Condition

To add new Inline Dataset condition:

1. Click Add from the Inline Dataset Condition tool bar. The Inline Dataset Condition dialog box is displayed.
2. Enter following details.
   1. Start Field: Select the start field of the condition from the drop-down list. This shows all Fields (Columns) of the Start Table.
   2. Operator: Select the operator from the drop-down list. The available operators are =, >, <, >=, <=, and <>.
   3. End Field: Select the end field of the condition from the drop-down list. This shows all the Fields (Columns) of the End Table. Select if you want Attribute, Literal or Expression from the field next to this field.

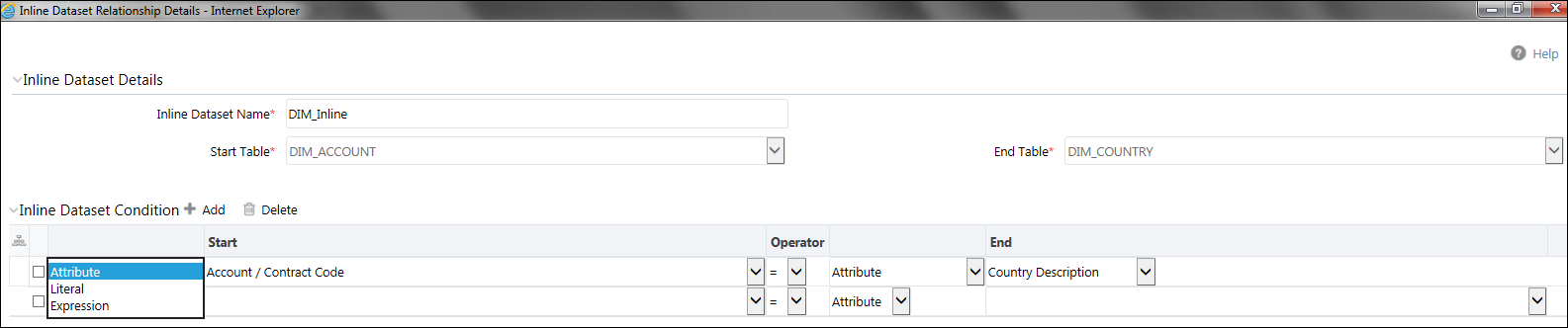

      Figure 5-14 Inline Dataset Condition








3. Click Save. A confirmation message is displayed.
