Adding Inline Datasets

The add Inline Dataset option allows you to define an Inline Dataset by adding a name and selecting the Start and End tables.

To add new Inline Dataset paths:
  1. Navigate to the Inline Datasets details page.
  2. Click Add from the Inline Dataset List tool bar. The Inline Dataset dialog box is displayed.

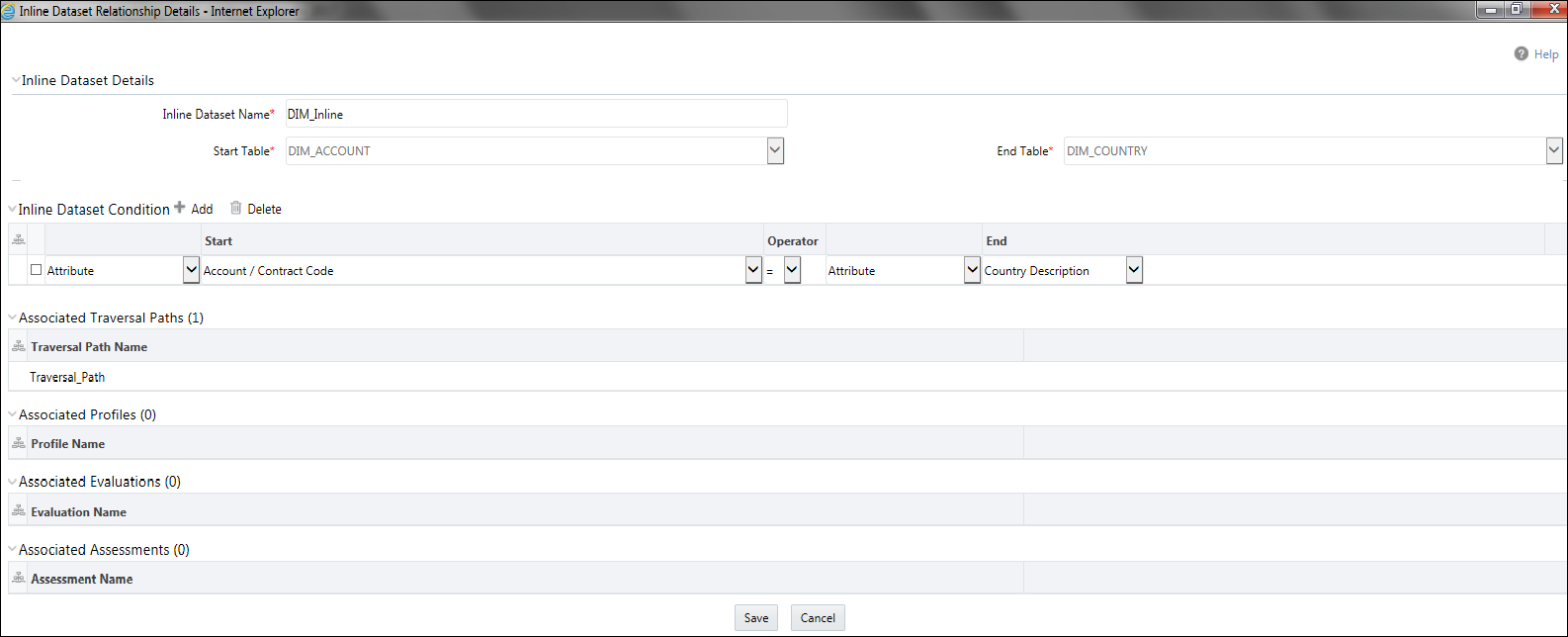

    Figure 5-13 Adding Inline Dataset


    Adding Inline Dataset

  3. Enter the following details.
    1. Inline Dataset Name: Enter the Inline Dataset Name.
    2. Start Table: Select the start table from drop-down list. All the Business entities of type Activity, lookup, reference and also Virtual Profiles are displayed.
    3. End Table: Select the end table from drop-down list. All the Business entities of type Activity, lookup, reference and also Virtual Profiles are displayed, except the selected Start Table.
