4.2.3 Bus Member Creation

To create a Bus Member follow these steps:

1. Click + to expand Service Integration in the LHS menu.
2. Click Buses.

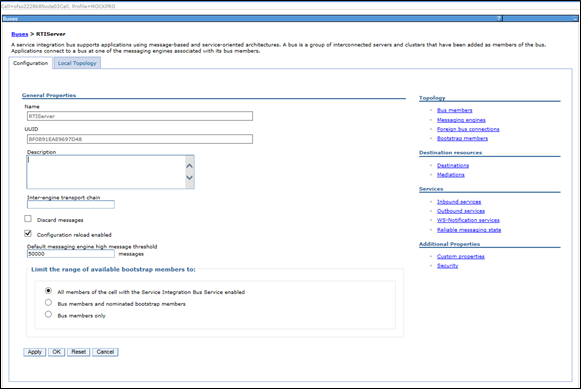

3. Click RTIServer. The RTI Server screen is displayed.

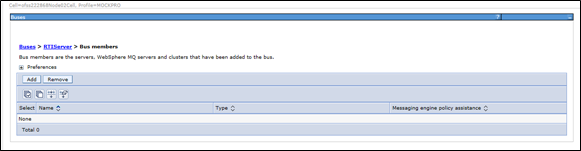

4. In the Topology section, click Bus members. The Bus members screen is displayed.

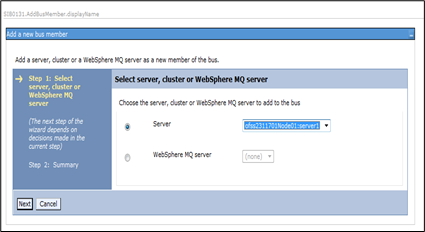

5. Click Add. The Add a New Bus Member screen is displayed.
6. Select Server.







7. Click Next.

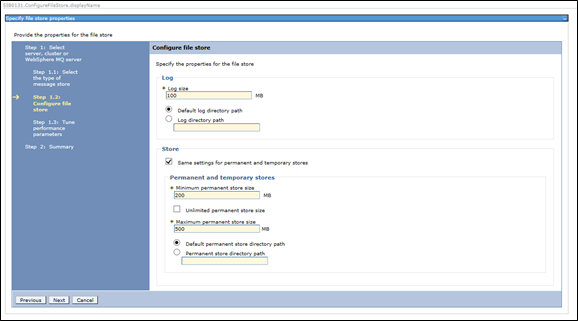

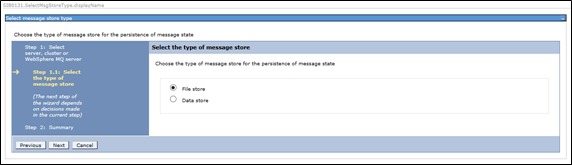

8. Select File Store.
9. Click Next.

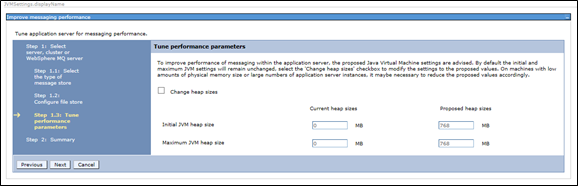

10. Click Next.







11. Click Next.

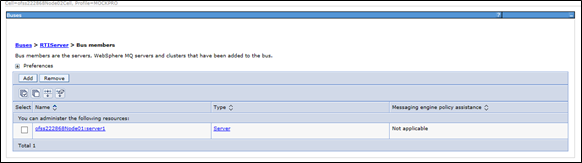

12. Click Finish. The Buses screen is displayed.







13. Click Save.
