4.1.3 Configuring JMS Modules

To configure JMS Modules, follow these steps:

  1. In the Domain Structure LHS menu, click + to expand Services.
  2. Click + to expand Messaging.
  3. Click JMS Modules. The JMS Module screen is displayed.

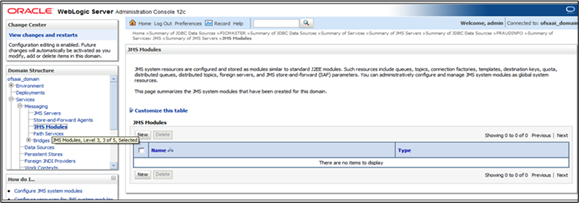

    JMS Module

  4. Click New. The Create JMS System Module page is displayed.

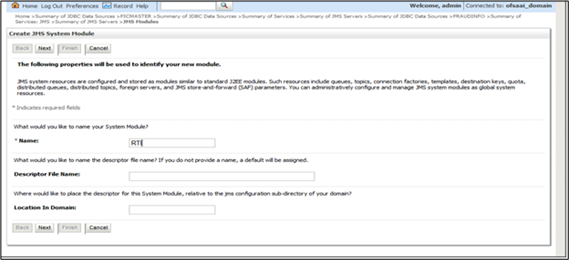

    Create JMS System Module

  5. Enter the name as RTI.
  6. Click Next. The Create JMS System Module page is displayed.

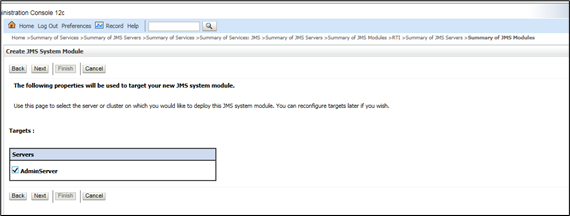

    Create JMS System Module

  7. Check the AdminServer in the Servers section.
  8. Click Next.

    Create JMS System Module

  9. Click Finish.

    Summary of JMS Modules

  10. The following confirmation message is displayed.
    JMS Module is created successfully.
