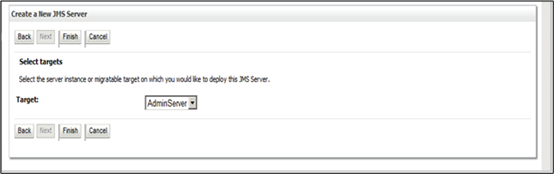

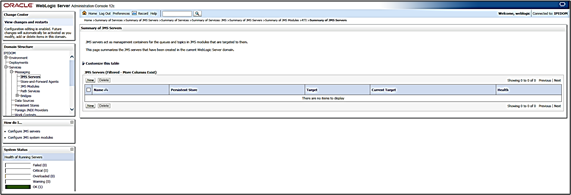

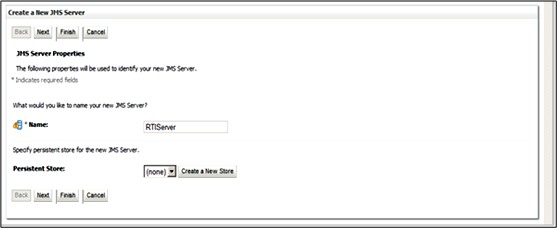

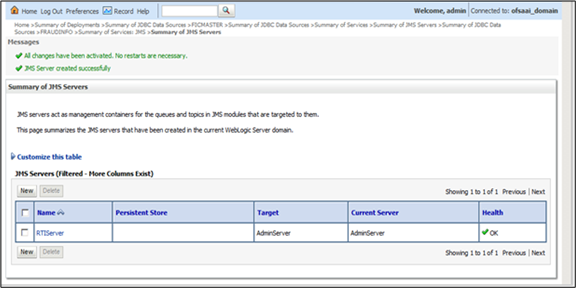

Inline Processing Engine Configuration Guide Configuring IPE in Web Application Servers for Real Time Mode Configuring IPE in WebLogic Configuring JMS Servers 4.1.2 Configuring JMS Servers To configure JMS Servers, follow these steps: In the Domain Structure LHS menu, click + to expand Services. Click + to expand Messaging. The WebLogic Server Administration Console page is displayed. Select JMS Servers. The Summary of JMS Servers page is displayed. Click New. The Create a New JMS Server page is displayed. Enter the name as RTIServer under JMS Server Properties. Click Next. The Select Targets section is displayed. Select the Target as AdminServer. Click Finish. The following confirmation message is displayed.JMS Server is created successfully. Parent topic: Configuring IPE in WebLogic
