4.2.6.1 Configuring RTI Source Entity Queue

To create RTI Source Entity Queue, follow these steps:

1. Click + to expand Resources in the LHS menu.
2. Click + to expand JMS.
3. Click Queues.







4. Select Scope as Cell.
   For example, cell=OFSA80Node02Cell.

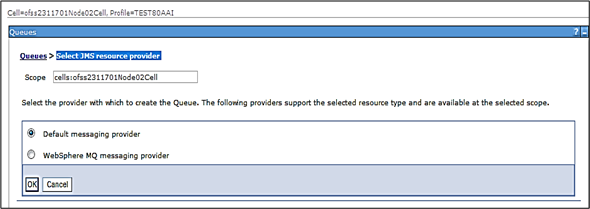

5. Click New. The Select JMS resource provider screen is displayed.







6. Select Default Messaging Provider.

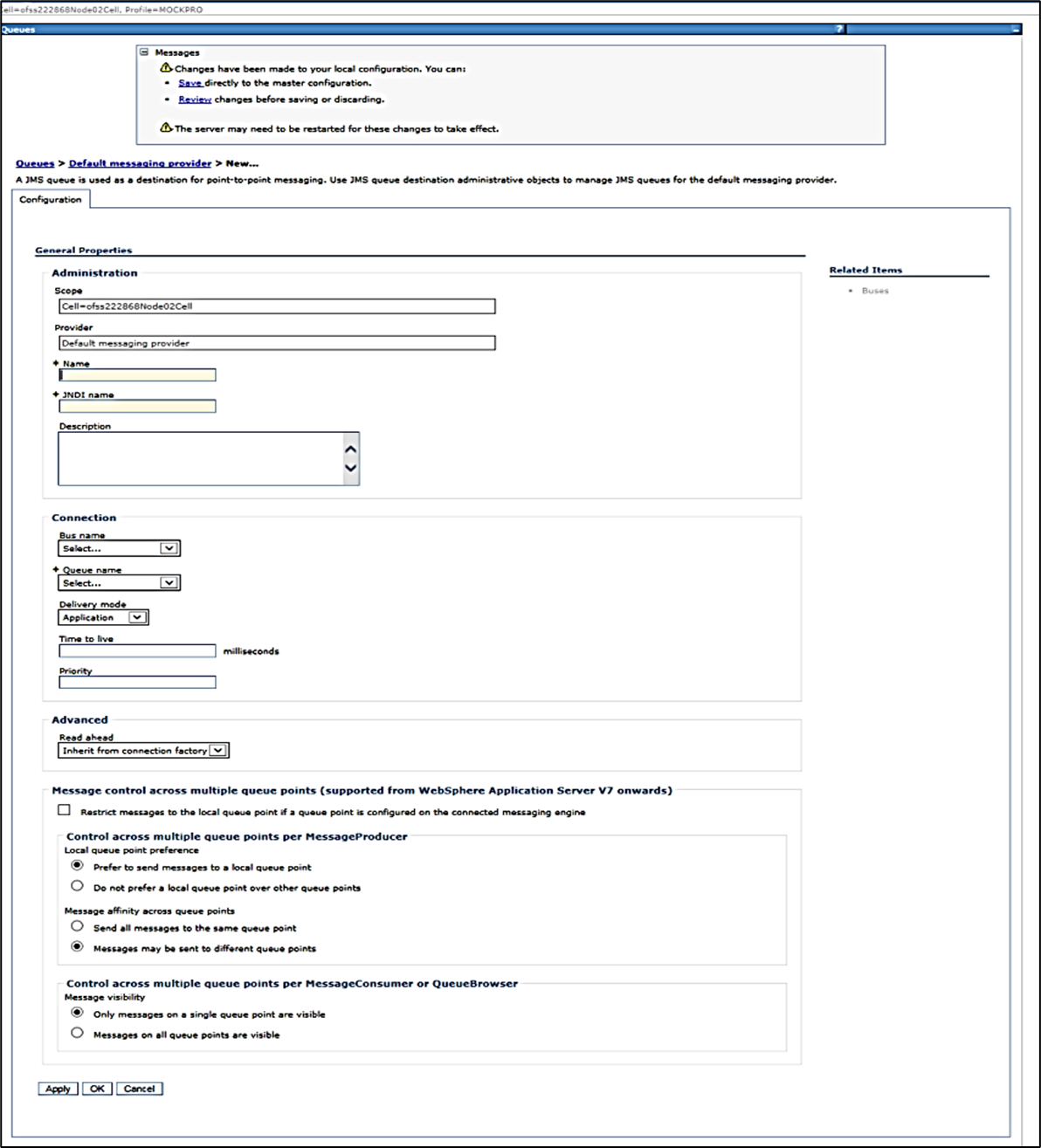

7. Click OK. The General Properties section is displayed.







8. Enter the following details:

   Table 4-8 JMS Queues General Properties - Field Values

   Field	Value

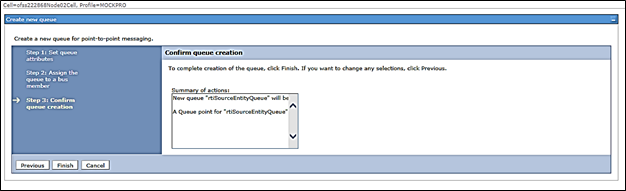

   Name	RTI Source Entity Queue
   JNDI Name	jms/sourceEntityQueue
   Bus Name	RTIServer

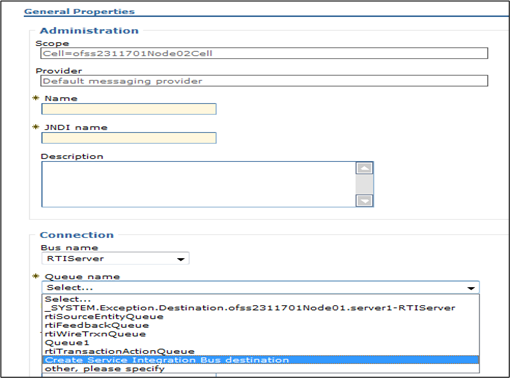

9. Select Create Service Integration Bus destination from Queue Name.

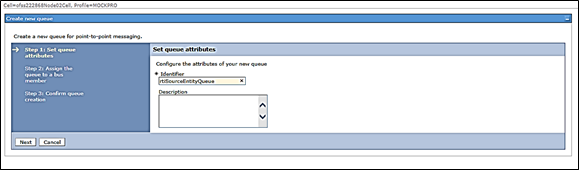

10. The Set queue attributes screen is displayed.







11. Enter the Identifier as rtiSourceEntityQueue.
12. Click Next.







13. Click Next.

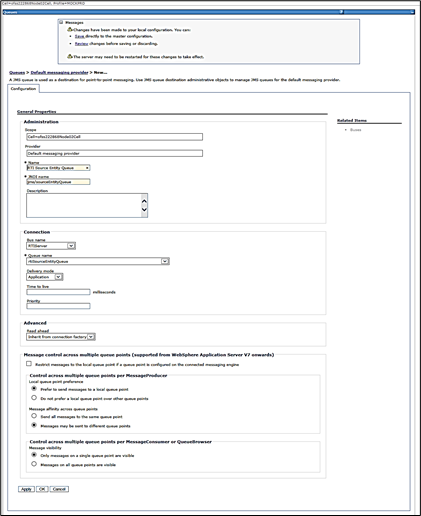

14. Click Finish. The Configuration screen is displayed.







15. Click Apply and save the details.
