4.2.6.2 Creating remaining JMS Queues

Similarly, to create the remaining queues, follow these steps:

1. Repeat Steps 1 - 15 from section RTI Source Entity Queue.
2. Enter the following details:

   Table 4-9 WebSphere JMS Queues - Field Values

   Queue Name	Fields
   	Name	JNDI name	Bus name	Queue Identifier
   RTI Hold JMS Queue	Enter the name as RTI Hold JMS Queue	Enter the JNDI name as jms/TransactionActionQu eue	Select the Bus name as RTIServer	Enter the Queue as rtiTransactionActionQueue
   RTI Feedback Queue	Enter the name as RTI Feedback Queue	Enter the JNDI name as jms/feedbackQueue	Select the Bus name as RTIServer	Enter the Queue as rtiFeedbackQueue
   Wire Transaction Source Entity Queue	Enter the name as Wire Transaction Source Entity	Enter the JNDI name as jms/wireTrxnQueue	Select the Bus name as RTIServer	Enter the Queue as rtiWireTrxnQueue

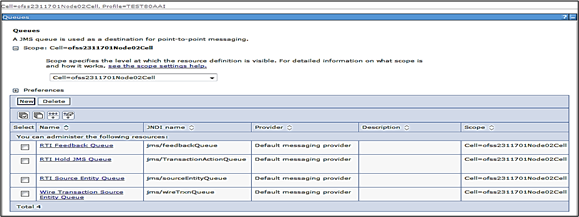

3. The JMS Queues are created successfully.
