4.1.7.2 Creating Remaining JMS Queues

To create the remaining JMS Queues, follow these steps:

1. Repeat Steps 1 - 11 as in section RTI feedback Queue.
2. Enter the values given in the following table.

   Table 4-6 WebLogic JMS Queues - Field Values

   Queue Name	Fields
   	Name	JNDI name	Subdeployment
   RTI Hold JMS Queue	Enter the name as RTI Hold JMS Queue	Enter the JNDI name as jms/TransactionActionQue ue	Select the Subdeployment as RTISubDeploy
   RTI Source Entity Queue	Enter the name as RTI Source Entity Queue	Enter the JNDI name as jms/sourceEntityQueue	Select the Subdeployment as RTISubDeploy
   Wire Transaction Source Entity Queue	Enter the name as Wire Transaction Source Entity Queue	Enter the JNDI name as jms/wireTrxnQueue	Select the Subdeployment as RTISubDeploy

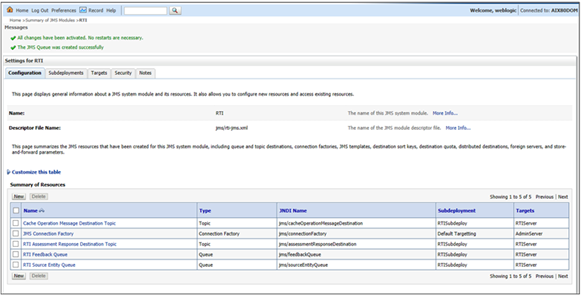

3. The following confirmation message is displayed.
   The JMS Queue was created successfully.
