4.1.7.1 RTI Feedback Queue

To create the RTI Feedback Queue, follow these steps:

  1. In the Domain Structure LHS menu, click + to expand Services.
  2. Click + to expand Messaging.
  3. Click JMS Modules.
  4. Click RTI. The Settings for RTI screen is displayed.

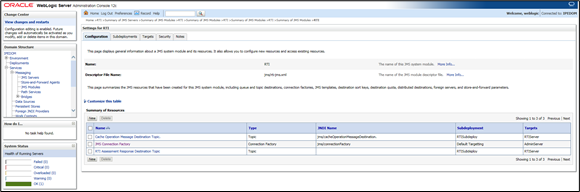

    Settings for RTI

  5. Click New. The Create a New JMS System Module Resource screen is displayed.

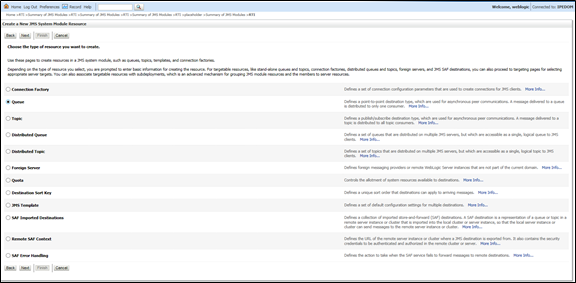

    JMS Queue - Create a New JMS system Module

  6. Select Queue from the list.
  7. Click Next. The Create a New JMS System Module Resource screen is displayed.

    JMS Queue - Create a New JMS system Module

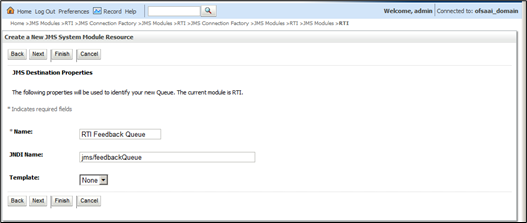

  8. Enter the following details:

    Table 4-5 JMS Queue - Field Values

    Field Value
    Name RTI Feedback Queue
    JNDI Name jms/feedbackQueue
  9. Click Next.
  10. Select the Subdeployments as RTISubDeploy.

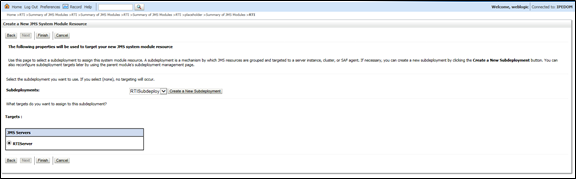

    JMS Queue - Create a New JMS System Module Resource

  11. Click Finish.
  12. The following confirmation message is displayed.
    RTI Feedback Queue is created successfully.

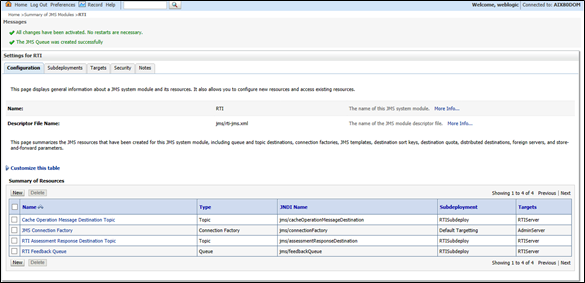

    JMS Queue created successfully
