5.2.1 PLSQL Archive Summary

This page is the gateway to all PLSQL Archive Projects and related functionality. You can navigate to other pages relating to PLSQL Archive Projects from this point.

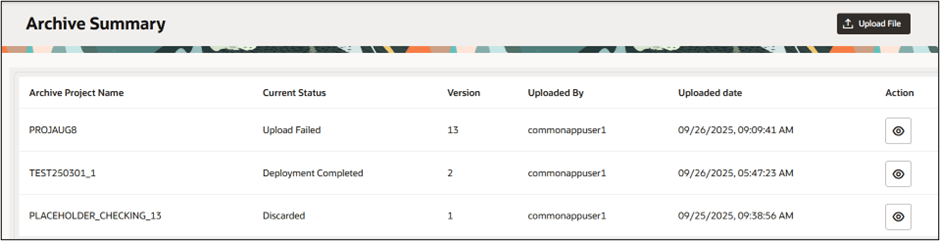

Figure 5-9 PLSQL Archive Summary


PLSQL Archive Summary

  • Archive Project Name: Shows the name of Archive project
  • Current Status: Displays the current status of archive project as Upload Failed, Upload Successful, etc.
  • Version: Shows the Current or Latest version of Archive
  • Uploaded by: The user who last modified the Archive.
  • Uploaded Date: The Date and Time when the archive was last modified.
  • Action: Click this icon to view a list of actions that you can perform on the Archive.

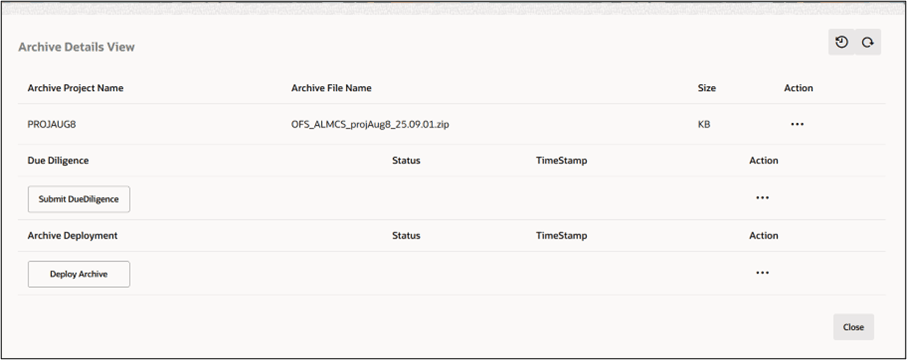

    Figure 5-10 View Archive Details


    View Archive Details

The View Archive Details page shows following details:

  • Archive Project Name: Displays a unique number for the selected archive
  • Archive File Name: Shows the name of Archive file.
  • Archive Size: Shows the size of Archive file.

Click Action icon to view a list of actions that you can perform on the Archive.



Figure 5-11 History

History
 Shows the list of all the versions that were processed for the selected Archive Project Name. The Archive History window is displayed with basic details like the Archive Project Name, App Name, Version of archive, Upload date, Deleted status, and Deployment status of archive.

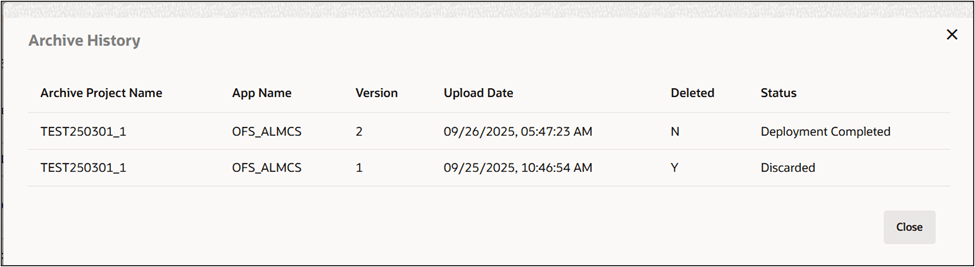

Figure 5-12 Archive History window


Archive History window

Figure 5-13 Refresh

Refresh
 Refreshes the latest status of due diligence & archive deployment. This is a reload of the view details page data contents. In case a due diligence / archive deployment is in progress, then you can use the refresh button to reload the page to see the updated status whether successful, failed or discarded.

Figure 5-14 Download

Download
 Allows you to download of the selected archive.

Figure 5-15 Discard Archive


Discard Archive

 Allows you to discard the selected archive.

Figure 5-16 View Contents

View Contents
 To view the contents of the selected archive/version. The Archive Content window displays the contents of the archive in the current release with Object Names and Object Types.

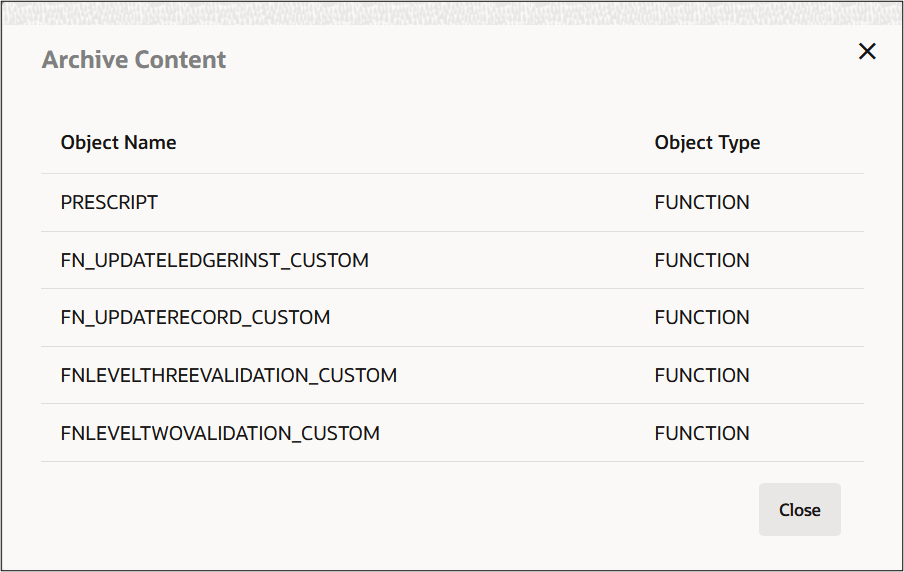

Figure 5-17 Archive Content window


Archive Content window

Figure 5-18 View Archive Log

View Archive Log
 Allows you to access the log details. The Log View window displays the below log details:

View log of the archive upload - Shows the archive upload logs.

View log of the due diligence step - Shows the different diligence checks performed on each object and their status.

View log of the archive deployment step – Shows the deployment status at overall and each object level.

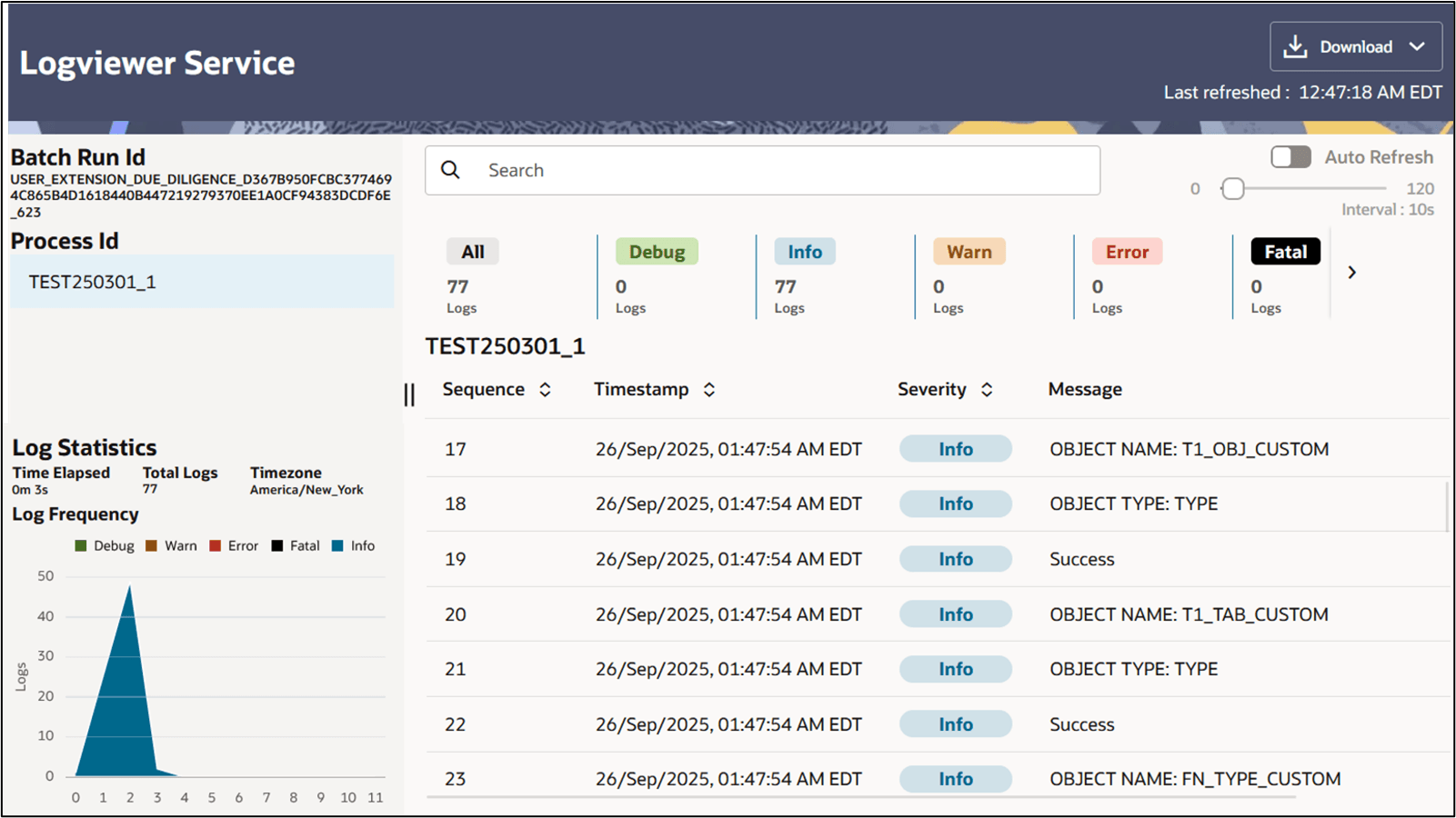

Figure 5-19 Log View window


Log View window
Submit for Due Diligence The Submit for Due Diligence button allows you to submit the selected archive for processing the archive diligence checks.
Deploy Archive The Deploy Archive button allows you to invoke the deployment process of the selected archive.
