Search Database View

Prerequisites: Predefined Database View

To search for a database view:

  • Enter the View Name or Pinned Objects in Search Criteria and click the Search icon.
  • Rows that contain the string you are searching for are fetched and displayed in the Database View Summary.
The Database View Summary displays the following information:
  • Add: Click the Add button on the page header to create a new database view.
  • Actions: Enables you to perform the following tasks.
    • Refresh: Retains the selected filters and refreshes the summary page with the latest status.
    • Reset: Clears the selected filters and refreshes the summary page.
    • Help: Redirects you to the latest documentation.
  • Delete: Enables you to select and delete one or more views in the table simultaneously.
  • Pin/Unpin: Enables you to pin/unpin the selected view.
  • Export: Enables you to download the summary page details in .CSV format.
  • Columns: Allows you to view the summary page data using a customized list of columns.

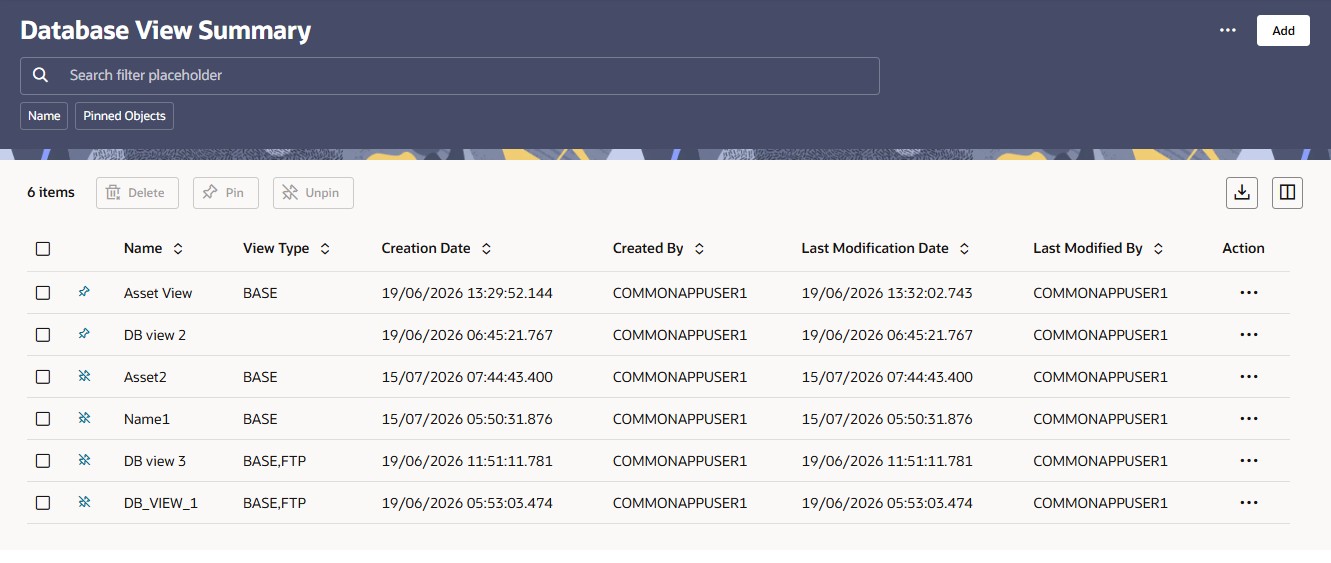

Figure 5-48 Database View Summary Screen


Database View Summary Screen

The Database View Summary table displays the following columns:

Table 5-19 Database View Summary

Column Description
Name The database view name. All views created through this page are prefixed with PBSM_View.
View Type

Indicates whether the view is classified. View Type is derived from the Register View and Primary Classification settings used when the view was created:

  • If Register View is left off, the view is a plain database view. View Type displays BASE, and the view is not available for selection as a classified source in consuming modules.
  • If Register View is enabled, the view inherits the classification of the Primary Classification (and its underlying table UDP) selected at creation. View Type displays BASE plus that classification — for example, BASE, FTP — indicating the view is registered under the FTP classification and is available for selection wherever that classification is used as a source.
Creation Date The date and time when the view was created.
Created By Displays the name of the user who created the view.
Last Modification Date The date and time when the view was last modified.
Last Modified By Displays the name of the user who last modified the view.
Action Click this icon to view a list of actions that you can perform on the view: View, Edit, Save As, Delete, Dependency Information.
