9.5.1.4 Verify the Run Execution

After the Run pipeline (process) execution, you can check the status of the execution.

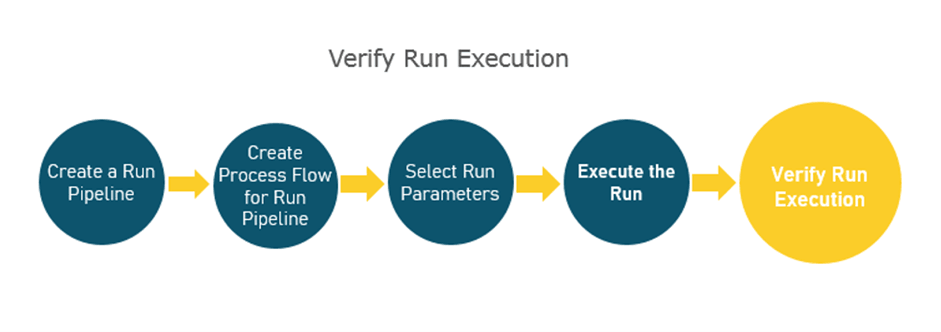

Figure 9-60 Verify Run Execution

Description of "Figure 9-60 Verify Run Execution"

To verify the Run execution, follow these steps:

1. To verify the Run execution status of the Balance Computation Management Ledger process, follow these steps:
   1. To open the Process Monitor page, in the Process Modeller page, click Process Flow Monitor icon or select Process Flow Monitor from the Process Modeller menu.

      Figure 9-61 Process Monitor Menu








   2. The Process Monitor page opens displaying all the Run instances corresponding to the Balance Computation Management Ledger process. In the Process Monitor page, for the required Run pipeline (process) that was executed, search the Run instance by Process ID, or by the Process Name Balance Computation Management Ledger, and select the process instance.

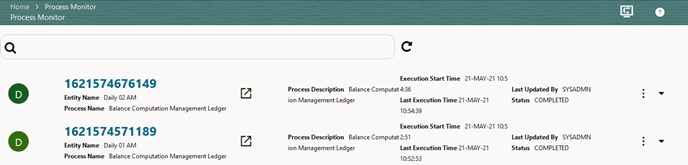

   Figure 9-62 Balance Computation Management Ledger process – Process Monitor Page – Select Job ID








2. A status page opens, which displays the execution status of the executed Run for the Balance Computation Management Ledger process. In this illustration, the Run for the Daily and Average Balance Computation is successfully executed.

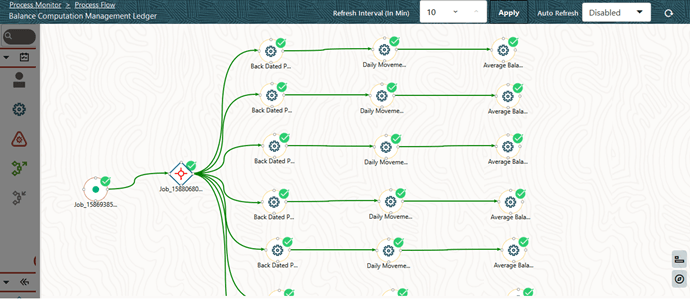

   Figure 9-63 : Balance Computation Management Ledger process – Run Execution status









   For information about the complete functioning of PMF, see the Oracle Financial Services Analytical Applications Infrastructure Process Modelling Framework Orchestration Guide Release 8.1.1.0.0.

   You can also check the execution status details in the Execution Summary page.
