Defining Elements of a Pattern Role

When creating a pattern role, you need to define several elements, which are described in the following sections.

Pattern Roles General Tab

The General tab enables you to specify elements for defining a role in your pattern.

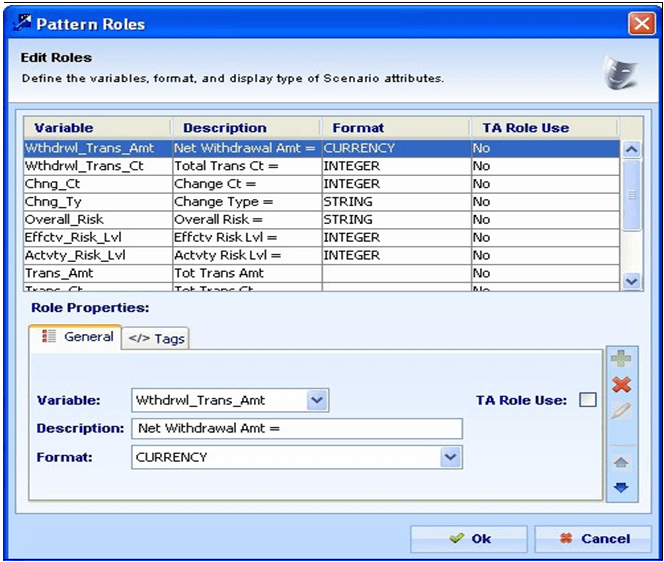

Figure 8-11 Pattern Roles Dialog Box—General Tab


Pattern Roles Dialog Box—General Tab

The Pattern Roles General tab contains the following elements:

  • Pattern Roles grid: Lists all roles defined for a rule scenario.
  • Variable: Enables you to select the variables you want to save to the KDD_BREAK_BINDING table. Clicking the column header orders the list of roles alphabetically by variable name.
  • Description: Enables you to specify any additional information to include in a role. Clicking the column header orders the list of roles alphabetically by description.
  • Format: Enables you to select the desired format and to define whether or not to display the specified variable. If you select the <NOT DISPLAYED> option in the drop-down list, the variable does not display in the Web Application.
  • TA Role Use: Enables you to specify if a pattern role variable should be available for the threshold analyzer role in Threshold Analyzer Roles dialog box. By default, the TA Role Use check box is clear.
  • Add: Saves the specified pattern role information.
  • Modify: Applies changes to a pattern role.
  • Delete: Deletes a pattern role. Clicking the Delete button removes the variable from the KDD_PT- TRN_ROLE table, and the associated variable from the KDD_TA_ROLES table on the condition that no other patterns for a scenario should have a pattern role record for that particular variable.
  • Move Up: Changes the order of a role by moving the selected role up.
  • Move Down: Changes the order of a role by moving the selected role down.
  • OK: Saves, changes, and closes the dialog box.
  • Cancel: Cancels any changes and retains the previously saved role information.
The following table defines the most commonly used pattern role format field options.

Table 8-4 Pattern Role Format Field Options

Format Option Description
<NOT DISPLAYED> Does not display the variable in the Web Application, when selected.
STRING Does not apply formatting to the value returned from the database. This format is also useful for numbers that should not have thousands separators, for example, numeric account numbers.
INTEGER Applies thousands separators to whole numbers.
REAL2 Applies thousands separators to real numbers, truncating to two digits of fractional data.
REAL5 Applies thousands separators to real numbers, truncating to five digits of fractional data.
$.00 Applies thousands separators and a currency symbol, for example,$, to a number. Fractions are displayed. For example, a positive number displays as $1,234.56 and a negative number displays as ($1,234.56).
$ Applies thousands separators and a currency symbol to a number. Fractions are rounded to the nearest whole number. For example, positive numbers display as $1,234 and negative numbers display as($1,234).
$K Applies thousands separators and a currency symbol to a number. Fractions are rounded to the nearest whole number. If the number is 1,000,000 or greater, the number is rounded to the nearest thousand, and the final three digits are replaced with the letter “K.” For example, positive numbers display as $1,234 or $2,346K for $2,345678.90 and negative numbers display as ($1,234) or ($2,346K) for -$2,345678.90.
CURRENCY Applies the appropriate currency format (including base currency) to a value.
MMDDYY Displays the short form of the date (for example, 05/18/04).
MMDDYYYY Displays the long form of the date (for example, 05/18/2004).
DATETIME Displays the short date format and time format in the 24-hour clock(for example, 05/18/04 23:59:59).
HHMMSS Displays the long time in 24-hour format. The expected input is an integer that represents a number of seconds. For example, 93599 seconds is displayed as 25:59:59.
% Displays the data as a percentage.
ALT_CUR Used for cases where all highlights/roles are of the same currency, but NOT base currency. The format for the amount(s) should be ALT_CUR. Then, the scenarios will record an additional binding with binding name Alt_Currency_Code that holds the currency code. The highlights generator would then/take find the value from the Alt_Currency_Code binding and use it to format all of the bindings with format ALT_CUR. For example: OrderPrice role with format ALT_CUR and Alt_Currency_Code binding with value as ISSUE_CRNCY_CD from pattern, let's say value is EUR. Thus OrderPrice will be displayed as xxx EUR. Here xxx is the value coming from pattern.
REF_CUR Used for cases where all highlights/roles are not of the same currency (including base currency) or different bindings having different currencies to display, use a format code REF_CUR for the amount, and then have an additional binding with the same name, but with _CUR on the end and contain the currency to be used. For example, define TradePrice and ActivityPrice roles with format REF_CUR and TradePrice_CUR, and ActivityPrice_CUR binding to hold the Currency to be used for the above, say EUR and USD respectively. Thus they will be displayed as TradePrice: xxx EUR & ActivityPrice : zzz USD.Here xxx and zzz are the values coming from pattern.
HHMMSS_PT Displays the long Time format in 24-hour clock with milliseconds precision. For example, the display of 103001500 will be as 10:30:01:500

To define elements of a pattern role, follow these steps:

  1. From the Windows menu of the DataSet Editor, select Rule Patterns.

    The Rule Scenario Editor window displays.

  2. From the scenario navigation tree area, navigate to the desired pattern element.
  3. 3. In the Pattern area, click Edit Roles.

    The Pattern Roles dialog box displays.

  4. Select the desired variable from the Variable drop-down list.
  5. Type the text you want associated with this role in the Description field.
  6. Click the arrow of the Format drop-down list to identify the highlights from other pattern roles, and to define the display of the pattern roles on the Web Application pages (refer to above table for details about the options for this field).
  7. Select the TA Role Use check box if you want to assign pattern role variable to a threshold analyzer role.
  8. Click Ok.
