5.7.2 Ending a Batch Run

To end the batch run, follow these steps:

1. Login as the Administrator. The OFSAAI Applications page is displayed.
2. Click Trade Based Anti Money Laundering.
3. In the Navigation List, select Operations, then click Run Rule Framework.
4. Click Process. The Process page is displayed with the available applications.

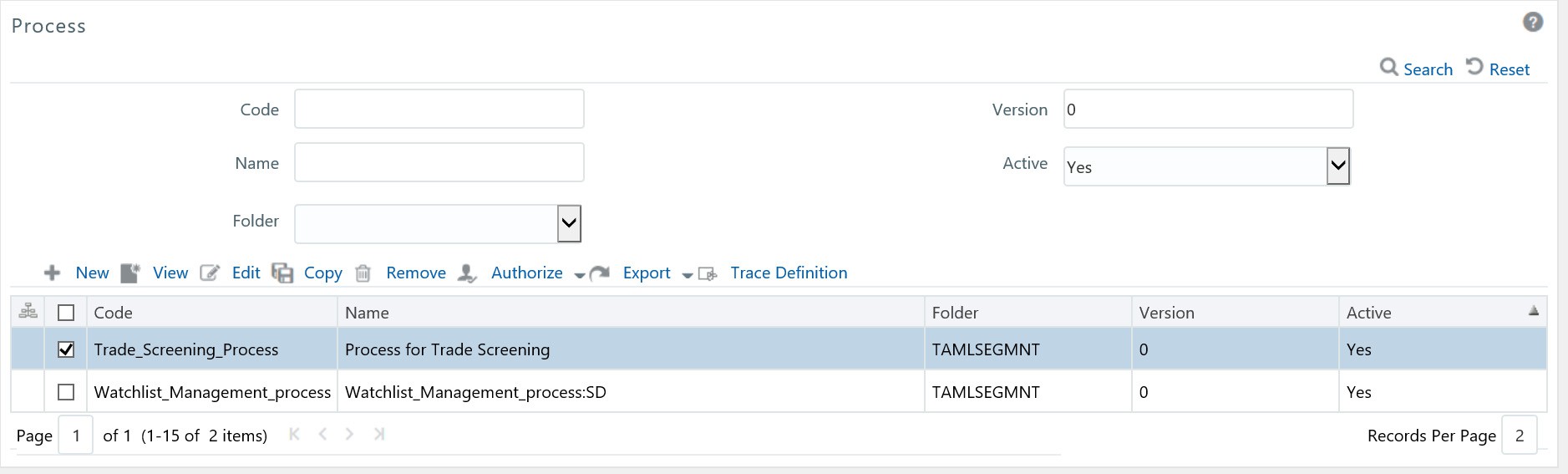

   Figure 5-23 Process page





   Description of "Figure 5-23 Process page"



5. Select an application from the Code column and click Edit. The Process Definition page is displayed with the process or processes associated to this application.
6. Select an End Batch, for example BD_TBAML_End_E2E.
7. Click Edit. The Process Definition page is displayed.
8. Click Component. The Component Selector window is displayed.

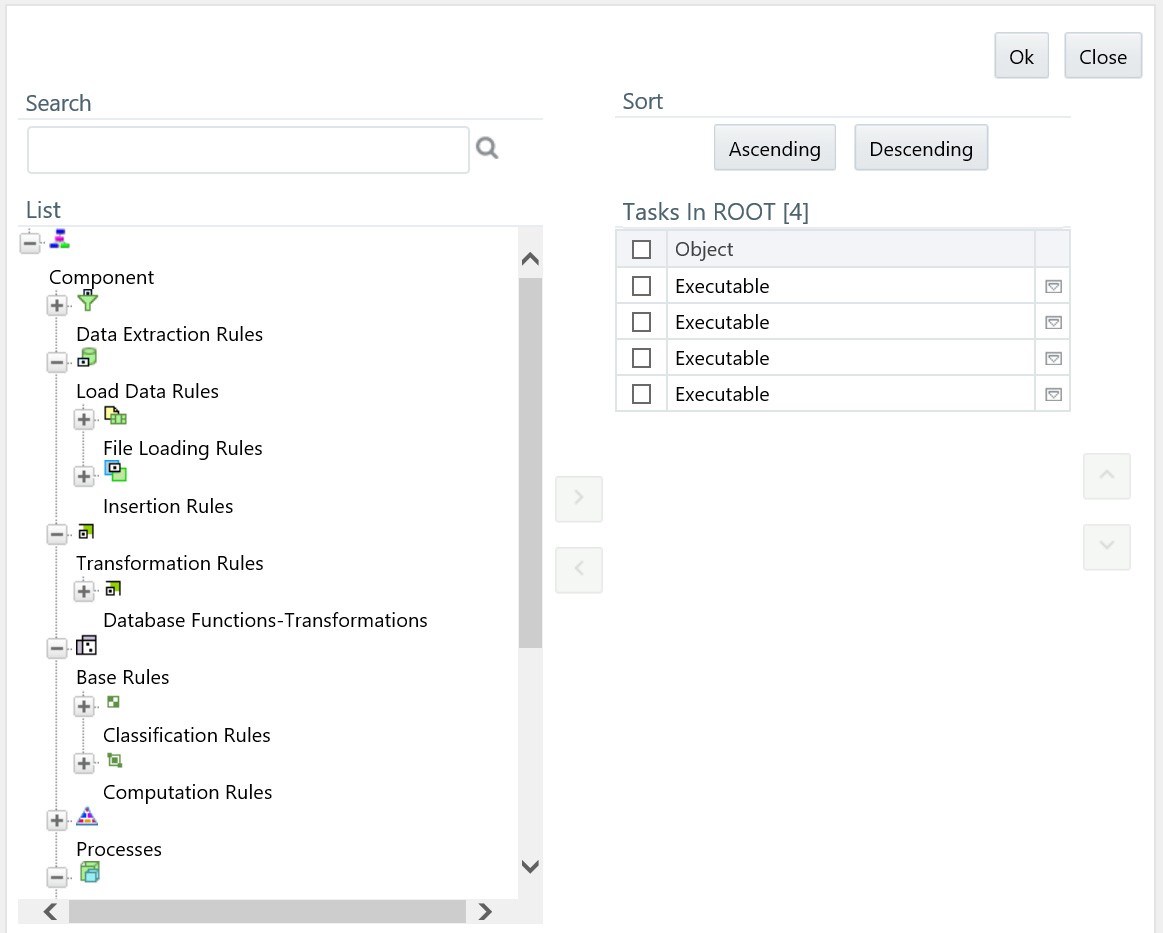

   Figure 5-24 Component Selector page





   Description of "Figure 5-24 Component Selector page"



9. Click Parameters option. The Parameters window is displayed. The following are default parameters:
   "","","ALL","END",""

   • Source Batch for Correlation
   • ALL: is the component. Modify the component if required.
   • END: is used to end the batch.
10. Modify the parameters and click OK.
