5.7.3 Executing a Batch Run

This section explains how to execute the batch run.

To access and execute the batch run, follow these steps:

1. Login as the Administrator. The OFSAAI Applications page is displayed.
2. Click Trade Based Anti Money Laundering.
3. In the Navigation List, select Operations, then click Run Rule Framework.
4. Click Run. The Run page is displayed with the available batch jobs.

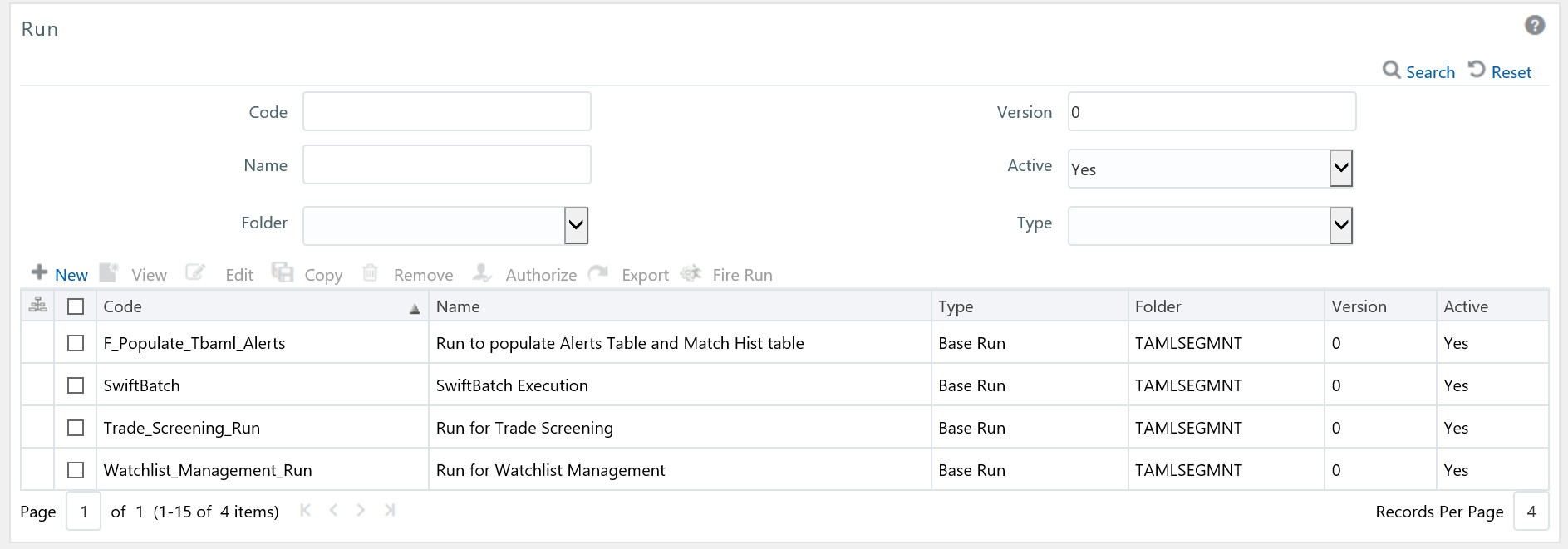

   Figure 5-25 Run page





   Description of "Figure 5-25 Run page"



5. Select the batch job that is to be executed and click Fire Run. The Fire Run window is displayed.

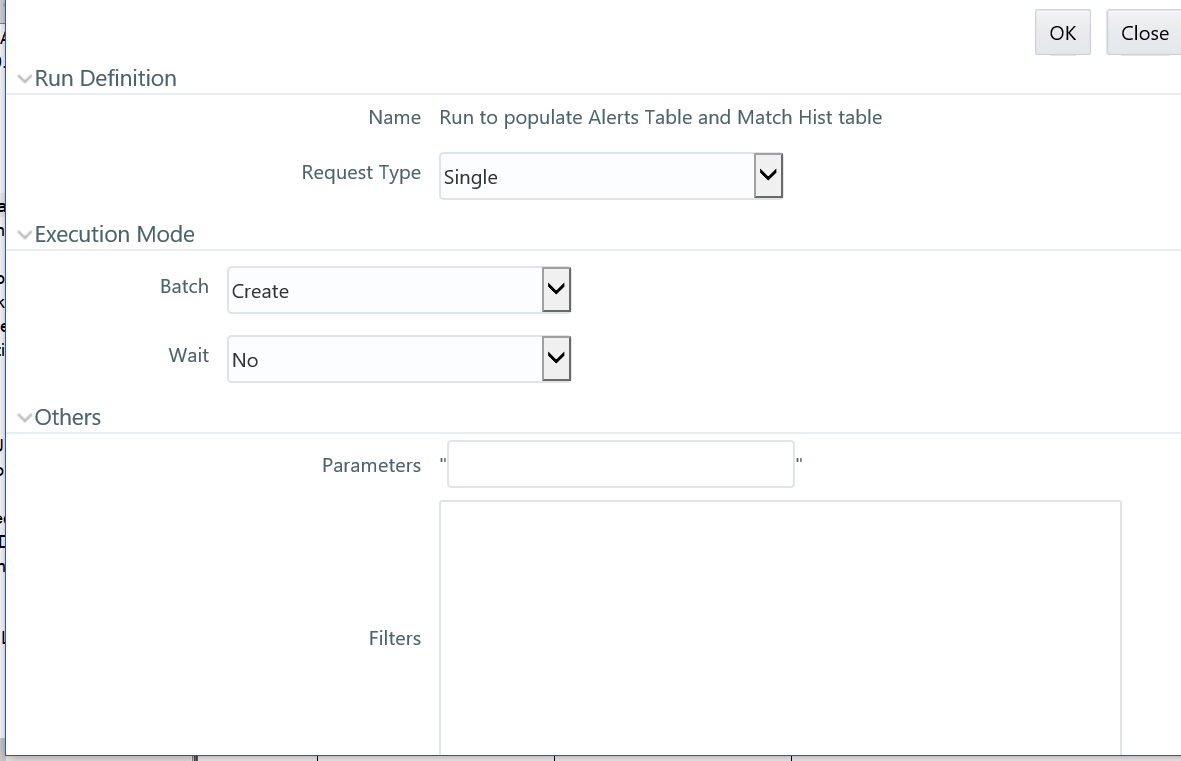

   Figure 5-26 Fire Run





   Description of "Figure 5-26 Fire Run"



6. Enter the following details:

   Table 5-7 Adding Fire Run Details

   Field	Description
   Request Type	Select Request Type based on the following options: Single: If the batch must be executed once. Multiple: If the batch must be executed multiple times at different intervals.
   Batch	Select Batch. It has the following options: Create Create & Execute From these options, select Create & Execute.
   Wait	Select Wait. It has the following options: Yes: This executes the batch after a certain duration. Enter the duration as required. No: This executes the batch immediately.
   Parameters	Enter the parameters for this batch.
   Filters	Enter the filter details. Note: $MISDATE option can be used to execute the run for that particular day. The format for it to enter in the filter details is: to_date(<ACTIVITY_TABLE_NAME>.<ACTIVITY_DT_COL>)=$MISDATE Note: For $MISDATE option: For either Date or Timestamp datatypes, to_date is mandatory for the filter. Activity Table Name and Activity Column Name should be in capital.

7. Click OK to run the batch. The following message is displayed: Batch Execution is in progress.

   Note:

   If batch execution fails, then see the batch details in Batch Monitor. For more information on Batch Monitor, see the Oracle Financial Services Analytical Applications Infrastructure User Guide.
