7.7 Managing Data Retention Manager
TBAML relies on Oracle partitioning for maintaining data for a desired retention period, providing performance benefits, and purging older data from the database. The data retention period for business and market data is configurable. Range partitioning of the tables is by date.
The Data Retention Manager enables you to manage Oracle database partitions and indexes on a daily, weekly, and/or monthly basis (See Managing Database Activities with Utilities figure). This utility allows special processing for trade related database tables to maintain open order, execution, and trade data prior to dropping old partitions. As administrator, you can customize these tables.
The utility accommodates daily, weekly, and monthly partitioning schemes. It also processes specially configured Mixed Date partitioned tables. The Mixed Date tables include partitions for Current Day, Previous Day, Last Day of Week for weeks between Current Day and Last Day of Previous Month, and Last Business Day of Previous Two Months.
- Perform any necessary database maintenance activities, such as rebuilding global indexes.
- Add and drop partitions, or both, to or from the date-partitioned tables.
Data Retention Manager provides a set of SQL procedures and process tables in the Behavior Detection database. A shell script and a configuration file that contain the various inputs set the environment that the utility uses.
Directory Structure
Table 7-16 Data Retention Manager Directory Structure
| Directory | Contents |
|---|---|
| bin/ | Executable files, including the
run_drm_utility.shshell script.
|
| lib/ | Required class files in .jar format.
|
| mantas_cfg/ | Configuration files , such as install.cfg and
categories.cfg, in which you can configure
properties and logging attributes.
|
| logs/ | File <OFSAAI Installed Directory>/database/db_tools/
logs/DRM_Utility.log that the utility generates during
execution.
|
Logs
Oracle stored procedures implement Data Retention Manager and conducts some logging
on the database server. A configuration parameter in the
install.cfg file controls the path to which you store the logs
on the database server.
As the Data Retention Manager performs partitioning and indexing activities, it
generates a log that it enters in the <OFSAAI Installed
Directory>/database/db_tools/logs/DRM_Utility.log file (the logging
process time-stamps all entries). The log file contains relevant information such as
status of the various processes, results, and error records.
You can modify the current logging configuration for the Alert Purge Utility in the <OFSAAI Installed Directory>/database/db_tools/log4j2.xml files. For more information about logging in these configuration files, refer to MManaging Common Resources for Batch Processing Utilities, and Appendix A, Logging, for more information.

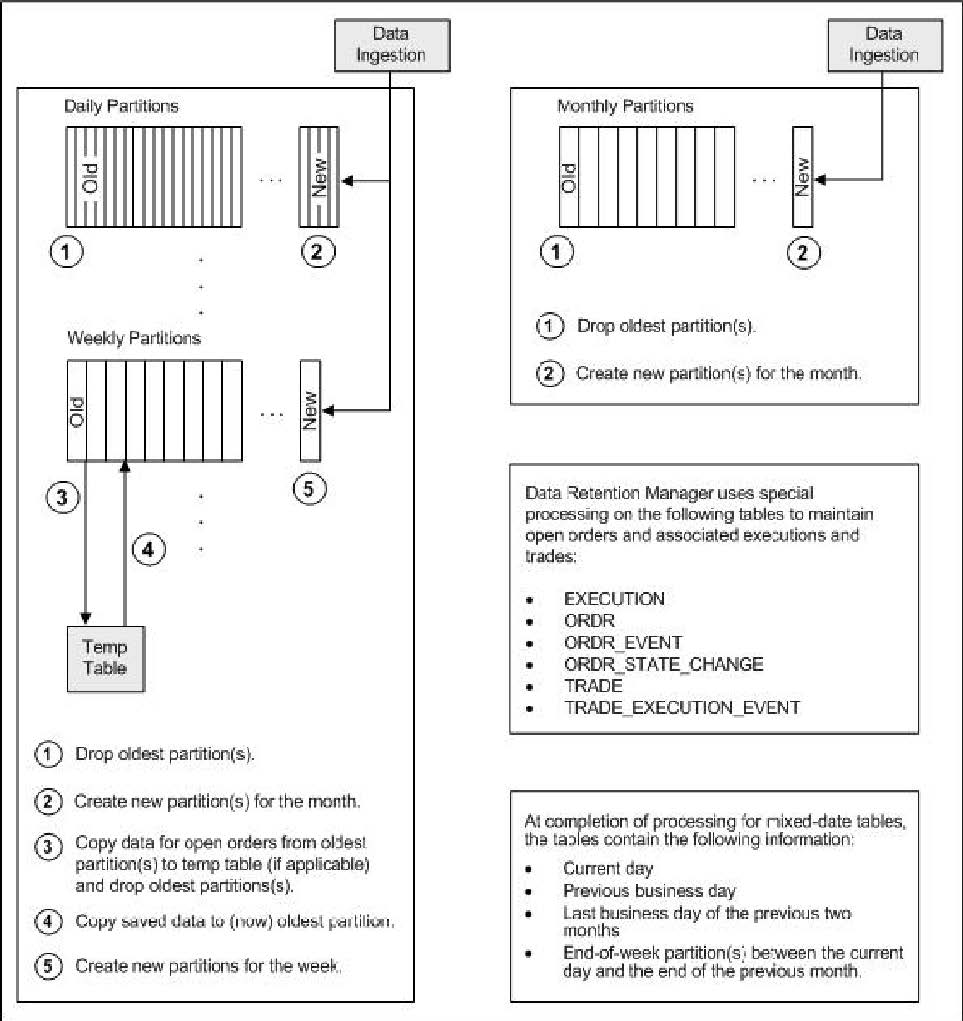

Processing Flow
